305m CCA UTP fluke test network cable room 23 AWG CAT6 LAN cable
▌ Product description

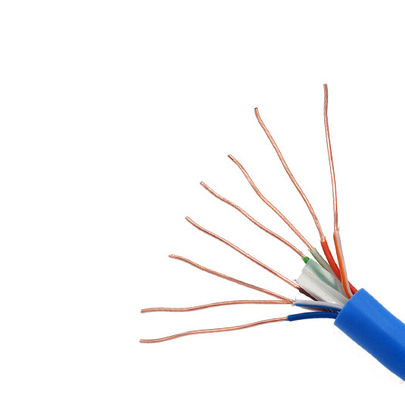

Category VI 4-Pair cat6utp cable, also known as category VI unshielded twisted pair, adds an insulated cross skeleton, places the four pairs of twisted pair wires in the four grooves of the cross skeleton, and the diameter of the cable is thicker. 250MHz broadband is provided within 90m, and the typical application rate is 1000Mbps.
▌Construction
▌Standard / Certificate
▌Appliacation
The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-6-1
▌Parameter
REACTION TO FIRE
| CHARACTERISTIC | IEC STANDARD | EN STANDARD | CPR RATING |
| Classification / EuroClass | - | EN 13501-6 | Cca s1a d1 a1 |
| Single Cable Flame Rating | IEC 60332-1-2 | EN 60332-1-2 | Pass |
| Smoke Emission | IEC 61034 | EN 61034 | Pass |
| Acid Gas Emission | IEC 60754 | EN 60754 | Pass |
PRIMARY ELECTRICAL PARAMETERS
| CHARACTERISTIC | SPECIFICATION | TYPICAL PERFORMANCE @ 20°C |
| Conductor Loop Resistance | Max 19 Ω/100m | 16 Ω/100m |
| Conductor Resistance Unbalance | Max 2% | 0.1% |
| Insulation Resistance | >5GΩ.km | >50GΩ.km |
| Dielectric Strength | 2500 Vdc/2secs | Pass |
SECONDARY ELECTRICAL PARAMETERS
| CHARACTERISTIC | SPECIFICATION | TYPICAL PERFORMANCE @ 20°C |
| Velocity of Propagation | <534nsec/100m @ 100MHz | 505nsec/100m @ 100MHz |
| Delay Skew | Max 45nsec/100m @100MHz | 30nsec/100m @ 100MHz |
| Mean Characteristic Impedance | 100Ω +/- 5Ω @ 100MHz | 100Ω ± 3Ω @ 100MHz |
| Transverse Conversion Loss (TCL) | ≥50-10log(f)dB | 61dB @ 10MHz |
ELECTRICAL PERFORMANCE
| Frequency (MHz) | 1 | 4 | 10 | 20 | 100 | 200 | 250 | |
| Insertion Loss (dB/100m) max | Standard | 2.0 | 3.8 | 6.0 | 8.5 | 19.8 | 29.0 | 32.8 |
| NEXT (dB) min | Standard | 74.3 | 65.3 | 59.3 | 54.8 | 44.3 | 39.8 | 38.3 |
| PSNEXT (dB) min | Standard | 72.3 | 63.3 | 57.3 | 52.8 | 42.3 | 37.8 | 36.3 |
| ACR-F (dB) min | Standard | 67.8 | 55.8 | 47.8 | 41.8 | 27.8 | 21.8 | 19.8 |
| PSACR-F (dB) min | Standard | 64.8 | 52.8 | 44.8 | 38.8 | 24.8 | 18.8 | 16.8 |
| Return Loss (dB) min | Standard | N/A | 23.0 | 25.0 | 25.0 | 20.1 | 18.0 | 17.3 |
INSTALLATION
| Temperature (Installation) | 0°C to +50°C |
| Temperature (Operation) | -20°C to +75°C |
| Max Tensile Load (Installation) | 10kg |
| Segregation Class | Class B |
| Min Bend Radius (Installation) | 8 x Outer Diameter |
| Min Bend Radius (Operation) | 4 x Outer Diameter |
| Field Test NVP Value | 0.66 |
▌STANDARD PACKAGING SPECIFICATIONS – REELS
|
Part Number |
Packaging Length (m) |
Color |
Nominal Cable Diameter (mm) | Nominal Cable Weight (kg/km) |
Reel Size Flange Diameter x Width (mm) |
Gross Weight (kg/Item) | Items Per Pallet |
| C6U-Cca-500GN | 500 | Green† | 6.15 | 44.9 | 400 x 310 | 24.5 | 18 |
| C6U-Cca-1000GN | 1000 | Green† | 6.15 | 44.9 | 465 x 390 | 47.9 | 6 |
▌STANDARD PACKAGING SPECIFICATIONS - BOXES
|
Part Number |
Packaging Length (m) |
Color |
Nominal Cable Diameter (mm) | Nominal Cable Weight (kg/km) | Box Size L x W x H (mm) | Gross Weight (kg/Item) | Items Per Pallet |
| C6U-Cca-Rlx-305GN | 305 | Green† | 6.15 | 44.9 | 435 x 265 x 405 | 14.4 | 21/14†† |
 |
|
▌Panking
| |
|
Cable weight | Gross weight | |||||
| 9.3kg | 10kg | |||||||
| Box size (CM) | Specifications | |||||||
| 21.5×35×35 | 305m/box | |||||||
