Opgw Aeirlal Wire 4 Core Single Mode G652d OPGW Fiber Optic Cable
▌Product overview
OPGW optical cable makes use of the refractive index difference between core and cladding materials to transmit light energy in optical fiber, which has become a major revolution in the history of communication. Optical fiber and cable are light in weight and small in size. They have been adopted by power system to transmit dispatching telephone, telecontrol signal, relay protection, TV image and other information between substation and central dispatching station. In order to improve the stability and reliability of optical fiber and cable, a composite structure of optical fiber and transmission line phase conductor, overhead ground wire and power cable has been developed abroad. OPGW optical cable is more reliable, stable and firm because it is wrapped by metal conductor. Due to the combination of overhead ground wire and optical cable, compared with other optical cables, it can not only shorten the construction period but also save the construction cost.
▌Application
OPGW optical cable plays an important role in urban construction, and uses advanced science and technology to create a new generation of cloud computing, Internet and other information development mode, so as to provide various subsystem operation for urban construction. The construction of optical cable can lay a good information foundation for the information development of urban construction, and help to form information infrastructure, physical infrastructure and social infrastructure. On this new intelligent infrastructure, it is like installing a network nervous system for the city to promote the cooperation between various components and make the resource allocation more reasonable.
| Items |
Opgw Aeirlal Wire 4 Core Single Mode G652d OPGW Fiber Optic Cable |
| Structure | Stainless steel loose tube |
| Feature | The OPGW uses stainless steel loose tube structure, increasing its reliability and |
| the performance of temperature-resistant. | |
| The OPGW meets the requirement of large fiber line application. | |
| The OPGW are specially applied for the optical communication system | |
| while installing the electric transmission line. | |
| Project design (sag-tension calculation, short circuit current, ADSS hardware fittings calculation) | |
| Excellent stainless steel tube stranding technology make the fibers have | |
| good secondary excess length and allow the fibers free movement in the tube. | |
| Which keeps the fiber stress-free while the cable is subjected to longitudinal stress. | |
| Cable diameter and weight approximate with another ground wire. Less additional load to tower, | |
| high tensile strength. | |
| ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity | |
| and mechanical tensile strength. |
▌Standards
| ITU-TG.652 | Characteristics of a single mode optical fiber |
| ITU-TG.655 | Characteristics of a non-zero dispersion -shifted single mode fibers optical |
| EIA/TIA598 B | Col code of fiber optic cables |
| IEC 60794-4-10 | Aerial optical cables along electrical power lines-family specification for OPGW |
| IEC 60794-1-2 | Optical fiber cables -part test procedures |
| IEEE1138-2009 | IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines |
| IEC 61232 | Aluminum -Clad steel wire for electrical purposes |
| IEC60104 | Aluminum magnesium silicon alloy wire for overhead line conductors |
| IEC 61089 | Round wire concentric lay overhead electrical stranded conductors . |
▌Typical design for Double Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-96[121.7;42.2] | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127[141.0;87.9] | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127[77.8;128.0] | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |

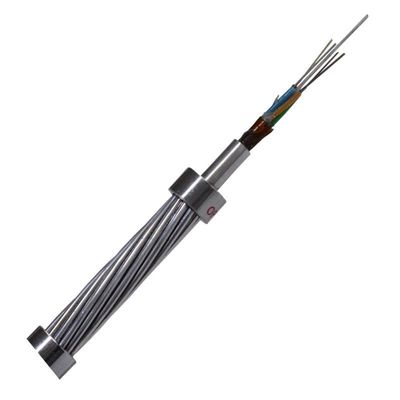

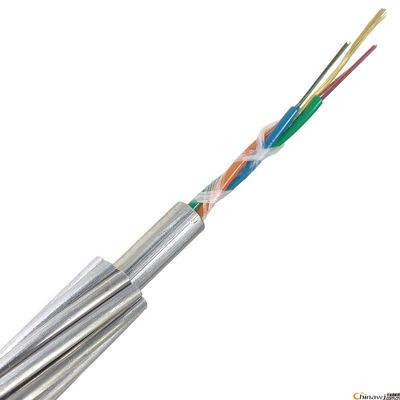

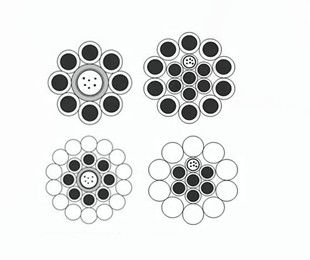

▌Product diagram
 |
|
▌Packaging
|
|
1. Standard Packaging: b. Standard Code(Product Type, Fiber Type,Fiber Count) |
Our Service: 1. We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2. We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3. Please send us inquiry for more products info and we will give you feedback in 12 hours. |
