▌Product Description

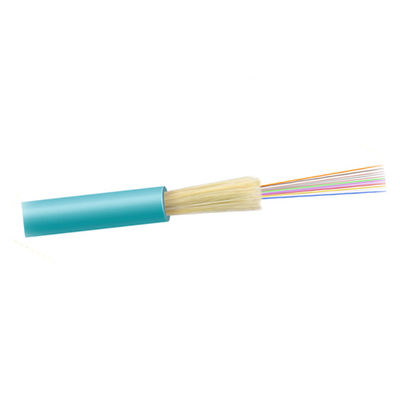

GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fibre as optical communication
medium, the tight buffer fibre wrapped with a layer of aramid yarn as strength member units, and the cable is completed
with pvc or LSZH(Low smoke ,Zero haiogen, Flame-retardant) jacket.
▌Products Features
Application:
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings(FTTX)
▌Fiber Code
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
▌Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850 | ≥500MHZ·km | ≥200MHZ·km | ||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
 |
|
▌Application scenario
|
|
|
|
|
▌FAQ
|
1. How many years have you been in the field of fiber optics ? Since 1998. 2. Are you the real manufacturer? Yes. We are the real manufacturer with more than 110 staff. 3. Which kind of certification you have ? ISO9001, SGS, RoHs. 4. Can you accept small order? Yes, small order is available .We support new project of our customers as we know business is always from small order. 5. Can you supply customized products and logo? Yes. We supply OEM&ODM service. You can send us your drawing. 6. What about your annual production capacity? Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM; FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year; Patch Cord/Pigtails, it is 12,400,000 Pieces per year. 7. What is your delivery time? Usually within 2-3 working days 8. What is your payment way? T/T, L/C, Western Union and Paypal. 9. What is your warranty period? 25 years for fiber optic cable |
