2 core FRP GJYXCH bow-type drop cable Black FTTH Fiber Optic Cable
Description

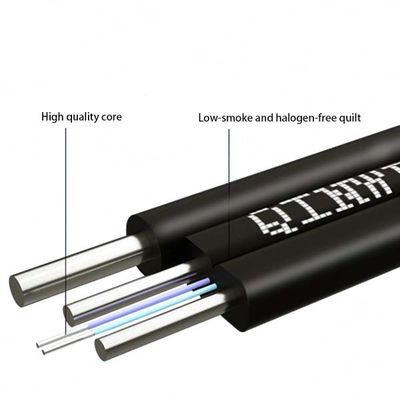

The GJYXCH FTTH fiber optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
Features
1. Compact structure of protable, convenient for indoor wiring.
2. Excellent resistance to lateral pressure protection design.
3. Soft, flexible, easy to splice, and high practicability.
4. Environmental protection. Low smoke, zero alogen and flame retardant sheath.
Applications
1. Used in indoor outdoor cabling,especially used for FTTH.
2. Used as access building cable.
Cable Parametres
| Model No. | Fiber count (core) | Cable diametre (mm) | Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N) | Bending Radius Static/Dynamic (mm) |
| GJYXCH | 1 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 4 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
We produce and test cable comply with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Why Choose Us?
Production and Qulaity Test
Packing and Delivery
|
|
FAQ
Q1: Where is your factory ?
A1: Our factory is located in Deyang City, Sichuan Province, China.
Q2: How long has your company been doing this?
A2: More than 31 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3: How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5: Do you accept the OEM order and how many is the MOQ?
A7: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
