Cat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPE

50 Rolls
MOQ
Negotiation
Price
Cat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPE
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Cat 6,cat6 Network Cable
Jacket: PVC PE LSZH
Application: Telecommunication,Computer/cabling System/multimedia,patch Cord Fobelec,Computer Networks
Conductor: 23AWG Or Custmozied TC,BC/CCA/CCS
Package: 305meters Pull Box
Jacket Color: Can Be Custom-made,White/Grey/Blue Or Other Choices
High Light:

305m Ethernet Lan Cable

,

Indoor UTP Ethernet Lan Cable

,

cat6 ethernet cable lan utp cat 6

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: CAT6 UTP
Payment & Shipping Terms
Packaging Details: 305 meter/roll
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram, D/P
Supply Ability: 5000 Rolls/Day
Product Description

305m Cat6 UTP Lan Cable Indoor 23AWG 0.57mm 99.9% Oxygeen-Free Copper HDPE





Applications



Computer network cabling project

  • Broadband network communication
  • Ethernet network
  • Audio and data transmission
  • Ideal for voice, data, network installations, camera installations


Advantages



Competitive factory

  • OEM and ODM services are provided
  • Prompt delivery
  • Pass fluke test



Data Sheet



Construction Characters
Conductor
Material
99.9% Oxygeen-free Copper
Size
23AWG X 4P
Construction
1/0.57±0.005mm
Insulation
Material
HDPE
Diameter
1.01±0.01mm
Colors
Blue-White/Blue
Orange-White/Orange
Green-White/Green
Brown-White/Brown
Filler
Filler
PE
Jacket
Material
PVC
Diameter
6.00±0.20mm
Colors
Per request
Rip Cord
Nylon



Temperature Rating
-20℃ to 60℃
Dielectric Breakdown
2500V
DC Resistance/Unbalance
28.6Ω/1000’Max/5% Max
Characteristics Impedance
100Ω
Other Electric Performance
Frequency
Attenuation
Return Loss
Pair to Pair
(MHz)
(dB/100m)
(dB/100m)
Next
ELFEXT

(dB/100m)
(dB/100m)
1
2
20
75.3
63.8
4
3.8
23
66.3
51.7
8
5.3
24.5
61.8
45.7
10
6
25
60.3
42.8
16
7.6
25
57.2
39.7
20
8.5
25
55.8
37.7
25
9.5
24.3
54.3
35.8
31.25
10.7
23.6
52.9
33.9
62.5
15.4
21.5
48.4
30
100
19.8
20.1
45.3
29
155
25.2
18.8
42.4
28.1
200
29
18
40.8
27.8
250
32.9
17.3
39.3
23.8
400
40.8
16.9
39.3
18.8

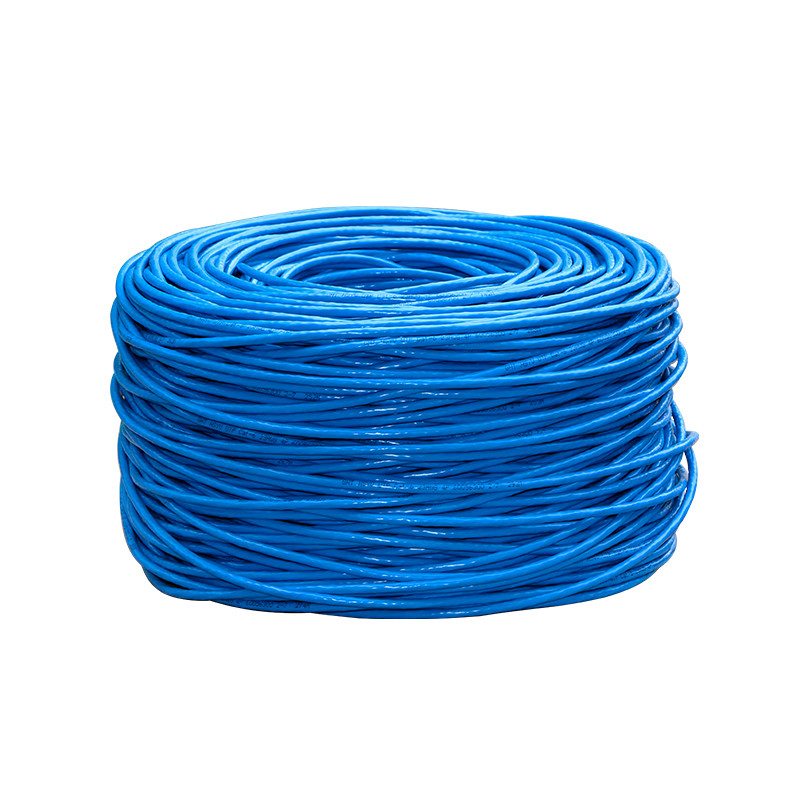

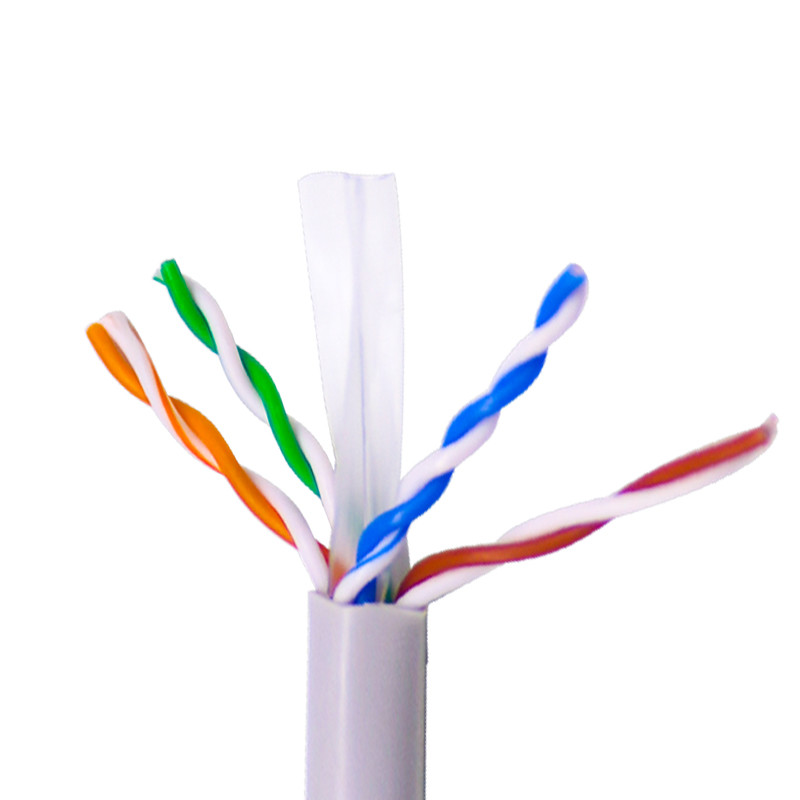

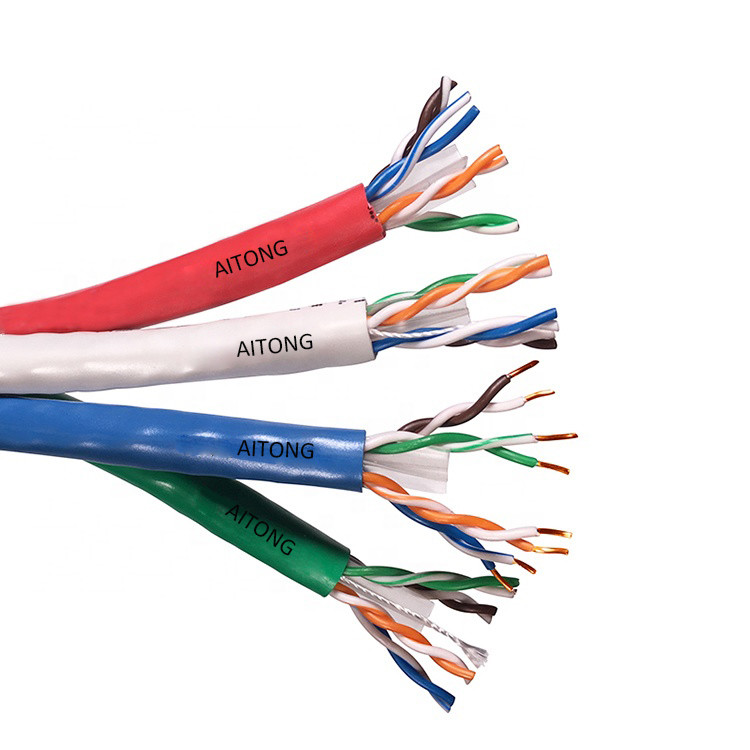

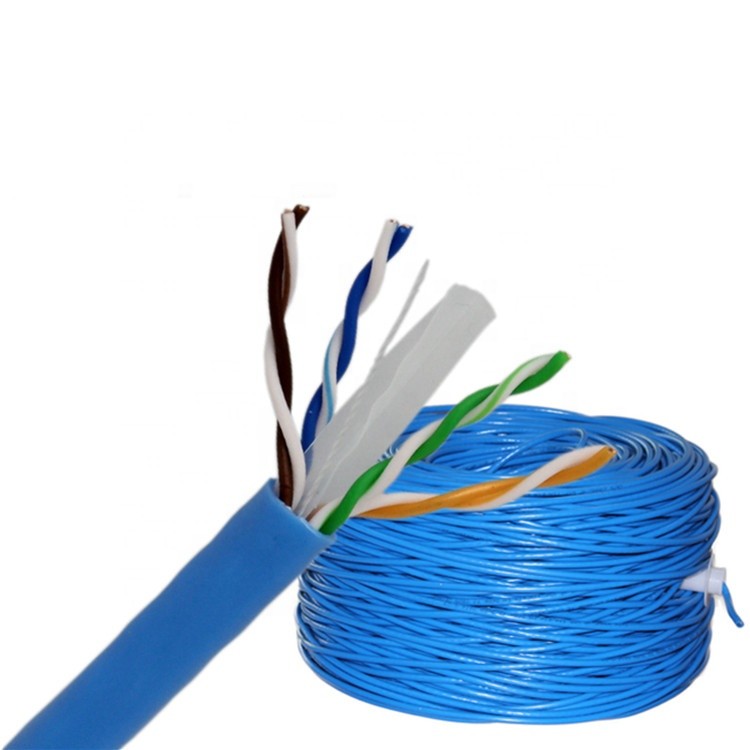

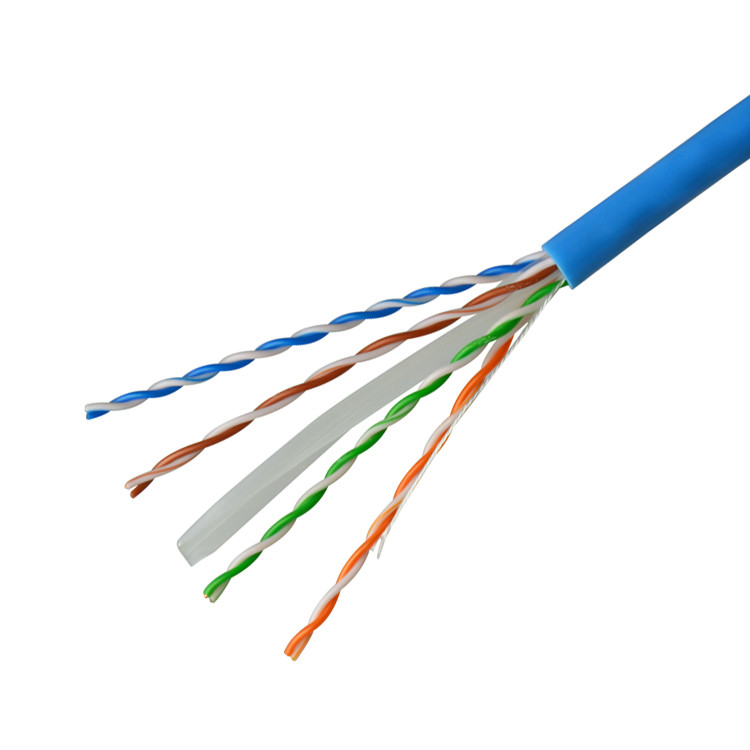

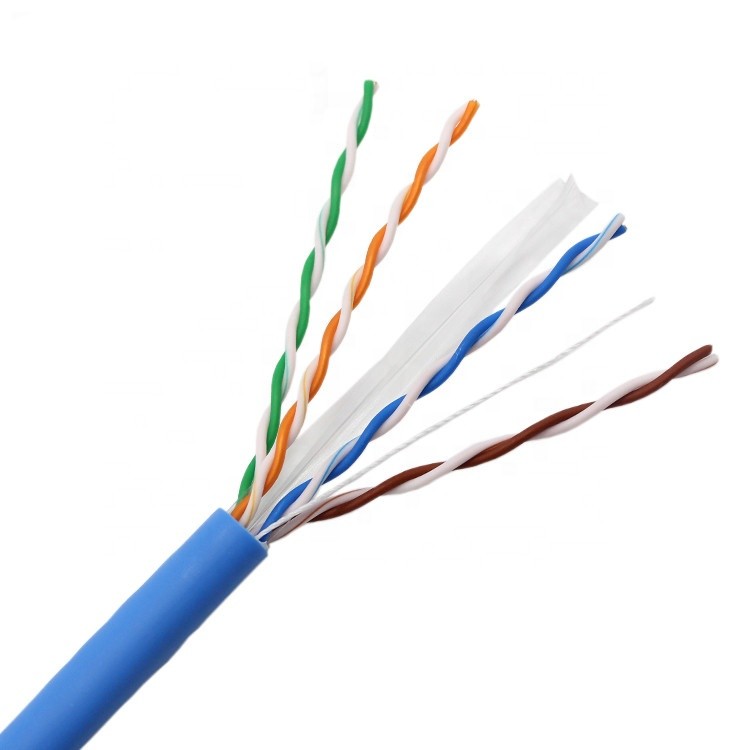

Detail Images



Cat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPE



Cat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPE

Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.

DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.





Cat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPECat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPE



PACKING

Cat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPECat6 Indoor UTP Ethernet Cable 23awg 99.9% Oxygeen Free Copper HDPE



FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2: Our factory are located in Deyang city.
You can fly to Sichuan international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5: What payment method do you accept?
A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? How long do you need to prepare my goods?
A8: Delivery (no more than 200 rolls) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
