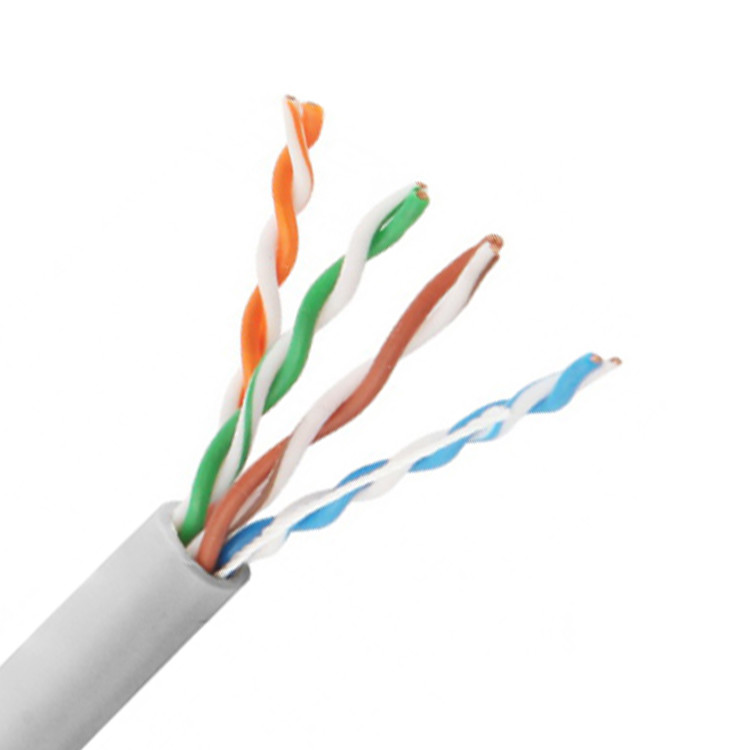

Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable

100 winding box
MOQ
Negotiate
Price
Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Origin: Sichuan,china
Brand: Aitong
Model: UTP Category 5 Outdoor Cable
Minimum Order Quantity: 100 Pieces
Price: As Required
Packing Details: 305 M / Winding Box
Delivery Time: 7-15 Working Days
Term Of Payment: Letter Of Credit, Telegraphic Transfer
Supply Capacity: 50000 M / Day
High Light:

Cat 5e Ethernet LAN Cable

,

UTP Ethernet LAN Cable

,

Cat 5e Unshielded Ethernet Cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: cat-5e-UTP
Payment & Shipping Terms
Packaging Details: 425mm*425mm*225mm
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 winding box day
Product Description

Cat 5e UTP Outdoor With Messenger Ethernet LAN Cable​



Product description



Cat 5eUTP Outdoor with Messenger Ethernet LAN Cable unshielded Ethernet cable is a cable that appears after improving some performance of existing Cat 5 shielded twisted pair. Performance parameters such as near end crosstalk, attenuation crosstalk ratio and return loss have been improved. Super class 5 twisted pair also adopts 4 pairs of winding wires and 1 anti stay wire.




Construction



1. Conductor material:Solid bare copper 24 AWG

2. Insulation material: HDPE (High density Polyethylene)

3. Separator: cross filler

4. rip cord

5.Outer sheath material: pvc



Appliacation



1. Fully comply with ANSI / tia-568b. 2 and ISO 11801, Second Edition, class E 5E channel standard.

2. Fully comply with the requirements of ANSI / tia-568b. 2 and IEC 61156-5 class 5E component standards;

3. The performance of this product meets the requirements of IEEE 802.3af and IEEE 802.3at for POE applications.

4. The cable length mark is easy to identify the remaining cables, which is more convenient and fast during construction.

5. Color availability: provide other cable colors.





▌Parameter

Model Cat 5eUTP Outdoor Lwith Messenger Ethernet LAN Cable
Conductor BC/CCA/CCAG
Conductor Size  24 AWG
Number of Conductor 4 Pairs / 8 Cores
Insulation HDPE
Outer Jacket PVC / LSZH
PVC Jacket Color As your request
Certification CE, RoHS, REACH, UL


Electrical characteristics (20 ° C)



Frequency Attenuation(Max) PS NEXT (Min) NEXT(Min) PS ELFEXT (Min) ELFEXT (Min) TCL(Min) EL TCL(Min) RL(Min)
MHz dB dB dB dB/100m dB/100m dB dB dB
4 4.05 53.27 56.27 48.96 51.96 44 23 23.01
8 5.77 48.75 51.75 42.94 45.94 41 16.9 24.52
10 6.47 47.3 50.3 41 44 40 15 25
16 8.25 44.24 47.24 36.92 39.92 38 10.9 25
20 9.27 42.78 45.78 34.98 37.98 37 9 25
25 10.42 41.33 44.33 33.04 36.04 36 7 24.32
31.25 11.72 39.88 42.88 31.1 34.1 35.1 / 23.64
50 15.07 36.82 39.82 27.02 30.02 32 / 22.21
62.5 16.99 35.36 38.36 25.08 28.08 30 / 21.54
100 21.98 32.3 35.3 21 24     20.11



▌Physical characteristics


Conductor diameter 0.50 mm (24 AWG)
Insulation diameter 0.90 mm
Jacketed tiknes 0.52 mm
Cable diameter 5.0 mm
Distorted pitch (mm) ≤20
Cable spacing (mm) ≤130





Other features



Delayed tilt (NS / 100 m) 45
Propagation speed (NVP) 69%
Propagation delay at 100 MHz (NS / 100M) <537.6
Characteristic impedance (frequency: 1-200 MHz) 100 ± 15 Ω
30 ° C coupling attenuation 4.5MHz (dB)

Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable


Panking



 Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable  Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cable weight Gross weight
9.3kg 10kg
Box size (CM) Specifications
21.5×35×35 305m/box



Application scenario



Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable
Network TV Desktop computer Notebook computer Printer
Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable
Router Set top box Cabinet Camera



Frequently asked question (FAQ)



Q:Are you a cable and wire manufacturer?
—Yes, we are a professional wire and cable manufacturer.

Q: Can you offer a discount on cables?
—The price is negotiable according to the specification and quantity.

Q: Can you offer FREE samples?
—Yes,FREE samples are available, you just take care of the freight fee.

Q: What about your MOQ?
—Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.

Q: Do you accept customize cables?
—Yes, we are more than happy to make OEM and ODM for you.

Q:How long is the lead time?
—Usually it’s about 10-14 days.



Cat 5e UTP Outdoor Ethernet LAN Cable With Messenger Unshielded Ethernet Cable



1. Fully comply with ANSI / tia-568b. 2 and ISO 11801, Second Edition, class E 5E channel standard.

2. Fully comply with the requirements of ANSI / tia-568b. 2 and IEC 61156-5 class 5E component standards;

3. The performance of this product meets the requirements of IEEE 802.3af and IEEE 802.3at for POE applications.

4. The cable length mark is easy to identify the remaining cables, which is more convenient and fast during construction.

5. Color availability: provide other cable colors.
