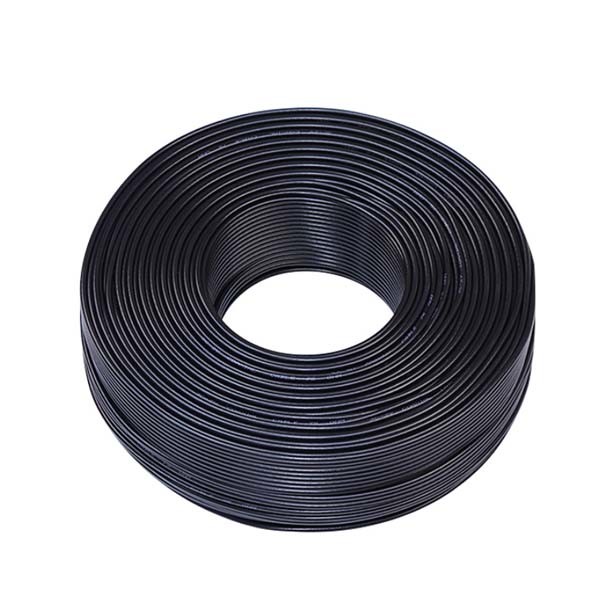

Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket

1000m
MOQ
USD 0.7-1.32 Meters $1.32
Price
Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 5DF
Product Name: 5DF Coaxial Cable
Conductor Nom. Dia.: 14AWG(7*0.75mm)
Dielectric Material: Foam PE
Shield Material: Al Foil+ TC Braiding*d Copper
Jacket Material: PVC/PE
Jacket Nom.Dia.: 10.30± 0.10mm
Jacket Nom.Thick: 0.86mm
High Light:

Coaxial Cable 5DF

,

Copper Conductor Coaxial Cable

,

PVC PE Coaxial Cable 5DF
Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: 5DF
Payment & Shipping Terms
Packaging Details: Packing Lengths: 200m/roll, 305m/roll,1000m/drum
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Kilometer/Kilometers per Day
Product Description

Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket





▌Product overview

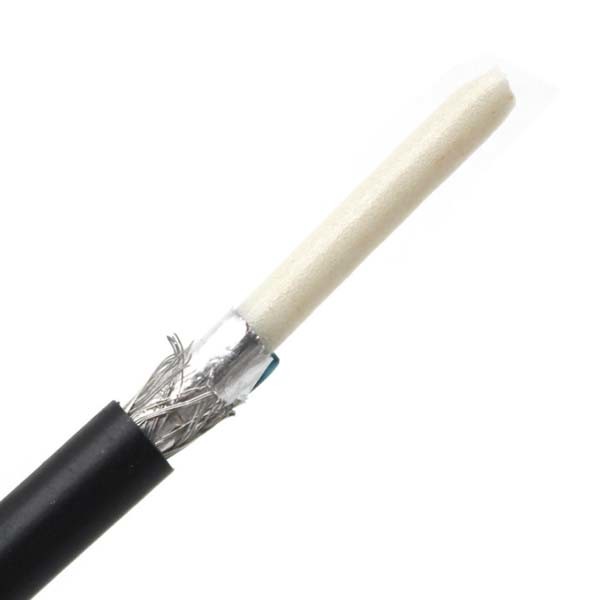

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1st shield is bonded laminated aluminum tape, the 2nd shield is 90% coverage braiding. The Jacket is PVC or PE for outdoor applications.



▌Features



  • CCTV coaxial power line is easy to use
  • Custom requirements are welcome.
  • dielectric: foam / solid PE
  • Aluminum foil + aluminum magnesium wire two layer shielding
  • Fully isolate EMI/RFI clutter
  • Double shield anti-interference
  • PVC sheath degree: 65, 70, 75 and more
  • Suitable for use as branch line subscriber line electronic device for closed circuit TV, common antenna TV and cable TV system below 1GHz
  • Inner conductor: bare copper / CCS

▌Construction and Dimension



Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
Coverage
40%--95%
95%
40%--95%
40%--95%
40%--95%
Diameter of 1st outer conductor
3.9
-
4.9
5.9
7.52
(mm)
Diameter of 2nd outer conductor
4.12
--
5
-
7.8
Material of Jacket
PVCPE
PVCPE
PVCPE
PVCPE
PVCPE
Diameter of Jacket
6.3
4.95
6.9
8.1
10.16



RG59 Coax Construction OD/ (mm)
Conductor Solid Copper 0.81
Dielectric Physical Foam Polyethylene 3.66
Shield Bonded Aluminum Foil+Aluminum Braid Nom.4.10
Jacket PVC or Polyethylene 6.1
PVC



RG 58 Cable Physical Characteristics
Weight per 5kg
Minimum bend radius 32mm
Operating temperature range PVC:－25℃ to +75℃
PE:－45℃ to +80℃
RoHS compliance 2011/65/EU (RoHS)



RG-59 Cable Electrical Characteristics
Impedance 75 +/- 2 ohms
Capacitance 52 pF/m. max
Maximum voltage 5000 Volts
Velocity of propagation 85 %
Operating Frequency 1 GHz
Screening effectiveness ≥ 40 dB (up to 1 GHz)
Insulation resistance ≥ 1 x 108 MΩm
Max. operating voltage ≤ 3.0 kVrms (at sea level)



RG59 Attenuation
Freq(MHz) Typical(dB/m) Max. CW power
100 0.105 319
300 0.189 184
500 0.249 143
700 0.3 121
900 0.346 106
1000 0.367 101



▌Parameter



Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket

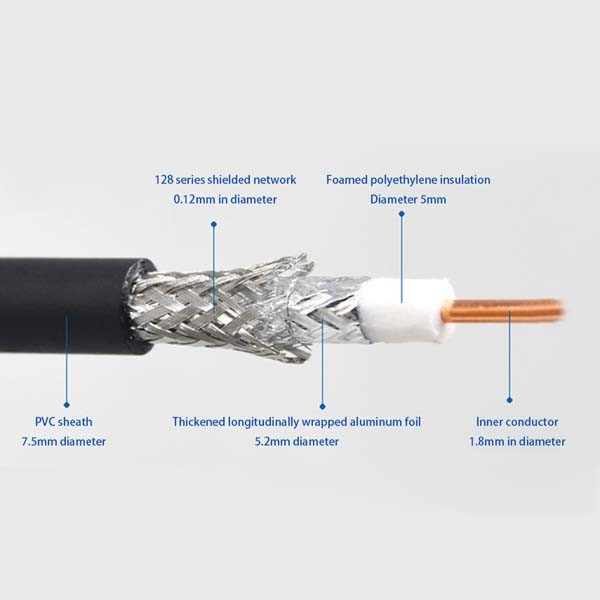

project Material Science Diameter (mm)
1. Inner conductor Bare copper wire 1.02
2. Insulator Foamed polyethylene 4.57
3. Outer conductor Self adhesive aluminum foil + aluminum magnesium wire braiding Nom.5.22
4. Sheath Polyvinyl chloride (PVC) 6.91
Polyethylene (PE)



goods RG6 RG59 coaxial cable with power cord
Minimum order quantity 30000 meters
Conductor material Copper / CCS
insulation Foam / solid PE
Woven 36W, 48W, 64W, 96w, 112W, 128W or customized
Jacket PVC





▌Application

Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE JacketCopper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE JacketCopper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket
Rack connection of equipment, transmission of closed-circuit television (CCTV), common antenna system (MATV) and color or monochrome RF monitor. These applications do not require the selection of precision video coaxial cables with particularly strict electrical tolerances. RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.





▌Packaging:



Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket



1. Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: Guanglian or as customer required

b. Standard Code(Product Type, Fiber Type,Fiber Count)
c. Year of manufacture: 20 years
d. Length marking in meters.

2. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

Our Service:

1. Please send us inquiry for more products info and we will
give you feedback in 12 hours.
2. We are the one of biggest manufacture of cable in China and has more than 20 years manufacturing and selling experience.
3. We accept OEM. The cable size and material are customized.
Ur own logo and own design are welcome. We will produce
according to your requirment and description;



▌FAQ

Q1. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q2. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.

Q5. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
