Ftth Fiber Optic Patch Cord GJYXCH Single Mode G657A LSZH Jacket

100000m
MOQ
0.2
Price
Ftth Fiber Optic Patch Cord GJYXCH Single Mode G657A LSZH Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Ftth Fiber Optic Patch Cord GJYXCH Single Mode G657A LSZH Jacket
Fiber Count: Simplex
Insertion Loss: 0.2dB
Material: LSZH
Return Loss: 55dB
Type: SC/PC-SC/PC
Cable Cover Material: LSZH, TPU
Connector Type: SC/FC/LC/ST, Customized
High Light:

Ftth Fiber Optic Patch Cord GJYXCH

,

LSZH Jacket Fiber Optic Patch Cord

,

G657A Single Mode Optical Patch Cord

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: GJYXCH
Payment & Shipping Terms
Packaging Details: Bag
Delivery Time: 8-10 Days
Payment Terms: L/C, T/T, D/A
Supply Ability: 100KM/Day
Product Description

Ftth Fiber Optic Patch Cord GJYXCH Single Mode G657A LSZH Jacket





Description


gjyxch patch cord is a length of cable with connectors on each end that is used to connect end devices to power sources. These cables are mainly used to connect one electronic device to another. They are typically copper cables that have RJ45, TERA or GG45 connectors on both ends.

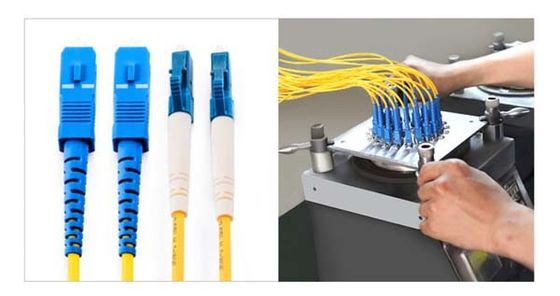

① SC type optical fiber jumper: the connector for connecting the GBIC optical module, its shell is rectangular, and the fastening method is a plug-in latch type, without rotation. (Most used on router switches)

② FC-type fiber jumper: The external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame)
③ LC-type optical fiber jumper: the connector for connecting the SFP module, which is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used)

④ ST type optical fiber jumper: commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Commonly used in optical fiber distribution frame)



> CATV

> High quality graphic transmission network

> Connection of optical transmission equipment

> Computer networks

> Telecommunication networks



Features



(1) High return loss;
(2) Low insertion loss;
(3) Good repeat-ability and and ex-changeability;

(4) Ceramic Ferrule;
(5) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

(6) Excellent Polished and 100% tested;

Specification


ITEM Value
Fiber type G657A or G652D
Cladding Diameter 125±0.7 (µm)
Cladding non-circularity ≤0.7(%)
Core-cladding concentricity error ≤0.5 (µm)
Mode field Diameter @1310 8.4~9.2(µm)
Cladding -coating concentricity error ≤12.0up
Coating Diameter 245±0.5 (µm)
Attenuation(max.) 1310nm ≤0.4(dB/km)
1550nm ≤0.3(dB/km)
Bend Loss (dB) Bend Radius 10 15
Bend Turns 1 10
1550nm ≤0.75 ≤0.25
1625nm ≤1.5 ≤1.0


Cable Parameters

ITEM SPECIFICATIONS
Fiber Type SM
Fiber count 1~2

Jacket
Diameter 2.0±0.1mm × 5.1±0.1mm
Material Standard: LSZH Option: PE or other
Color Black ,Yellow or White
Strength Member FRP or Single steel wire






Frequently asked question (FAQ)







Q1. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:keep touch.

Q7. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q8. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


Ftth Fiber Optic Patch Cord GJYXCH Single Mode G657A LSZH Jacket
