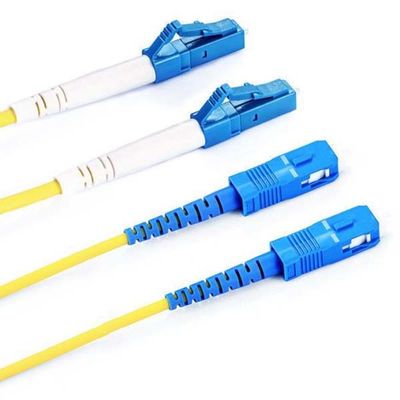

FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode

10km
MOQ
Negotiable
Price
FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: LC-SC
Use: INDOOR
Material: PVC
Color: Yellow,customized
Operating Temperature:: -40℃~75℃
Application: FTTH,FTTB,FTTx,Data Center,CATV
Fiber Type: Single Mode, Multi-mode
Type: Fiber Pigtails
Available Length: Customized
Name: LC-SC Carrier Grade Single-Mode Single Core Pigtail 10M Extension Cable Fiber Optic Pigtail
High Light:

10M Fiber Optic Pigtail

,

Fiber Optic Pigtail LC SC

,

10M ftth pigtail

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: LC-SC
Payment & Shipping Terms
Packaging Details: Bagged
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Product Description

LC-SC Carrier Grade Single-Mode Single Core Pigtail 10M Extension Cable Fiber Optic Pigtail





Product description



LC SC SM Duplex fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".



Feature

  • Low insertion and back reflection loss
  • Good interchangeability
  • Good durability
  • High temperature stability
  • Standard: Telcordia gr-326-core



Applications



Cable TV; Termination of active equipment; Telecommunication network; Subway; LAN; Data processing network; Test equipment; Premise installation; Wide area network; Optical fiber sensor



▌Knowledge


definition:

  • The optical fiber jumper shall not be excessively bent and circled, which will increase the attenuation of light during transmission.
  • The wavelength of optical fiber modules at both ends must be consistent. This means that both ends of the fiber optic module must be the same.
  • The outer sheath of the connector must be used to prevent dust and oil from damaging the optical fiber coupler.
  • Introduction to optical fiber jumper
  • Fiber optic patch cords are optical fibers that connect computers and equipment., The connection management is very convenient and the protective layer is thick. It is generally used for the connection between optical transceiver and junction box.

Structure:

  • The structure is similar to that of coaxial cable, and there is no mesh shielding.
  • The center is transparent glass core
  • Multimode fiber core diameter 15 μ m~50 μ m,
  • The core diameter of single-mode fiber is 8 μ m~10 μ m.
  • A glass shell with low refractive index is wrapped around the fiber core to keep the optical fiber in the fiber core
  • There is a thin plastic coat outside to protect the envelope.





▌Specification



Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3

Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH

Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1



▌Product list



Boot Connector Fiber Type Cable number Ferrule Connector

0.9mm

2.0mm

3.0mm

LC

FC

SC

ST

MU

D4

MTRJ

MPO

DIN



9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Ribbon

PC

APC

UPC

1M

2M

3M4M

5M

.........

Customized





Fiber optic connectors summary



FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode

All standard connectors (SC, FC, LC, ST, SMA, E2000, MU) are available. Those connectors can be put on patchords, pigtails or components with single-mode (SM), multi-mode (MM), polarization maintaining (PM), polarized (PZ), Photonic-crystal (PCF), hollow-core (HC) or micro-structured fibers.

The company also realizes fiber optic connectors testing. IDIL fibres Optiques proposes specific and high quality customized solutions. Do not hesitate to contact the company.

A wide range of coating materials, with different dimensions (900 µm, 3 mm…) and cladding (stainless steel (SST), PVC, coated fiberglass…) is available. Optical fibers are supplied with special coating materials (aluminium, polyimide, gold,…) when they are intended to be used in a harsh or specific environment.





▌Scene


FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode
LAN

Monitoring

equipment

Fiber to home
FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode
Communication products Cable TV Optical fiber Machine room allocation





Packaging & Shipping



FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode

1. Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable.

2. Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.





FAQ





Why we can choose you?

1): Reliable---we are the real company, we dedicate in win-win

2): Professional---we offer the products exactly you want

3): Factory---we have factory, so have reasonable price



How about the shipping cost?

If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.



How about the price?Can you make it cheaper?

The price depends on the item your demand(quantity)

Beat quotation after receving full description of the item you want.



How about the sample time?What is the payment?

Sample time:3~10days after order & samples confirmed.

T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, west union.



FTTH FTTB 1M Fiber Optic Pigtail LC-SC Carrier Grade Single Mode
