GCYFY 96 Core G652d Micro Duct Long Distance Fiber Optic Cable For Outdoor

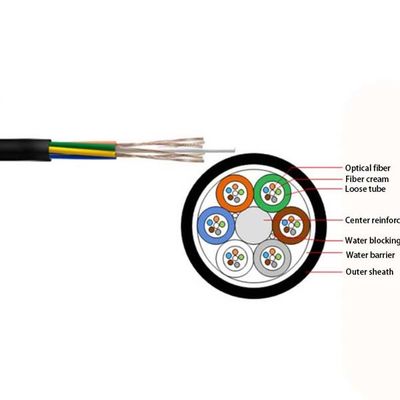

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a HDPE sheath.
Characteristcs:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Single Fiber Reinforced Plastic as the central strength member
7. Loose tube filling compound
8. 100% cable core filling
|
Amount. of fiber
|
Max. numb. of the fiber per tube
|
Number of
Tube Positions |
Number
of Active Tubes |
*Nom. thickness of sheath
|
Overall diameter
(Approx.) |
Weight
(Approx.) |
|
mm
|
mm
|
kg/km
|
||||
|
24
|
4
|
6
|
6
|
0.5
|
6.0±0.5
|
31
|
|
48
|
12
|
6
|
4
|
0.5
|
6.0±0.5
|
31
|
|
Item
|
Unit
|
Specification
|
|
|
G. 652
|
|||
|
Mode field diameter
|
1310nm
|
mm
|
8.6±0.4um
|
|
1550nm
|
mm
|
9.8±0.8um
|
|
|
Cladding diameter
|
mm
|
124.8±0.7 um
|
|
|
Cladding non-circularity
|
%
|
≤0.7%
|
|
|
Core/cladding concentricity error
|
mm
|
£0.5
|
|
|
Coating diameter
|
mm
|
242 ± 7
|
|
|
Coating/cladding concentricity error
|
mm
|
£12
|
|
|
Cable cut-off wavelength
|
nm
|
£ 1260
|
|
|
Attenuation Coefficient
|
1310nm
|
dB/km
|
£0.36
|
|
1550nm
|
dB/km
|
£0.22
|
|
|
Proof stress level
|
kpsi
|
≥100
|
|
|
|
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
Package:
Standard Wooden Drum With Protection
Standard reel length:2/3/4/5km/reel,other length is also available
