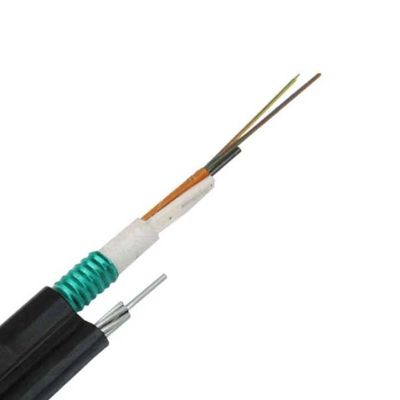

24 Core G652D Overhead Single Mode GYTC8S Figure 8 Optical Fiber Cable With Steel Messenger
Description
The tubes are filled with water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Figure 8 cable GYTC8Y, GYTC8S are also available on request. This type of cable is specifically applied for self-supporting aerial installation.
Features
1. The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
2. Optical cable has good mechanical properties and temperature characteristics
3. The loose tube material itself has good hydrolysis resistance and high strength
4. The tube is filled with special grease to protect the optical fiber critically
Specification
 |
Application : self-supporting aerial Installation method : self-supporting aerial Operating temperature : -40℃ ~ +70℃ Permisson bent radius Static :10 times O.D. Dynamic :20 times O.D. |
|
Fiber Num.
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tension (N)
|
Crash loading (N/100mm)
|
||
|
Short term
|
Long term
|
Short term
|
Long term
|
|||
|
2-30
|
9.5*18.2
|
150
|
≥6000
|
≥2000
|
≥1000
|
≥300
|
|
32-48
|
10.2*18.9
|
162
|
||||
|
50-60
|
10.2*19.2
|
173
|
||||
|
62-72
|
10.2*19.2
|
197
|
||||
|
74-84
|
12.1*21.1
|
217
|
||||
|
86-96
|
12.1*21.1
|
217
|
||||
| Model No. | Fiber count | Casing | Filled ropes |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
| GYTA-2~6Xn | 2~6 | 1 | 4 | 76 | 600/1500 | 300/1000 |
| GYTA-8~12Xn | 8~12 | 2 | 3 | 76 | ||
| GYTA-14~18Xn | 14~18 | 3 | 2 | 76 | ||
| GYTA-20~24Xn | 20~24 | 4 | 1 | 76 | ||
| GYTA-26~30Xn | 26~30 | 5 | 0 | 76 | ||
| GYTA-32~36Xn | 32~36 | 6 | 0 | 85 | ||
| GYTA-38~48Xn | 38~48 | 4 | 1 | 90 | ||
| GYTA-50~60Xn | 50~60 | 5 | 0 | 90 | ||
| GYTA-62~72Xn | 62~72 | 6 | 0 | 113 | ||
| GYTA-74~84Xn | 74~84 | 7 | 1 | 136 | ||
| GYTA-86~96Xn | 86~96 | 8 | 0 | 136 | ||
| GYTA-98~108Xn | 98~108 | 9 | 1 | 163 | ||
| GYTA-110~120Xn | 110~120 | 10 | 0 | 163 | ||
| GYTA-122~132Xn | 122~132 | 11 | 1 | 190 | ||
| GYTA-134~144Xn | 134~144 | 12 | 0 | 190 | ||
| GYTA-146~216Xn | 146~216 | 13~18 | 5~0 | 190 | ||
| GYTA-288Xn | 288 | 24 | 0 | 239 |
Storage and use temperature: -40 °C to +70 °C.
Production and Quality Test
Packing and Delivery
FAQ
1. Are you the real manufacturer?
Us. We are the real manufacturer with 31 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
