GJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVC

10000m
MOQ
$0.01 - $0.30/ Meter
Price
GJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVC
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: FTTH Fiber Optic Cable GJXH-2B6 Indoor Drop Cable PVC
Fiber Type: G652D
Strength: Steel Wire
Type: Self-supporting
Outer Sheath: PVC
Sheath Color: White Or As Required
Strength Member: FRP
Application: FTTX,FTTH FTTB FTTX
High Light:

GJXH-2B6 FTTH Fiber Optic Cable

,

PVC G652D FTTH Fiber Optic Cable

,

1310nm Indoor Drop Cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: GJXH-2b
Payment & Shipping Terms
Packaging Details: Wooden Drums
Delivery Time: 8days
Payment Terms: L/C, T/T, T/T, Western Union, MoneyGram
Supply Ability: 1500KM/mouth
Product Description

FTTH Fiber Optic Cable GJXH-2B6 Indoor Drop Cable PVC





Product description



FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.



Application

  • Replace flexible optical cable as indoor wiring;
  • Adopted to indoor distribution;

  •



    Suitable for aerial, pipeline laying method

Characteristics

  • ▶ Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
    ▶ Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
    ▶ Single steel wire as the additional strength member ensure good performance of tensile strength.
    ▶ Simple structure, light weight and high practicability.
    ▶ Novel flute design. easily strip and splice, simplify the installation and maintenance.
    ▶ Low smoke, zero halogen and flame retardant sheath.



General Specifications:



Cable Type FTTH(Drop Cable)
Fiber Type SM G657A1/ SM G657A2
Application FTTH, LAN
Recommended installation methods Aerial
Environment Indoor
Temperature Range -40℃ to 70℃







Fiber Specifications:



Fiber style Unit SM
G652D
SM
G657A1
SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm ≧1180,≤1330 ≧1180,≤1330 ≧1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4

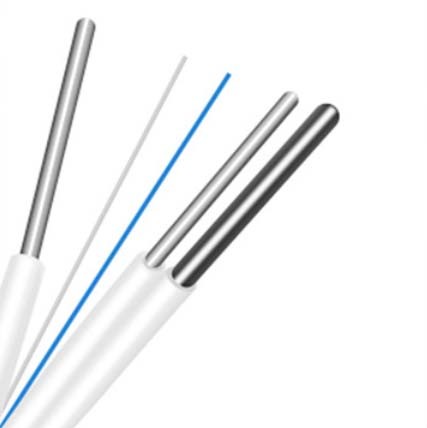

Product mix



GJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVCGJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVC



GJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVC





Standard Color Identification of Fiber



No. 1 2 3 4
Color Blue Orange Green Brown

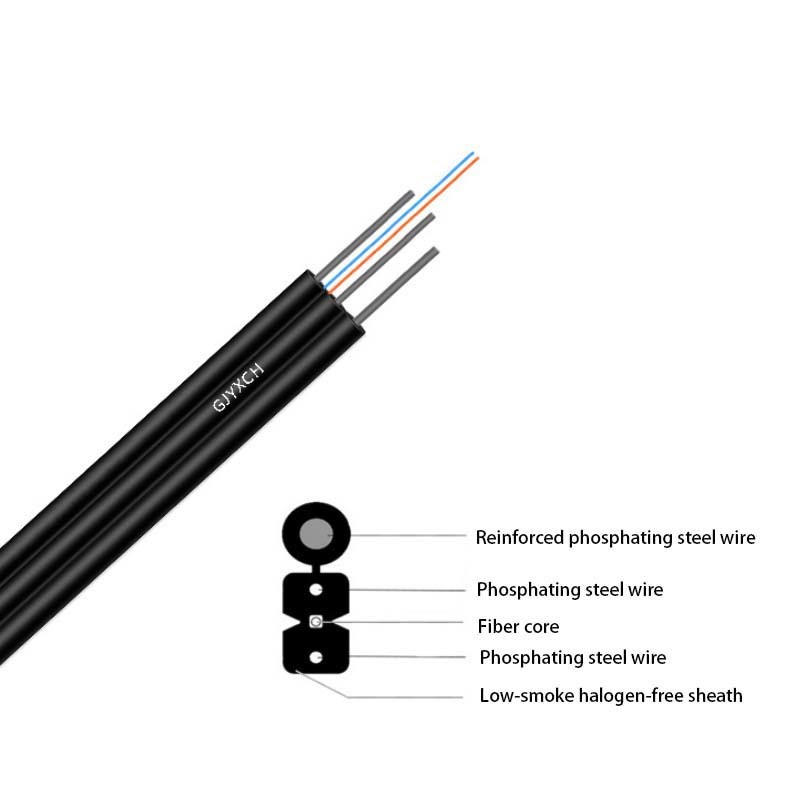

Cable Design



Item Description
Model No GJXH/GJFXH
1. Fiber count 1 Core , 2 Core, 4 Core
2. Cable Diameter 3.0*2.0mm
3. Cable Weight 11.5KGS/9.5KGS
4. Strength member
- Material Steel/FRP
- Diameter 0.45mm
5. Outer Sheath
- Material LSZH (Black/white)
6. Sheath marking
- Type of marking Laser printing

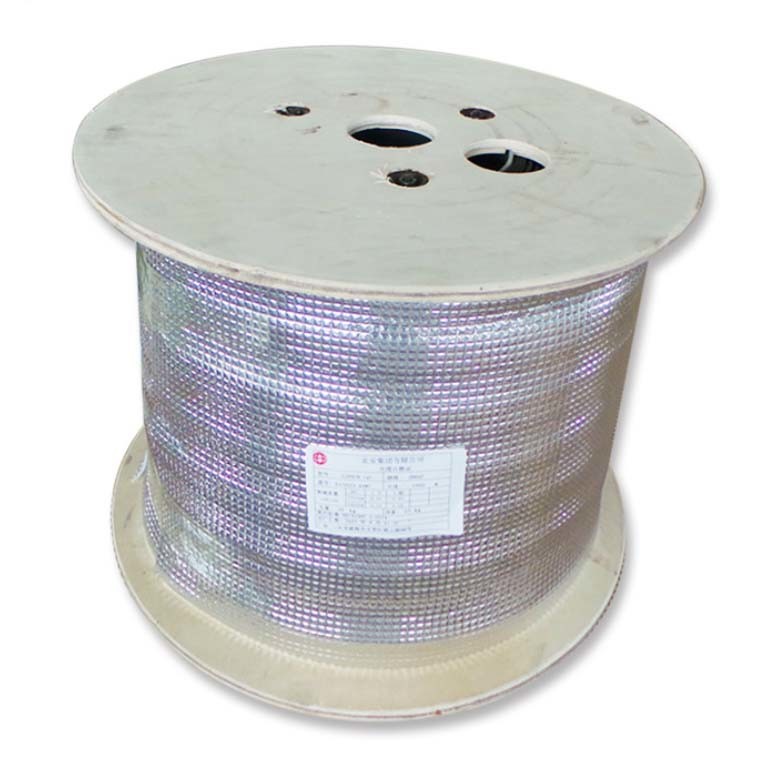

Packing

GJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVCGJXH-2B6 FTTH Fiber Optic Cable Indoor Drop Cable PVC
Items Description
Cable length 1KM or 2KM per reel
Package material drum+carton
Package size 1KM 31.5*21*32.5cm
2KM 34.5*28*35cm





FAQ



Q1: How about the cable's quality?
A1: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q2: Can you produce cable as our requirements?
A2: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q3: How long has your company been doing this?
A3: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .

Q4: Where is your factory ?
A4: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q5: Do you accept the OEM order and how many is the MOQ?
A5: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
