GYFTY PBT Multi Tube Outdoor Fiber Optic Cables Single Mode Lightning Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: GYFTY Multi-tube Outdoor Fiber Optic Cables
Jacket Material: Polyethylene (PE)
Total Fiber Count: 6-8,10-12,14-24,30-72
Loose Tube: PBT
Subunit Type: Gel-filled
Single Armour Material: Corrugated Aluminium Tape
Waterblocking Material: Water Blocking Tape Or Filling Compound
Messenger Material: Steel Wires
High Light:

GYFTY outdoor fiber optic cables

,

outdoor fiber optic cable single mode

,

PBT multi tube fiber optic cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: Customize
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200km/Day
Product Description

GYFTY Multi-tube Outdoor Fiber Optic Cables Lightning Protection PBT Loose Tube



Product Description



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. Then, the cable is completed with a PE sheath.



Features

  1. Good mechanical and temperature performance.
  2. High strength loose tube that is hydrolysis resistant.
  3. Special tube filling compound ensure a critical protection of fiber.
  4. Crush resistance and flexibility.
  5. Two parallel steel wires ensure tensile strength
  6. Small diameter, light weight and friendly installation
  7. Long delivery length
  8. Application:duct/aerial

Advantages

  1. Loose tube protects one-time coated optical fiber
  2. Aitong known as the fiber optic cable manufacturer for the excellent products quality, competitive prices , fast delivery and good service.
  3. Especially suitable for power system, heavy lightning and severe electromagnetic interference occasions, can be used as drop cable
  4. Long-distance communication, inter-office communication and fiber optic cable entry

GYTS optic fiber cable Technology Specification:



TYPE G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

850nm     ≤3.0dB/km ≤3.0dB/km
  1300nm     ≤1.0dB/km ≤1.0dB/km
  1310nm ≤0.36dB/km ≤0.40dB/km
  1550nm ≤0.22dB/km ≤0.23dB/km

Bandwidth

(Class A)

850nm     ≥500Mhz.km ≥200Mhz.km
  1300nm     ≥1000Mhz.km ≥600Mhz.km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable cut-off Wave lengh λ cc ≤1260nm ≤1480nm





Model Fiber Count Tubes Fillers

Cable OD

mm

Cable Weight

kg/km

Tensile Strength

Long/Short Term

N

Crush Tesistance

Long/Short Term

N/100mm

Bending Radius

Static/Dynamic

mm

1062 2~6 1 4 10.2 116 600/1500 300/1000 10D/20D
1063 8~12 2 3
1064 14~18 3 2
1065 20~24 4 1
1066 26~30 5 0
1067 32~36 6 0 10.6 129 1000/3000
1068 38~48 4 1 11.2 141
1069 50~60 5 0 11.2 141
1070 62~72 6 0 12.0 159
1071 74~84 7 1 13.6 209
1072 86~96 8 0 13.6 209
1073 98~108 9 1 15.4 232
1074 110~120 10 0 15.4 232
1075 122~132 11 1 17.2 280
1076 134~144 12 0 17.2 280

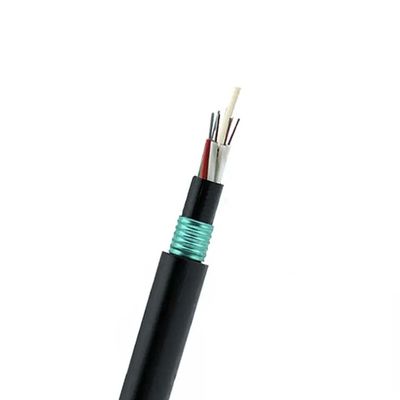

Structure:



GYFTY PBT Multi Tube Outdoor Fiber Optic Cables Single Mode Lightning Protection
