GYTC8S PE Sheath Aerial Figure 8 Single Mode Fiber Optic Cable
Description

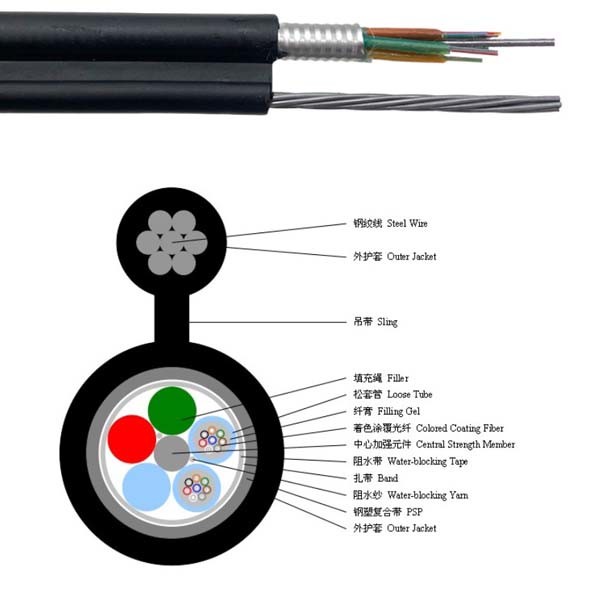

GYTC8s fig8 Single Mode fiber optic cable is an outdoor self-riding aerial cable with a stranded structure. It is different from ordinary optical cables that are overhead outdoors. From the appearance point of view, the GYTC8s optical cable is called a figure eight cable because it looks like a figure eight. The upper part is the steel strand suspension wire, and the lower part is the main cable of the optical cable. The main cable of the optical cable below is the same as that of the outdoor ordinary optical cable GYTS optical cable.
Features
1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit
2. Stable fiber excess length control
3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change
4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃
Technical data
|
Cable Type
|
Fiber Count
|
Cable Diameter mm
|
Cable Weight kg/km
|
Tensile Strength
|
Crush Resistance
|
Bending Radius
|
|
Long/Short Term
|
Long/Short Term
|
Static/Dynamic
|
||||
|
N
|
N/100mm
|
mm
|
||||
|
GYTC8S
|
2-30
|
9.8*18.5
|
166
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
32-48
|
10.6*19.3
|
180
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
50-60
|
10.6*19.6
|
190
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
62-72
|
11.3*20.3
|
217
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
74-84
|
12.7*21.7
|
252
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
86-96
|
12.7*21.7
|
252
|
2000/6000
|
300/1000
|
10D/20D
|
Details
Production and Quality Test
Application
Packing
|
|
|
Why Choose Us?
FAQ
1. Are you the real manufacturer?
Us. We are the real manufacturer with 31 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
