Indoor 1 Core FTTH Drop Fiber Optic Cable KFRP Strength Member G657A2

Negotiable
MOQ
$0.02-0.04/meter
Price
Indoor 1 Core FTTH Drop Fiber Optic Cable KFRP Strength Member G657A2
Features Gallery Product Description Request A Quote
Features
Specifications
Application: FTTX,FTTH FTTB FTTX Network,Telecom
Fiber Type: G657A2,G652D
Scope Of Application: Indoor And Outdoor
Type: Butterfly Drop,Self-supporting
Strength Member: FRP / Metal,FRP Or KFRP
Permissible Side Pressure: 50(N/100mm)
Outer Sheath: PVC/LSZH
Operating Temperature: -40℃- +70℃
High Light:

1 Core ftth indoor drop cable

,

ftth drop fiber optic cable KFRP

,

ftth fiber drop cable G657A2

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001/ISO14001/ISO25001
Model Number: GJXH-1B Optical Fiber
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8days
Payment Terms: L/C, T/T, T/T, Western Union, MoneyGram
Supply Ability: 150000KM/mouth
Product Description

Optical Fiber Leather Cable GJXH-1B Optical Fiber Indoor 1-Core Double Steel FTTH Fiber Optic Cable





Detailed Product Description



as an important part of the FTTH network. It forms the final external link between the user and the feeder cable. Choosing the correct FTTH drop cable termination or interconnection solution will directly affect network reliability, operational flexibility, and the economics of FTTH deployment. The FTTH drop cable is located at the user end. It is usually a small diameter, low fiber count cable with a limited unsupported span. It can be installed overhead, underground, or buried. The three most commonly used fiber drop cables include flat drop cables, figure-eight aerial drop cables, and round drop cables.

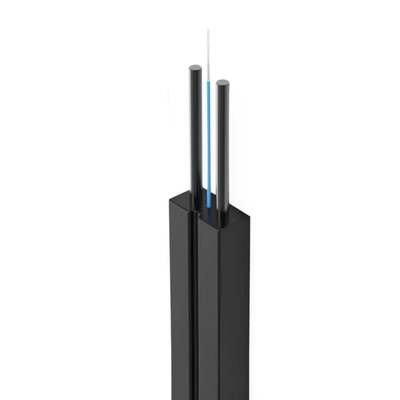

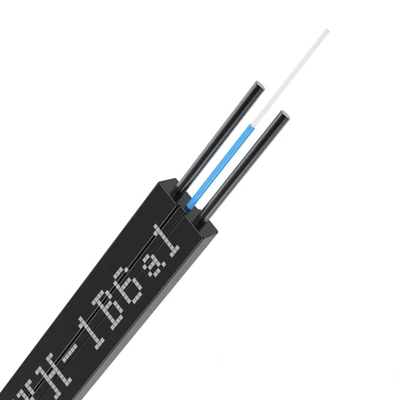

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. Two parallel strength member are placed at the two sides , then, the cable is completed with a black HDPE /LSZH sheath.



Product feature and application



1) Adopted to indoor distribution.

2) As pigtail of communication equipment

3) Suitable for communication equipment

4) Can be installed conveniently



General Specifications:



Cable Type FTTH(Drop Cable)
Fiber Type SM G657A1/ SM G657A2
Application FTTH, LAN
Recommended installation methods Aerial
Environment Indoor
Temperature Range -40℃ to 70℃


Fiber Specifications:



Fiber style Unit SM
G652D
SM
G657A1
SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm ≧1180,≤1330 ≧1180,≤1330 ≧1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4



Indoor 1 Core FTTH Drop Fiber Optic Cable KFRP Strength Member G657A2



Standard Color Identification of Fiber

No. 1 2 3 4
Color Blue Orange Green Brown



Cable Design

Item Description
Model No GJXH/GJFXH
1. Fiber count 1 Core , 2 Core, 4 Core
2. Cable Diameter 3.0*2.0mm
3. Cable Weight 11.5KGS/9.5KGS

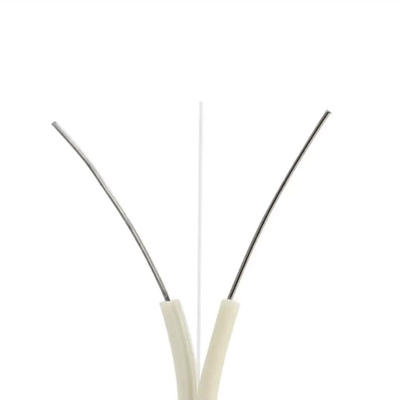

4. Strength member
- Material Steel/FRP
- Diameter 0.45mm
5. Outer Sheath
- Material LSZH (Black/white)
6. Sheath marking
- Type of marking Laser printing





Packing

Items Description
Cable length 1KM or 2KM per reel
Package material drum+carton
Package size 1KM 31.5*21*32.5cm
2KM 34.5*28*35cm





FAQ



Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3: How about the cable's quality?
A3: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A4: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5: Do you accept the OEM order and how many is the MOQ?
A5: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.



Indoor 1 Core FTTH Drop Fiber Optic Cable KFRP Strength Member G657A2
