305m Pull Box 4 pair 23AWG UTP Solid Bare Copper Internet Cat6 Lan cable
▌ Product description

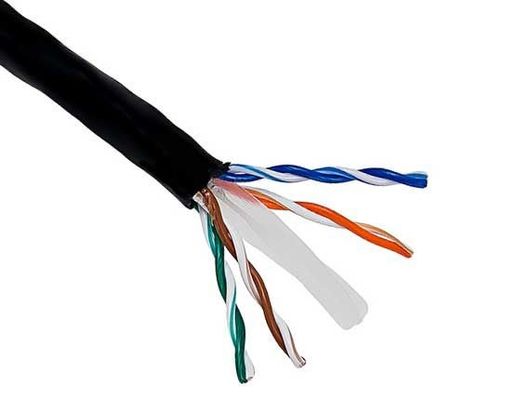

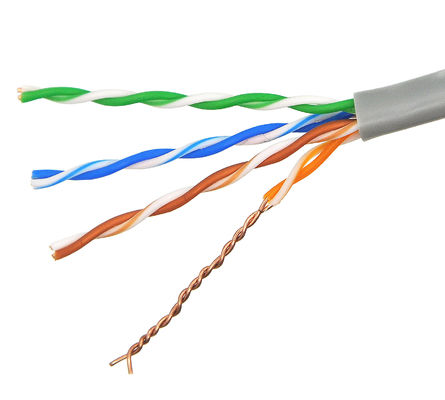

Category 6 Ethernet cables provide common connectivity for computer and network components such as routers, switch boxes, network printers, network attached storage (NAS) devices, VOIP phones, and Poe devices. Provide excellent transmission performance and low signal loss. It supports up to 550 MHz and is suitable for fast Ethernet, Gigabit Ethernet and 10 Gigabit Ethernet. Its durable 23 AWG construction maintains signal quality and still manages to occupy only minimal wall space. Its flexible outer sheath makes the cable ideal for custom installation. Each of the 4 twisted pairs is cross isolated by PE to prevent crosstalk. The CM rating means that it is certified for wall use. It is wrapped in a removable premium snagless box for easy distribution, measurement, cutting and storage. The sequential marks printed directly on the jacket at 2ft intervals provide users with accurate and worry free settings. This cable is suitable for wired home and office networks.
▌Construction Full diameter 305 m CAT6 network cable
▌Appliacation
The horizontal comparison cable for digital communication shall be used for the wiring between the communication outgoing end in the work area and the distribution frame in the handover room in the generic cabling system of the building, and the wiring from the user communication outgoing end of the residential generic cabling system to the distribution frame. In order to meet different user needs, this cable is divided into shielded and unshielded, Shielded cables will be free from external interference and reduce bit error. Shielded cables are generally used in hospitals, telecommunications, airports and other places. The standard wiring length of this kind of wire is 90m, which is generally installed in t568a or t568b.
▌Parameter
| Environmental Space: | Indoor |
| Suitable Applications: | Horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM |
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | No. of Pairs |
| Individual pair | 23 | Solid | BC - Bare Copper | 4 |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Conductor Size: | 23 AWG |
Insulation
| Element | Type | Material | Nominal Diameter |
| Individual pair | Dielectric | Polyethylene | 0.96 mm |
| Bonded-Pair: | No |
Color Chart
| Number | Color |
| Pair 1 | White/Blue & Blue |
| Pair 2 | White/Orange & Orange |
| Pair 3 | White/Green & Green |
| Pair 4 | White/Brown & Brown |
Outer Jacket Material
| Material | Color | Nominal Diameter | Diameter +/- Tolerance |
| PVC - Polyvinyl Chloride | Grey or Blue | 5.4 mm | 0.3 mm |
Construction and Dimensions
| Min Elongation at Breakof Conductors: | 10 % |
| Min Elongation at Breakof Insulation: | 100 % |
Cabling
| Description | Filler |
| 4 pairs twisted together | Cross Web of Polyolefin |
| Min Elongation at Breakof Jacket: | 100 % |
| Min Tensile Strength of Jacket: | 9 MPa |
▌Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max DCR Unbalanced Between Pairs [%] | Max. DCR Unbalanced Within Pair [%] |
| 95 Ohm/km | 4 % | 2 Ohm |
Capacitance
| Max. Capacitance Unbalance | Max. Mutual Capacitance |
| 1,600 pF/m | 56 pF/m |
Impedance
| Nominal Characteristic Impedance | 100Ohm |
Delay
| Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
| 40 ns/100m | 70 % |
High Freq
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
| 1 MHz | 2.1 dB/100m | 75.3 dB | 72.3 dB | 73.2 dB | 70.2 dB | 70 dB | 67 dB | 20 dB | 40 dB | 35 dB |
| 4 MHz | 3.8 dB/100m | 66.3 dB | 63.3 dB | 62.4 dB | 59.4 dB | 58 dB | 55 dB | 23 dB | 34 dB | 23 dB |
| 10 MHz | 6 dB/100m | 60.3 dB | 57.3 dB | 54.3 dB | 51.3 dB | 50 dB | 47 dB | 25 dB | 30 dB | 15 dB |
| 16 MHz | 7.6 dB/100m | 57.2 dB | 54.2 dB | 49.6 dB | 46.6 dB | 45.9 dB | 42.9 dB | 25 dB | 28 dB | 10.9 dB |
| 20 MHz | 8.5 dB/100m | 55.8 dB | 52.8 dB | 47.3 dB | 44.3 dB | 44 dB | 41 dB | 25 dB | 27 dB | 9 dB |
| 31.2 MHz | 10.7 dB/100m | 52.9 dB | 49.9 dB | 42.1 dB | 39.1 dB | 40.1 dB | 37.1 dB | 23.6 dB | 25.1 dB | 5.1 dB |
| 62.5 MHz | 15.5 dB/100m | 48.4 dB | 45.4 dB | 32.9 dB | 29.9 dB | 34.1 dB | 31.1 dB | 21.5 dB | 22 dB | |
| 100 MHz | 19.9 dB/100m | 45.3 dB | 42.3 dB | 25.4 dB | 22.4 dB | 30 dB | 27 dB | 20.1 dB | 20 dB | |
| 155 MHz | 25.3 dB/100m | 42.4 dB | 39.4 dB | 17.1 dB | 14.1 dB | 26.2 dB | 23.2 dB | 18.8 dB | 18.1 dB | |
| 200 MHz | 29.1 dB/100m | 40.8 dB | 37.8 dB | 11.6 dB | 8.6 dB | 24 dB | 21 dB | 18 dB | 17 dB | |
| 250 MHz | 33 dB/100m | 39.3 dB | 36.3 dB | 6.3 dB | 3.3 dB | 22 dB | 19 dB | 17.3 dB | 16 dB |
| High Freq Table Note: | ): Limits below 4MHz are for information only. |
| Coupling Attenuation Class: | Type III |
| Segregation class according EN50174-2: | a |
Current
| Max. Recommended Current [A] | 1.5A |
Voltage
| Voltage Rating [V] | 72V |
▌Temperature Range
| Installation Temp Range: | 0°C To +50°C |
| Operating Temp Range: | -30°C to +60°C |
▌Mechanical Characteristics
| Bulk Cable Weight: | 37 kg/km |
| Max Recommended Pulling Tension: | 80 N |
| Min Bend Radius During Installation: | 46 mm |
| Min Bend Radius During Operation: | 23 mm |
▌Standards
| ISO/IEC Compliance: | ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010) |
| CPR Euroclass: | Eca |
| CENELEC Compliance: | EN 50173-1 (2011) |
| Data Category: | Category 6 |
| ANSI Compliance: | ANSI/TIA/EIA 568-C.2 (2009) |
▌Flammability, LS0H, Toxicity Testing
| ISO/IEC Flammability: | IEC 60332-1 |
| Burning Load: | 460 kJ/m |
▌Part Number
Variants
| Item # | Color |
| 7965E.05A305 | Black |
| 7965E.011000 | Blue |
| 7965E.01200 | Blue |
| 7965E.01305 | Blue |
| 7965E.01500 | Blue |
| 7965E.01A305 | Blue |
| 7965E.01B100 | Blue |
| 7965E.001000 | Gray, RAL 7032 |
| 7965E.00305 | Gray, RAL 7032 |
| 7965E.00500 | Gray, RAL 7032 |
| 7965E.00A305 | Gray, RAL 7032 |
| 7965E.00B100 | Gray, RAL 7032 |
| 7965E.03500 | Green |
| 7965E.03305 | Green |
|
|
▌Panking
| |
|
Cable weight | Gross weight | |||||
| 9.3kg | 10kg | |||||||
| Box size (CM) | Specifications | |||||||
| 21.5×35×35 | 305m/box | |||||||
▌Application scenario
|
|
|
|
| Network TV | Desktop computer | Notebook computer | Printer |
|
|
|
|
| Router | Set top box | Cabinet | Camera |
