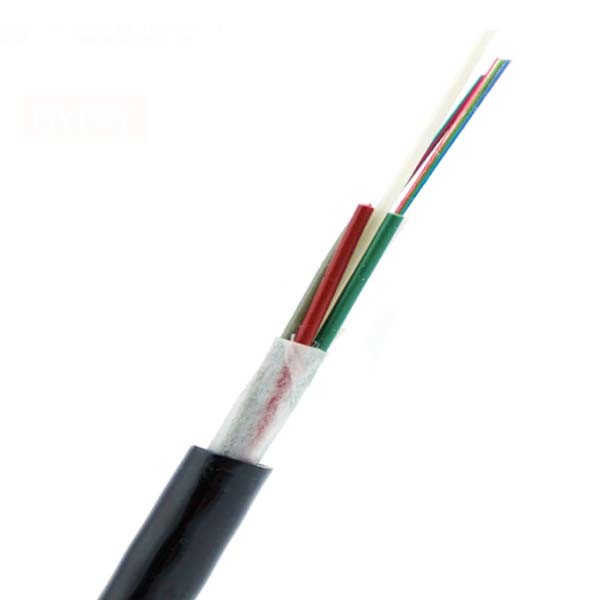

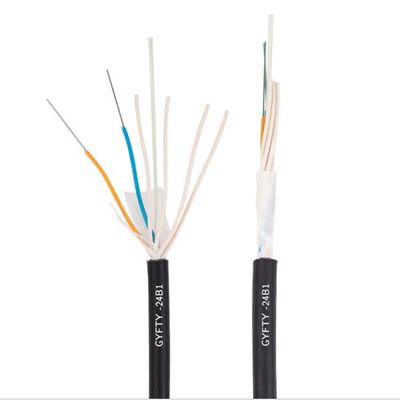

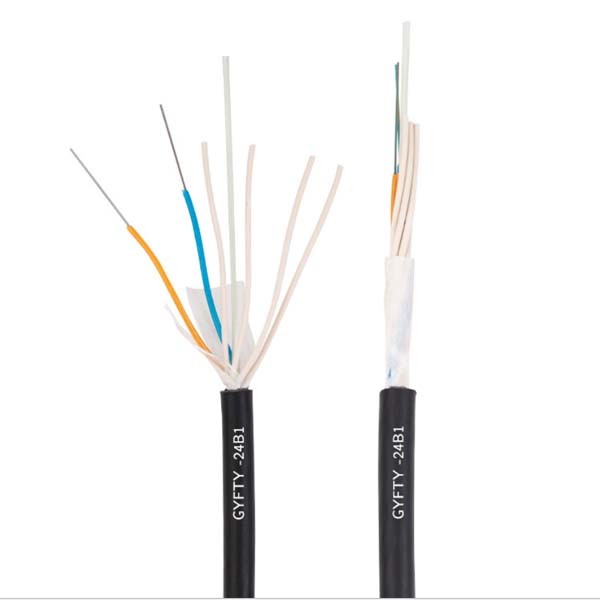

Loose Tube Fiber Optical Cable non-metallic polyethylene sheathed GYFTY

Negotiation processing
MOQ
Negotiation processing
Price
Loose Tube Fiber Optical Cable non-metallic polyethylene sheathed GYFTY
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYFTY Optical Cable Stranded Non-Metallic Optical Cable Pipe Unarmored And Mine Area Special Optical Fiber
Number Of Conduc: >=2
Color: Black Or Customized
Outsheath: 2km/roll,3km/roll Or Customized
Fiber Type: G652D,G657A,OM1,OM2,OM3,OM4
Structure: Loose Tube Stranded And Filled
Certification: ISO9001/CE/RoHS
Strength Member:: Non-metallic Strengthening Member
Application: Outdoor Duct/aerial Lashed
High Light:

Loose Tube Fiber Optics Cables

,

Fiber Optics Cables Unarmored

,

GYFTY Special Optical Fiber

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: GYFTY
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 km/Day
Product Description

GYFTY Optical Cable Stranded Non-Metallic Optical Cable Pipe Unarmored And Mine Area Special Optical Fiber




Product description

The structure of GYFTY optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. No metal structure, excellent anti-electromagnetic and lightning performance, anti-static


Characteristics

  • Using high-quality flame-retardant PE material, environmental protection, safety, and durability; good waterproof and flame-retardant performance, external
  • Using high-quality flame-retardant PE material, environmental protection, safety and durability; good waterproof and flame-retardant performance, smooth and bright appearance, uniform thickness. This product will have a certain strength, low thermal deformation, abrasion, water permeability, thermal shrinkage and friction coefficient, at the same time, strong resistance to environmental stress, material processing performance and other characteristics
  • Suitable for overhead and pipeline installation with rodent and lightning protection requirements
  • Two parallel steel wires ensure tensile strength
  • Small diameter, light weight and friendly installation

Features

  • Product weight: 80-130Kg/KM
  • Stretching strength: 800/3000N
  • Flattening force: 800/3000N
  • Use environment: -40~60℃

Applications



  • Installed in duct, direct burial.
  • FTTx.

Fiber Color Code


No. 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua


▌ Cable structure and parameter


Fiber count 2~12 14~24
Max. Cores in tube 12 24
Cable diameter 7.6 8.3
Tensile strength(N) 1500
Crush resistance
(N/100mm)
Long term 300
Short term 1000
Bending radius Dynamic 20×D
Static 10×D
Storing temperature -40°C to +70°C
Operating temperature -40°C to +70°C



    G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)
@850nm     ≤3.0dB/km ≤3.0dB/km
@1300nm     ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500MHz·km ≥200MHz·km
@1300nm     ≥1000MHz·km ≥600MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm


Structure and Technical Specifications GYXY


Fiber
Count

Nominal
Diameter
(mm)

Nominal
Weight
(kg/km)

Allowable Tensile Load
(N)

Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.2 52 1000 400 1000 1000
14~24 7.0 64 1200 500 1000 1000


Structure and Technical Specifications GYFXY(All-Dielectric)


Fiber
Count

Nominal
Diameter
(mm)

Nominal
Weight
(kg/km)

Allowable Tensile Load
(N)

Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.2 45 600 250 1000 1000
14~24 7.0 56 800 300 1000 1000




▌ Roduction and Quality Test


Loose Tube Fiber Optical Cable non-metallic polyethylene sheathed GYFTY



Application


Loose Tube Fiber Optical Cable non-metallic polyethylene sheathed GYFTY




Packaging

Loose Tube Fiber Optical Cable non-metallic polyethylene sheathed GYFTY



1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: Guanglian or as customer required
b. Standard Code(Product Type, Fiber Type,Fiber Count)
c. Year of manufacture: 7 years
d. Length marking in meters.

Our Service:
1. We are the one of biggest manufacture of fiber optic
cable in China and has more than 10 years manufacturing
and selling experience.
2. We accept OEM. The cable size and material are customized.
Ur own logo and own design are welcome. We will produce
according to your requirment and description;
3. Please send us inquiry for more products info and we will
give you feedback in 12 hours.


  FAQ
1. Are you the real manufacturer?
Us. We are the real manufacturer with 23 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
