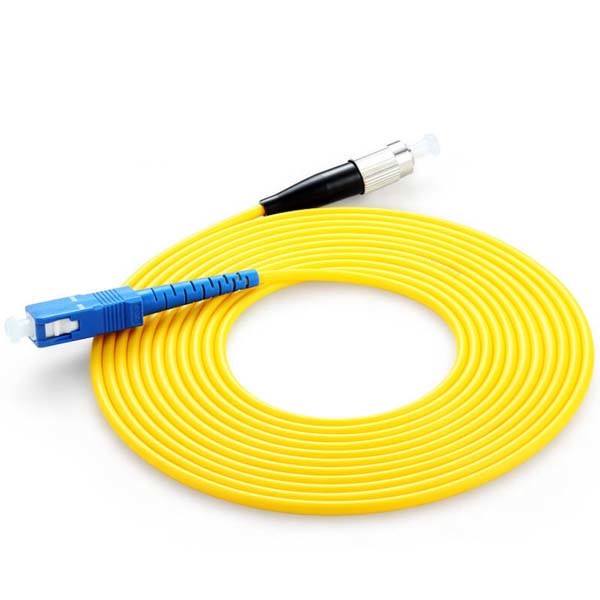

NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper

Negotiation processing
MOQ
Negotiation processing
Price
NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SC-FC
Use: INDOOR
Material: PVC
Color: Yellow
Operating Temperature:: -40℃~75℃
Application: FTTH,FTTB,FTTx,Data Center,CATV
Fiber Type: Single Mode Or Multi-mode
Type: Fiber Pigtails
Available Length: User-defined
Name: NetLINK Fiber Jumper Telecom Class Fiber Fusion Tail Fiber Optical End Machine For SC-FC Single Mode Single Core
High Light:

Telecom fiber optic tails

,

NetLINK Fusion fiber optic tail

,

NetLINK PVC fiber optic jumper

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: SC-FC
Payment & Shipping Terms
Packaging Details: Bagged
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Product Description

NetLINK Fiber Jumper Telecom Class Fiber Fusion Tail Fiber Optical End Machine For SC-FC Single Mode Single Core



Product description



Optical fiber connector is removable (activities) between optical fiber and optical fiber connection device, it is to put the fiber of two surface precision docking, so that the optical output of light energy to maximize the coupling to the receiving optical fiber, and optical link due to the intervention and to minimize the effects on the system, it is the basic requirement of optical fiber connector.



Feature

  • Long tail protection is durable
  • Integral process high toughness long tail anti-bending
  • Reduce attenuation for a long time without fracture
  • Low smoke halogen free outer pull resistance
  • High quality PVC material outer protection φ2.0mm wire diameter
  • Tensile, bending and corrosion resistance
  • Supports hot swap with low insertion loss
  • The insert core is finely grinded and inserted for many times with long service life

Applications

  • Telecom Net
  • Local Ring Net
  • Optical Fiber Sensor
  • Optical Fiber Test Equipment
  • Optical Fiber Communication System
  • FTTH,LAN,PON & Optical CATV.




▌​Specification

Parameter
PC
UPC
APC
Multi-mode
Insertion loss
≤0.3dB
≤0.3dB
≤0.3dB
≤0.3dB
Return loss
>40dB
>50dB
>60dB
/
Exchange
≤0.2dB
Repeatability
≤0.2dB
Service life
>1000times
Tensile strength
>10kg
Temperature range
-40℃ to +85℃


▌​Ordering Information

Fiber Mode
Connector1Type
Connector2Type
Cable Type
Length of Fiber/Cable
S=Single mode
M=Multimode

P=PM fiber

X=others
SC=SC/PC
FC=FC/PC
FU=FC/UPC
SU=SC/UPC
FA=FC/APC
SA=SC/APC
ST=ST/PC
LC=LC/PC
xx=Others
SC=SC/PC
FC=FC/PC
FU=FC/UPC
SU=SC/UPC
FA=FC/APC
SA=SC/APC
ST=ST/PC
LC=LC/PC
xx=Others
1=0.9mm
2=2mm
3=3mm
x=Others
01=1.0m
02=2.0m
03=3.0m
04=4..0m
xx=others





Fiber optic connectors summary



NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper

All standard connectors (SC, FC, LC, ST, SMA, E2000, MU) are available. Those connectors can be put on patchords, pigtails or components with single-mode (SM), multi-mode (MM), polarization maintaining (PM), polarized (PZ), Photonic-crystal (PCF), hollow-core (HC) or micro-structured fibers.

The company also realizes fiber optic connectors testing. IDIL fibres Optiques proposes specific and high quality customized solutions. Do not hesitate to contact the company.

A wide range of coating materials, with different dimensions (900 µm, 3 mm…) and cladding (stainless steel (SST), PVC, coated fiberglass…) is available. Optical fibers are supplied with special coating materials (aluminium, polyimide, gold,…) when they are intended to be used in a harsh or specific environment.





▌Scene


NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper
LAN

Monitoring

equipment

Fiber to home
NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper
Communication products Cable TV Optical fiber Machine room allocation





Packaging & Shipping



NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper

1. Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable.

2. Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.





FAQ





Why we can choose you?

1): Reliable---we are the real company, we dedicate in win-win

2): Professional---we offer the products exactly you want

3): Factory---we have factory, so have reasonable price



How about the shipping cost?

If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.



How about the price?Can you make it cheaper?

The price depends on the item your demand(quantity)

Beat quotation after receving full description of the item you want.



How about the sample time?What is the payment?

Sample time:3~10days after order & samples confirmed.

T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, west union.



NetLINK Telecom Class Fusion Fiber Optic Tail SC-FC PVC Fiber Optic Jumper
