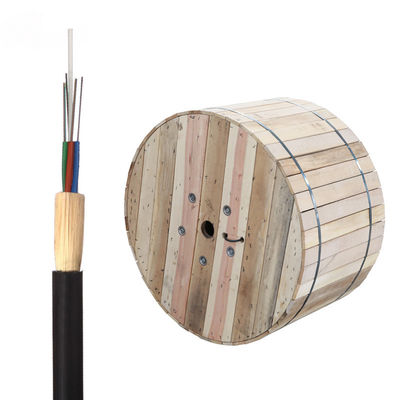

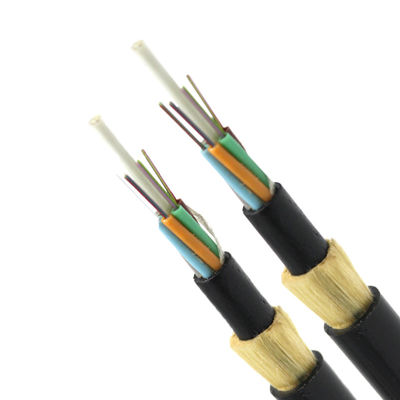

Product Description
ADSS (all-dielectric self-supporting) optical cable, due to its unique structure, insulation and high temperature resistance, and high tensile strength, provides fast and economical transmission of power communication system channels.
In general, ADSS cables are easier to install than OPGW (Optical Composite Ground Wire). It is recommended to use power lines or towers to erect ADSS cables nearby, and even ADSS cables are necessary in some places.
Application
(1) ADSS Outdoor Communication Photoelectric Composite Cable is used as the lead-in and lead-out optical cable of the OPGW system relay station. Based on its safety properties, the power isolation problem can be well solved when introducing and extracting the repeater station.
(2) Use 48 Core ADSS Fiber Optic Cable as the transmission cable of the optical fiber communication system in the high voltage (110kV-220kV)
power network. Especially in many places, it is very convenient to use it when retrofitting old communication lines.
(3) Use it for optical fiber communication system in 6kV~35kV~180kV distribution network.
Feature

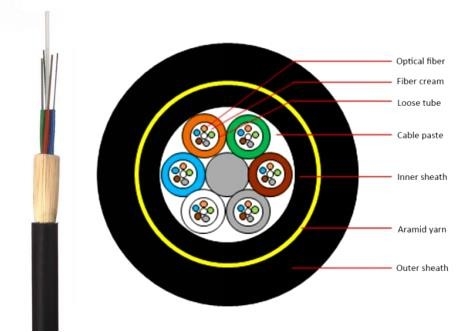

All dielectric, no metal, non-conductive; small cable diameter, large tensile force ratio; low linear expansion coefficient,
stable performance, high and low temperature resistance.
Specification
| TYPE | ADSS | |||||||
| JACKET | PE/AT | |||||||
| SPAN(m) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| OD(mm) | 12.2 | 12.4 | 12.6 | 12.9 | 13.2 | 13.6 | 13.9 | 14.2 |
| Rated tensile strength (RTS)(KN) | 15.00 | 17.50 | 20.60 | 28.00 | 30.00 | 44.00 | 55.20 | 60.40 |
| Maximum allowable tension(KN) | 6.00 | 6.90 | 8.20 | 11.50 | 12.20 | 17.50 | 21.60 | 24.20 |
| WT(Kg/km) | 132 | 134 | 138 | 144 | 148 | 164 | 173 | 178 |
| Minimum allowable bending radius(mm) | Run:15D； Laying :25D(D:OD) | |||||||
| Long-term allowable stable operation (C) | -40~+70 | |||||||
| Maximum disc length (m) | 6000 | |||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ex works
Sichuan Aitong Cable Co., Ltd. is a high-tech enterprise specializing in R & D and production of optical fiber communication (FTTH), digital TV, cable TV and Ethernet network. The company was established in Sichuan Province in 1998. China's one-stop electronic store brings together thousands of products from China's best factories and some well-known brands. Key markets:
The Chinese mainland, the United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, Philippines, South Africa, Indonesia, Mexico, Brazil and other countries.
Major High Efficiency
More than 15 years of professional experience in the industry
Strong technical production team
Advanced production equipment and perfect management process
|
|
|
|
|
|
Production and Qulaity Test
