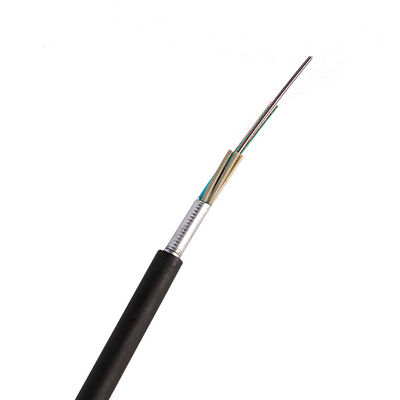

Outdoor Single Mode G657 Fiber Optics Cables GYTA 4 Core

Negotiable
MOQ
Negotiable
Price
Outdoor Single Mode G657 Fiber Optics Cables GYTA 4 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 4 Core Fibre Optics Cables
Outer Sheath Material: PE
Outer Sheath Color: Black
Metallic Strengthen Member: Steel Wire
Loose Tube Material: PBT Or Jelly
Operating Temperature: -40 Degree ~ +60 Degree
Installation Methods: Aerial &Duct
High Light:

GYTA Fiber Optics Cables

,

G657 Fiber Optics Cables

,

4 Core GYTA fiber optic cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: GYTA
Payment & Shipping Terms
Packaging Details: Wooden drum/ Customized
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100km/Day
Product Description

GYTA 4 Core Outdoor Single Mode G657 Fibre Optics Cables





Product Description



GYTA single-armored cables feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. It‘s suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.



Application of



Long distance and local area network (LAN) communication.
Aerial & conduit / duct application.



Central Strength Member:



Fiberglass reinforced Platic (FRP) or steel wire strength member.





Specification



Items Specification
Fiber Count 24
Colored Coating Fiber Dimension 250+-15μm
Color Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua.
Loose Tube Dimension 2.7+-0.1mm
Material PBT
Color Natural
Strength Member Dimension 2.0mm
Material FRP
Color Natural
Outer Jacket Dimension (8.5+-0.3)mmx(4.5+-0.2)mm
Material PE
Color Black



Fiber Count Nominal Cable Diameter(mm) Nominal Weight (kg/km) Max FiberPer Tube Max No. of (Tubes+fillers) Allowable Tensile
Load (N)
Allowable Crush
Resistance
(N/100mm)
          Short term long
term
Short
term
Long
Term
2-36 10.3 109 6 6 1500 600 1000 300
38-72 11.5 145 12 6 1500 600 1000 300
74-96 13.5 175 12 8 1500 600 1000 300
98-120 14.8 209 12 10 1700 600 1000 300
122-144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218-288 19.0 325 12 24(2 layers) 2500 600 1000 300






Outdoor Single Mode G657 Fiber Optics Cables GYTA 4 Core

Outdoor Single Mode G657 Fiber Optics Cables GYTA 4 Core





About after-sales service
1. All products are inspected and tested before shipment. If you are not satisfied with the product, you can exchange it within 7 days, and you must contact us within 24 hours after receiving the product.
2. Shipping and handling are non-refundable costs, and the customer is responsible for all return and re-shipment costs.
3. All returned goods must remain in their original condition, including boxes and accessories. Man-made defects, such as breakages, scratches, etc., are not warranted.
4. For any item, use ems or your mailing address when returning the item.


FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in Deyang city.
You can fly to Sichuan international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? How long do you need to prepare my goods?
A8: Delivery (no more than 200 rolls) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.

Outdoor Single Mode G657 Fiber Optics Cables GYTA 4 Core
