Single Mode Fiber Optic Drop Wire GJXH FTTH G652D LSZH Sheath

Negotiable
MOQ
$0.02-0.04/meter
Price
Single Mode Fiber Optic Drop Wire GJXH FTTH G652D LSZH Sheath
Features Gallery Product Description Request A Quote
Features
Specifications
Application: FTTX,FTTH FTTB FTTX Network,Telecom
Nominal Cross Section: 3.0m 4.0m
Color: Black,black/white,White Or As Required
Type: Butterfly Drop,Self-supporting
Number Of Cores: 1.2.4
Length: 1km Or 2km,Customized
Reinforcement: Steel Wire
Operating Temperature: -40℃- +70℃
High Light:

GJXH fiber optic drop wire

,

FTTH fiber optic drop wire

,

GJXH fiber drop wire

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001/ISO14001/ISO25001
Model Number: GJXH 1B core
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8days
Payment Terms: L/C, T/T, T/T, Western Union, MoneyGram
Supply Ability: 150000KM/mouth
Product Description

GJXH 1B Core Single Mode G652D/G657A LSZH Sheath GJXH FTTH Fiber Optic Cable





Detailed Product Description



This cable is 1-4 core, more commonly used in client to spectral points, size 2.0 * 3.0 (ordinary), black for outdoor (uv), white inside the corridor for wiring (beautiful), as well as other color such as yellow, G657 fiber structure for the center, on both sides of the parallel metal or nonmetal reinforcement (hs), outer security for low smoke zero halogen sheath material, The G657 fiber bending radius is 15-20mm, which reduces the loss during bending. Special stripper is used when connecting, and fast connector or cold connector can be added to the user panel





Application

  • Indoor single core leather cable
  • R groove design, easy to peel
  • Easy connection, easy installation and maintenance

Characteristics

  1. Small bending radius and excellent flexibility meet all kinds of indoor wiring environment of optical fiber to the home
  2. Adopting the fiber core which conforms to and is superior to THE STANDARD OF ITU G.657, it has the highest cost performance ratio in the same type of products at present
  3. FTTH application occasions: no weak current pipeline or remaining space, flat floor without suspended ceiling, wiring distribution box to floor end box, floor wiring distribution box to each user's indoor end, old area transformation, residential area

General Specifications:



Cable Type FTTH(Drop Cable)
Fiber Type SM G657A1/ SM G657A2
Application FTTH, LAN
Recommended installation methods Aerial
Environment Indoor
Temperature Range -40℃ to 70℃


Fiber Specifications:



Fiber style Unit SM
G652D
SM
G657A1
SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm ≧1180,≤1330 ≧1180,≤1330 ≧1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4

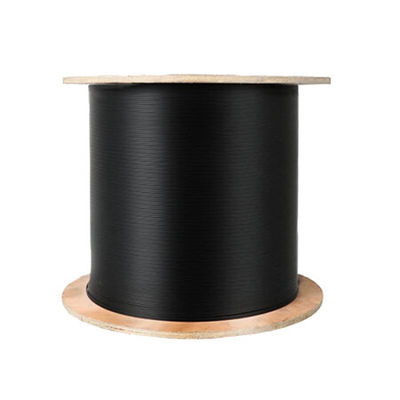

Single Mode Fiber Optic Drop Wire GJXH FTTH G652D LSZH Sheath



Standard Color Identification of Fiber

No. 1 2 3 4
Color Blue Orange Green Brown



Cable Design

Item Description
Model No GJXH/GJFXH
1. Fiber count 1 Core , 2 Core, 4 Core
2. Cable Diameter 3.0*2.0mm
3. Cable Weight 11.5KGS/9.5KGS
4. Strength member
- Material Steel/FRP
- Diameter 0.45mm
5. Outer Sheath
- Material LSZH (Black/white)
6. Sheath marking
- Type of marking Laser printing





Packing

Items Description
Cable length 1KM or 2KM per reel
Package material drum+carton
Package size 1KM 31.5*21*32.5cm
2KM 34.5*28*35cm





FAQ



Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3: How about the cable's quality?
A3: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A4: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5: Do you accept the OEM order and how many is the MOQ?
A5: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
