GJXFH 1B Single Mode Outdoor Aerial Optic FTTH Fiber Cable
▌Product description
FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), orother contracted material.Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.
▌Application
▌Characteristics
▌Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
|
▌Structure and Technical Specifications
| Fiber Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
(N/100mm) |
Crush Resistance (N/100mm) |
|||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 3.0*2.0 | 9.0 | 80/200 | 40/100 | 1000/2200 | 500/1000 | |
Note :
1. This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2. The cable core use the colored coating fiber of 250μm.
3. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
▌We produce and test cable compl with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow |
IEC 60794-1-E14 |
|
Part Number
|

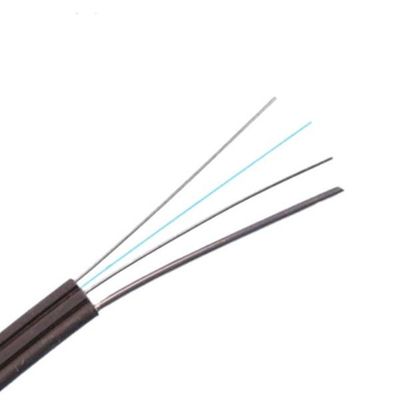

Drop Cable GJXFH Single Mode Outdoor Aerial Optic FTTH Fiber Cable
|
|
|
Fiber Count
|
1/2/4 core
|
|
|
Strength Member
|
Two parallel FRP/Steel wire
|
|
|
Cable Dimension (WxH approx.)
|
(2.0±0.2)x(3.0±0.2)mm
|
|
|
Out Jacket
|
LSZH
|
|
|
Out Jacket color
|
black or white
|
|
|
Application
|
FTTH cable (Fiber to the home), used indoor, Access network
|
|
|
Items
|
|
Unit
|
G.657A1 Specification
|
|
Mode Field Diameter
|
1310nm
|
μm
|
9.0±0.4
|
|
1550nm
|
μm
|
10.1±0.5
|
|
|
Cladding Diameter
|
μm
|
124.8±0.7
|
|
|
Cladding Non-Circularity
|
%
|
≤0.7
|
|
|
Core-Cladding Concentricity Error
|
μm
|
≤0.5
|
|
|
Coating Diameter
|
μm
|
245±5
|
|
|
Coating Non-Circularity
|
%
|
≤6.0
|
|
|
Cladding-Coating Concentricity Error
|
μm
|
≤12.0
|
|
|
Cable Cutoff Wavelength
|
nm
|
λcc≤1260
|
|
|
Attenuation (max.)
|
1310nm
|
dB/km
|
≤0.35
|
|
1550nm
|
dB/km
|
≤0.21
|
|
|
Macro-Bending Loss
|
1turn×10mm radius@1550nm
|
dB
|
≤0.75
|
|
1turn×10mm radius@1550nm
|
dB
|
≤1.5
|
|
|
NO.
|
Item
|
Requirement
|
|
|
1
|
Allowable Tensile Strength
|
Short Term
|
80N
|
|
Long Term
|
40N
|
||
|
2
|
Allowable Crush Resistance
|
Long Term
|
1000 (N/100mm)
|
|
Long Term
|
500 (N/100mm)
|
||
|
3
|
Minimum Static Bend Radius
|
10 times
|
|
|
4
|
Minimum Dynamic Bend Radius
|
20 times
|
|
|
5
|
Operation Temperature
|
40℃~+70℃
|
|
|
6
|
Nominal Cable
|
Diameter
|
(2.0±0.2)x(3.0±0.2)mm
|
|
Weight
|
9.2kg/km
|
||
|
7
|
Fiber Color Code
|
01- Blue, 02- Orange, 03- Green, 04- Brown
|
|
▌Product mix
 |
|
|
▌Application scenario
|
▌Standard Color Identification of Fiber
| No. | 1 | 2 | 3 | 4 |
| Color | Blue | Orange | Green | Brown |
▌Cable Design
| Item | Description |
| Model No | GJXH/GJXFH |
| 1. Fiber count | 1 Core , 2 Core, 4 Core |
| 2. Cable Diameter | 3.0*2.0mm |
| 3. Cable Weight | 11.5KGS/9.5KGS |
| 4. Strength member | |
| -Material | Steel/FRP |
| -Diameter | 0.45mm |
| 5.Outer Sheath | |
| -Material | LSZH (Black/white) |
| 6. Sheath marking | |
| -Type of marking | Laser printing |
▌Packing
|
| Items | Description | |
| Cable length | 1KM or 2KM per reel | |
| Package material | drum+carton | |
| Package size | 1KM | 31.5*21*32.5cm |
| 2KM | 34.5*28*35cm | |
