MDPE/HDPE Double Sheath 4 Core GYTA53 Armored Outdoor Fiber Optic Cable
▌Product overview
The structure of GYTA53 optical cable is 250 μ M optical fiber is sheathed in a loose tube made of high modulus material, which is filled with waterproof compound. The center of the cable core is a metal reinforced core. For optical cables with some cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gap in the cable core is filled with water blocking filler. Plastic coated aluminum strip (APL) is longitudinally wrapped and extruded with a layer of polyethylene inner sheath, and double-sided plastic coated steel strip (PSP) is longitudinally wrapped and extruded with polyethylene sheath to form a cable.
▌Application
♦ Adopted to Outdoor distribution fiber optic cable system .
♦ Suitable for aerial .duct pipeline, direct burried installation lashing menthod
♦ Long distance and local area network(LAN) communication system.
| Item Name | GYTA53 Fiber Optic Cable |
| Fiber Type | Single mode ITU-T G652D |
| Fiber No. | 2-144 cores |
| Strength Member | Central Steel Wire/Metal |
| Armoured | Double Steel Tape |
| Material of Jacket | Black Polyethylene (PE) |
| Cable Structure | Stranded Loose Tube |
| Certificate | ISO9001/CE/RoHS/CE |
| Storing Temperature | -40℃ to +70℃ |
| Application | Duct/Aerial |
| Product Keywords | duct fiber fiber cable,cable outdoor fiber optic,armored 48 core fiber optic cable 2km |
▌Standards
| 号 | 芯数 | 外径(mm) | 重量kg/km | 允许拉伸力长期/短期 | 允许压扁力长期/短期 |
| GYTA53 | 8 | 13.2 | 183 | 1000N/3000N | 1000N/3000N |
| 12 | 13.6 | 189 | 1000N/3000N | 1000N/3000N | |
| 16 | 13.6 | 191 | 1000N/3000N | 1000N/3000N | |
| 24 | 13.6 | 195 | 1000N/3000N | 1000N/3000N | |
| 36 | 13.8 | 198 | 1000N/3000N | 1000N/3000N | |
| 48 | 14.4 | 201 | 1000N/3000N | 1000N/3000N |
▌Technical Specification
| Parameter | Unit | Life Cycle | 2-24F | 36F | 48F | 72F | 96F |
| Minimum Tensile Strength | N | short term | 3000 | 3000 | 3000 | 3000 | 3000 |
| long term | 1000 | 1000 | 1000 | 1000 | 1000 | ||
| Minimum Crush Load | N/100mm | short term | 3000 | 3000 | 3000 | 3000 | 3000 |
| long term | 1000 | 1000 | 1000 | 1000 | 1000 | ||
| Minimum Bending Radius | N/100mm | short term | 20D | 20D | 20D | 20D | 20D |
| long term | 10D | 10D | 10D | 10D | 10D | ||
| Storage Temperature | ℃ | -40 to +60 | |||||
▌Optical Characteristic
| Parameter | Unit | G.652 | 62.5/125µm | 50/125µm | |||
| Attenuation | dB/km | 1310nm | ≤0.36 | 850nm | ≤3.0 | 850nm | ≤3.0 |
| 1550nm | ≤0.22 | 1310nm | ≤1.0 | 1310nm | ≤1.0 | ||
| Bandwidth | MHz·km | - | - | 850nm | ≥600 | 850nm | ≥200 |
| - | - | 1300nm | ≥1200 | 1300nm | ≥600 | ||
| Numerical Aperture | NA | - | 0.275±0.015 | 0.200±0.015 | |||
| Cable Cut-off Wavelength | λcc(nm) | ≤1260 | - | - | |||
▌Order Information
| Fiber Count | Part Number | Application | Cable Diameter | Weight (kg/km) |
| (mm) | ||||
| Singlemode 9/125 OS2 | ||||
| 2F | GYTA53-OS2-2F | Direct Buried | 12.5 | 200 |
| 4F | GYTA53-OS2-4F | Direct Buried | 12.5 | 200 |
| 6F | GYTA53-OS2-6F | Direct Buried | 12.5 | 200 |
| 8F | GYTA53-OS2-8F | Direct Buried | 12.5 | 200 |
| 12F | GYTA53-OS2-12F | Direct Buried | 12.5 | 200 |
| 24F | GYTA53-OS2-24F | Direct Buried | 12.5 | 200 |
| 36F | GYTA53-OS2-36F | Direct Buried | 12.5 | 200 |
| 48F | GYTA53-OS2-48F | Direct Buried | 12.5 | 210 |
| 72F | GYTA53-OS2-72F | Direct Buried | 14 | 210 |
| 96F | GYTA53-OS2-96F | Direct Buried | 14.5 | 230 |
| Multimode 62.5/125 OM1 | ||||
| 2F | GYTA53-OM1-2F | Direct Buried | 12.5 | 200 |
| 4F | GYTA53-OM1-4F | Direct Buried | 12.5 | 200 |
| 6F | GYTA53-OM1-6F | Direct Buried | 12.5 | 200 |
| 8F | GYTA53-OM1-8F | Direct Buried | 12.5 | 200 |
| 12F | GYTA53-OM1-12F | Direct Buried | 12.5 | 200 |
| 24F | GYTA53-OM1-24F | Direct Buried | 12.5 | 200 |
| 36F | GYTA53-OM1-36F | Direct Buried | 12.5 | 200 |
| 48F | GYTA53-OM1-48F | Direct Buried | 12.5 | 210 |
| 72F | GYTA53-OM1-72F | Direct Buried | 14 | 210 |
| 96F | GYTA53-OM1-96F | Direct Buried | 14.5 | 230 |
| Multimode 50/125 OM2 | ||||
| 2F | GYTA53-OM2-2F | Direct Buried | 12.5 | 200 |
| 4F | GYTA53-OM2-4F | Direct Buried | 12.5 | 200 |
| 6F | GYTA53-OM2-6F | Direct Buried | 12.5 | 200 |
| 8F | GYTA53-OM2-8F | Direct Buried | 12.5 | 200 |
| 12F | GYTA53-OM2-12F | Direct Buried | 12.5 | 200 |
| 24F | GYTA53-OM2-24F | Direct Buried | 12.5 | 200 |
| 36F | GYTA53-OM2-36F | Direct Buried | 12.5 | 200 |
| 48F | GYTA53-OM2-48F | Direct Buried | 12.5 | 210 |
| 72F | GYTA53-OM2-72F | Direct Buried | 14 | 210 |
| 96F | GYTA53-OM2-96F | Direct Buried | 14.5 | 230 |

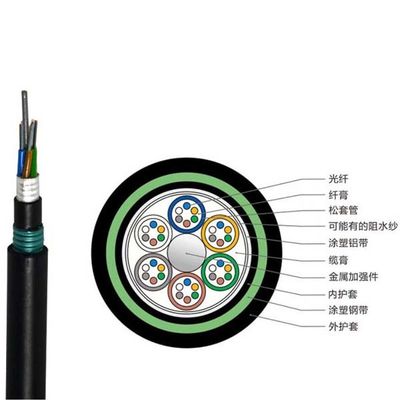

▌Product diagram
 |
|
▌Packaging
|
|
Number of cores | packaging | volume | Packing weight | ||||
| diameter | height | Middle hole diameter | ||||||
| 2 | wood | 650 | 1100 | 400 | 50 | |||
| 4 | wood | 650 | 1100 | 400 | 50 | |||
| 6 | wood | 650 | 1100 | 400 | 50 | |||
| 8 | wood | 650 | 1100 | 400 | 50 | |||
| 12 | wood | 650 | 1100 | 400 | 50 | |||
| 24 | wood | 650 | 1100 | 400 | 50 | |||
| 36 | wood | 650 | 1200 | 450 | 65 | |||
| 48 | wood | 650 | 1200 | 450 | 65 | |||
| 72 | wood | 650 | 1300 | 450 | 80 | |||
| 84 | wood | 650 | 1300 | 450 | 80 | |||
| 96 | Wood + steel frame | 800 | 1400 | 750 | 90 | |||
| 144 | Wood + steel frame | 800 | 1600 | 750 | 95 | |||
| 288 | Wood + steel frame | 800 | 1600 | 750 | 95 | |||
|
1. Standard Packaging: b. Standard Code(Product Type, Fiber Type,Fiber Count) |
