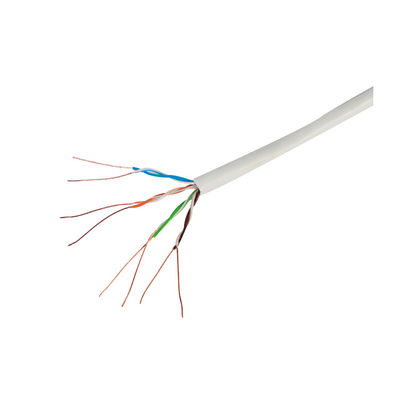

Unshielded Bare Copper CAT5e Lan Cable 24awg UTP 4P Twisted Pair 305m Grey
▌ Product description
▌Construction
▌Electrical performance
Working voltage: 12 V, 100% through FLUKE test.
▌Appliacation
Computer Network Cabling, Broadband Network Communication, Ethernet Network, Audio and Data Transmission.
Designed for network adapters, hubs, switches, DSL/cable, modems, patch panels, and other twisted-pair applications.
▌Parameter
| Model | Cat5e UTP Cable |
| Conductor | BC/CCA/CCAG |
| Conductor Size | AWG 24 |
| Number of Conductor | 4 Pairs / 8 Cores |
| Insulation | HDPE |
| Outer Jacket | PVC / LSZH |
| PVC Jacket Color | As your request |
| Certification | CE, RoHS, REACH, UL |
▌Electrical characteristics (20 ° C)
| Frequency | Attenuation(Max) | PS NEXT (Min) | NEXT(Min) | PS ELFEXT (Min) | ELFEXT (Min) | TCL(Min) | EL TCL(Min) | RL(Min) |
| MHz | dB | dB | dB | dB/100m | dB/100m | dB | dB | dB |
| 4 | 4.05 | 53.27 | 56.27 | 48.96 | 51.96 | 44 | 23 | 23.01 |
| 8 | 5.77 | 48.75 | 51.75 | 42.94 | 45.94 | 41 | 16.9 | 24.52 |
| 10 | 6.47 | 47.3 | 50.3 | 41 | 44 | 40 | 15 | 25 |
| 16 | 8.25 | 44.24 | 47.24 | 36.92 | 39.92 | 38 | 10.9 | 25 |
| 20 | 9.27 | 42.78 | 45.78 | 34.98 | 37.98 | 37 | 9 | 25 |
| 25 | 10.42 | 41.33 | 44.33 | 33.04 | 36.04 | 36 | 7 | 24.32 |
| 31.25 | 11.72 | 39.88 | 42.88 | 31.1 | 34.1 | 35.1 | / | 23.64 |
| 50 | 15.07 | 36.82 | 39.82 | 27.02 | 30.02 | 32 | / | 22.21 |
| 62.5 | 16.99 | 35.36 | 38.36 | 25.08 | 28.08 | 30 | / | 21.54 |
| 100 | 21.98 | 32.3 | 35.3 | 21 | 24 | 20.11 |
▌Physical characteristics
| Conductor diameter | 0.50 mm (24 AWG) | |||||||
| Insulation diameter | 0.90 mm | |||||||
| Jacketed tiknes | 0.52 mm | |||||||
| Cable diameter | 5.0 mm | |||||||
| Distorted pitch (mm) | ≤20 | |||||||
| Cable spacing (mm) | ≤130 | |||||||
▌Other features
| Delayed tilt (NS / 100 m) | 45 |
| Propagation speed (NVP) | 69% |
| Propagation delay at 100 MHz (NS / 100M) | <537.6 |
| Characteristic impedance (frequency: 1-200 MHz) | 100 ± 15 Ω |
| 30 ° C coupling attenuation | 4.5MHz (dB) |
 |
|
▌Panking
| |
|
Cable weight | Gross weight | |||||
| 9.3kg | 10kg | |||||||
| Box size (CM) | Specifications | |||||||
| 21.5×35×35 | 305m/box | |||||||
▌Application scenario
|
|
|
|
| Network TV | Desktop computer | Notebook computer | Printer |
|
|
|
|
| Router | Set top box | Cabinet | Camera |
▌Frequently asked question (FAQ)
Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.
Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and quantity.
Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight fee.
Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.
Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.
Q: How long is the lead time?
— Usually it’s about 10-14 days.
