24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard

Communication
MOQ
Communication
Price
24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Origin: Sichuan,china
Product Name: Generic Cabling (FTP) Category 305m CCA Line 24awg Standard Ethernet Cat5e Lan Cable
Model: FTP Category 5 Indoor Cable
Brand: Aitong
Minimum Order Quantity: 100 Pieces
Price: As Required
Packing Details: 305 M / Winding Box
Delivery Time: 7-15 Working Days
Term Of Payment: Letter Of Credit, Telegraphic Transfer
Supply Capacity: 50000 M / Day
High Light:

CAT5e Lan Cable 24awg

,

CAT5e Lan Cable 305m

,

FTP category 5 lan cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: cat-5e-UTP
Payment & Shipping Terms
Packaging Details: 425mm*425mm*225mm
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 winding box day
Product Description

24AWG ANATEL Non Shield Copper PVC 305m CCA Line 24awg Standard Ethernet Cat5e Lan Cable



 Product description

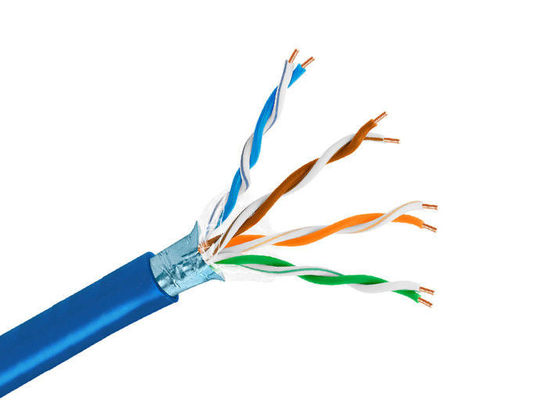

  • Cat5e-ftp-cca is a shielded twisted pair (FTP) category 5E, which is designed for building internal structure network. The shielding layer is made of aluminum foil.
  • The diameter of single chain wire made of copper clad aluminum is 0.515 mm (24awg). The length of the cable is 305 meters.
  • The wire insulation is made of high density polyethylene (HDPE) with high mechanical resistance. The diameter of the insulated conductor is 1.03 mm.
  • The coat made of PVC is gray ral7035. The outer diameter of the cable is 6.2mm.



Construction

Connectix Cat

  • Conductor diameter mm: 24 gauge single strand copper
  • Insulation diameter mm: 0.92 HDPE FRP 100% FEP
  • Outer cover diameter mm: 5.3
  • Minimum bending radius (standing): 0. D.x.6
  • Minimum bending radius (installation): 0. D.x.8
  • Maximum tension n: 86.6
  • Skin: frpvc
  • Shielding: Polyester aluminum film / polyester film / tinned copper mesh
  • Ground wire: 24awg gauge tinned single copper wire
  • Packing: carton





Appliacation

  •
  • Internet Intranet
  • CAD (computer graphics) cam (numerical control manufacturing), broadband environment for medical, financial, banking and building installation
  • VOIP voice over IP (VoIP)
  • Gigabit Ethernet
  • 100Mbps distributed data interface
  • ATM155



▌Parameter



onstruction Indoor generic cabling (FTP) category 305m CCA line 24awg standard Ethernet Cat5e Lan cable
Operating temperature (T-T) -20˚C to +70˚C
Conforms to IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire Rating Cca,s1.d0,a1
Inner Conductor 24 AWG plain copper
Insulation High density polyethylene
Colour Code Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
Jacket FR-LSZH
Overall Diameter 5.4 +/- 0.4 mm
Min. Bending Radius Installation 44mm
Min. Bending Radius Installed 22mm
DC Resistance < 9.4 Ω/100 m
Velocity Ratio 69%
Installation temperature (T-T) 0˚C to +50˚C



Mechanical Properties



Bending radius Installation 8 x D
Installed 4 x D
Temperature range During operation -40°C to + 85°C
During installation -15°C to + 50°C
Fire load 4 pair 515 MJ/km
Maximum tensile load During operation No load
During installation 130 N



Electrical Properties at 20°C



DC loop resistance   £ 158 Ω/km
Resistance unbalance   £ 2%
Insulation resistance (500 V) ³ 5000 MΩxkm
Capacitance at 800 Hz Nom. 43 nF/km
Capacitance unbalance (pair to ground) £ 1500 pF/km
Mean Characteristic impedance @ 100 MHz) 100 ± 5 Ω
Nominal velocity of propagation   0,75c
Propagation delay   £ 450 ns/100 m
Delay skew   £ 15 ns/100 m
Transfer impedance at 1 MHz £ 10 mΩ /m
at 10 MHz £ 8 mΩ /m
at 30 MHz £ 10 mΩ /m
Coupling attenuation   ³ 85 dB
Segregation classification Acc. to EN 50174-2 “D”





Nominal Transmission characteristics at 20°C



F



(MHz)

Attenuation



(dB/100m)

NEXT



(dB)

ACR



(dB/100m)

Return loss



(dB)

PS-NEXT



(dB)

PS-ACR



(dB/100m)

ELFEXT



(dB/100m)

PS-ELFEXT



(dB/100m)

1 2,1 90 88   87 85 85 82
4 4,0 90 86 27 87 83 85 82
10 6,3 90 84 30 87 81 79 76
16 8,0 90 82 30 87 79 75 72
20 9,0 90 81 30 87 78 73 70
31.25 11,4 90 79 30 87 76 69 66
62.50 16,5 86 70 30 83 67 63 60
100 21,3 83 62 30 80 59 59 56
155.00 24,2 81 57 26 78 54 57 54
200.00 31,5 78 47 25 75 44 53 50
250.00 35,8 77 41 25 74 38 51 48
300.00 47,1 73 26 23 70 23 47 44
600.00 60,1 71 11 20 68 8 44 41





▌Product mix


24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard


Panking



 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard  24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard Cable weight Gross weight
9.3kg 10kg
Box size (CM) Specifications
21.5×35×35 305m/box



Application scenario



24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard
Network TV Desktop computer Notebook computer Printer
24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard
Router Set top box Cabinet Camera



Frequently asked question (FAQ)

Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.

Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and quantity.

Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight fee.

Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.

Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.

Q: How long is the lead time?
— Usually it’s about 10-14 days.
