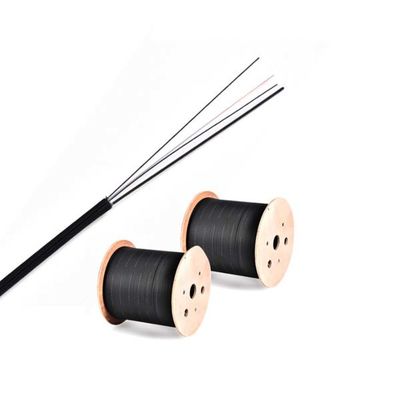

GJYXCH 4B Colour Customized FTTH Single Mode Drop Cable With steel messenger
Description
The FTTH Single Mode Drop Cable GJYXCH optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
Features
1. Compact structure of protable, convenient for indoor wiring.
2. Excellent resistance to lateral pressure protection design.
3. Soft, flexible, easy to splice, and high practicability.
4. Environmental protection. Low smoke, zero alogen and flame retardant sheath.
Applications
1. Used in indoor outdoor cabling,especially used for FTTH.
2. Used as access building cable.
Cable Parametres
| Model No. | Fiber count (core) | Cable diametre (mm) | Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N) | Bending Radius Static/Dynamic (mm) |
| GJYXCH | 1 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 4 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
We produce and test cable comply with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Why Choose Us?
Production and Qulaity Test
Packing and Delivery
|
|
FAQ
1. Are you the real manufacturer?
Us. We are the real manufacturer with 31 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
