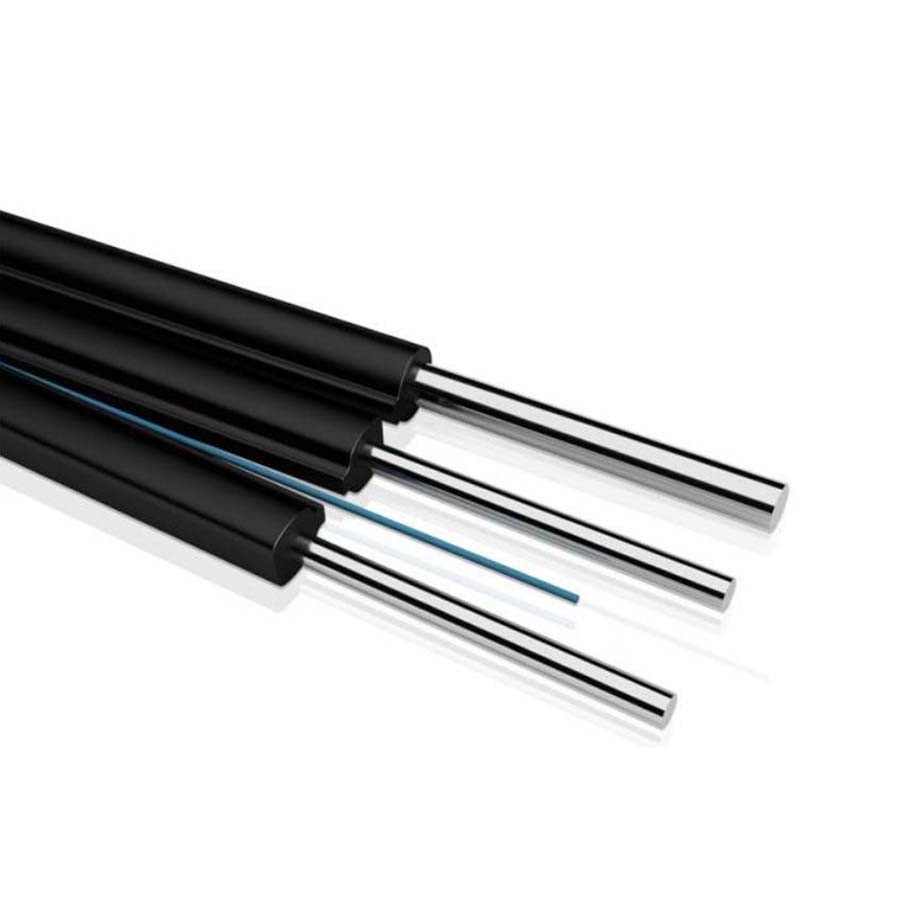

FTTH Single Mode Butterfly Drop Cable Fiber Optic Wire Steel Messenger
Description
Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the
section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network
users to introduce the section of the optical cable.
Features
1. Soft, flexible, easy to splice, and high practicability.
2. Compact structure of protable, convenient for indoor wiring.
3. Excellent resistance to lateral pressure protection design.
4. Environmental protection. Low smoke, zero alogen and flame retardant sheath.
Applications
1. Used as access building cable.
2. Used in indoor outdoor cabling,especially used for FTTH.

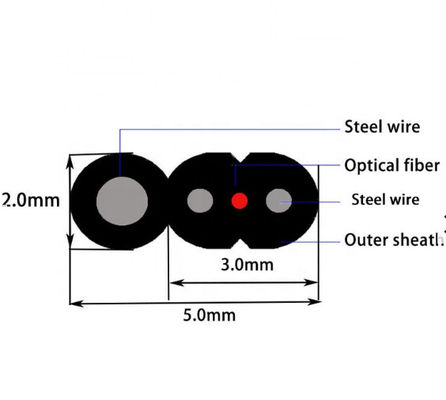

Cable Parametres
| Model No. | Fiber count (core) | Cable diametre (mm) | Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N) | Bending Radius Static/Dynamic (mm) |
| GJYXCH | 1 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 4 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
We produce and test cable comply with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Why Choose Us?
Production and Qulaity Test
Packing and Delivery
|
|
FAQ
1. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
2. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
3. Are you the real manufacturer?
Us. We are the real manufacturer with 31 year’s history.
4. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
5. How to Store the Optical Fiber Cable Properly?

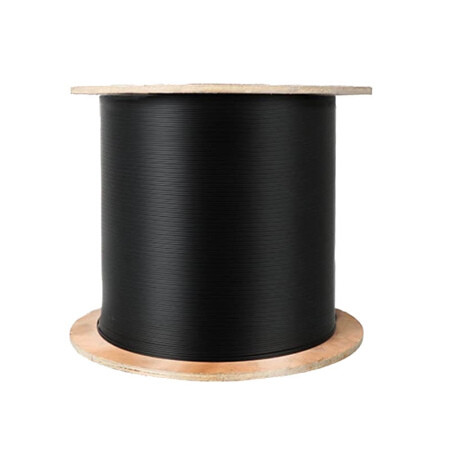

Us. Store the drum indoor before using, the drum should place sideways not on the end.
6. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
