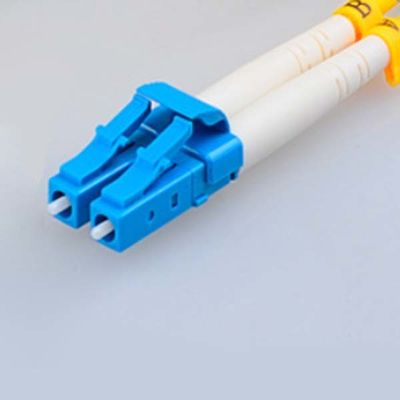

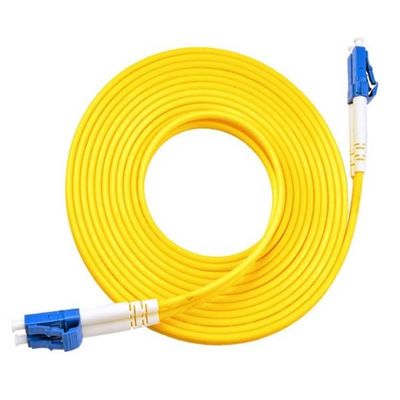

LC-LC Carrier Grade Single-Mode Single Core Pigtail 30M Extension Cable Fiber Optic Pigtail
▌Product description
Fiber optic jumper is a very reliable component with low insertion loss and return loss. They come with a simplex or duplex cable configuration of your choice. A wide variety of fiber optic cords are terminated with state-of-the-art connectors and provide any combination of St, SC, LC and St with UPC or APC polishing type to meet your standard or custom configuration
▌Features
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
>40dB
|
>50dB
|
>60dB
|
/
|
|
Exchange
|
≤0.2dB
|
|||
|
Repeatability
|
≤0.2dB
|
|||
|
Service life
|
>1000times
|
|||
|
Tensile strength
|
>10kg
|
|||
|
Temperature range
|
-40℃ to +85℃
|
|||
|
Fiber Mode
|
Connector1Type
|
Connector2Type
|
Cable Type
|
Length of Fiber/Cable
|
|
S=Single mode
M=Multimode
P=PM fiber
X=others
|
SC=SC/PC
FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others |
SC=SC/PC
FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others |
1=0.9mm
2=2mm 3=3mm x=Others |
01=1.0m
02=2.0m 03=3.0m 04=4..0m xx=others |
▌Fiber optic connectors summary
 |
All standard connectors (SC, FC, LC, ST, SMA, E2000, MU) are available. Those connectors can be put on patchords, pigtails or components with single-mode (SM), multi-mode (MM), polarization maintaining (PM), polarized (PZ), Photonic-crystal (PCF), hollow-core (HC) or micro-structured fibers. The company also realizes fiber optic connectors testing. IDIL fibres Optiques proposes specific and high quality customized solutions. Do not hesitate to contact the company. A wide range of coating materials, with different dimensions (900 µm, 3 mm…) and cladding (stainless steel (SST), PVC, coated fiberglass…) is available. Optical fibers are supplied with special coating materials (aluminium, polyimide, gold,…) when they are intended to be used in a harsh or specific environment. |
▌Scene
|
|
|
| LAN |
Monitoring equipment |
Fiber to home |
|
|
|
| Communication products | Cable TV | Optical fiber Machine room allocation |
▌Packaging & Shipping
|
|
1.Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable. 2.Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement. |
▌FAQ
|
Why we can choose you? 1): Reliable---we are the real company, we dedicate in win-win 2): Professional---we offer the products exactly you want 3): Factory---we have factory, so have reasonable price
How about the shipping cost? If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.
How about the price?Can you make it cheaper? The price depends on the item your demand(quantity) Beat quotation after receving full description of the item you want.
How about the sample time?What is the payment? Sample time:3~10days after order & samples confirmed. T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, west union. |
