MDPE/HDPE Double Sheath 12 Core GYTA53 Armored Outdoor Fiber Optic Cable
▌Product overview
GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double-
jacket structure provide the cable nice properties of moisture resistance and crush resistance.
▌Feature
▌APPLICATION
Item Name | GYTA53 Fiber Optic Cable |
Fiber Type | Single mode ITU-T G652D |
Fiber No. | 2-144 cores |
Strength Member | Central Steel Wire/Metal |
Armoured | Double Steel Tape |
Material of Jacket | Black Polyethylene (PE) |
Cable Structure | Stranded Loose Tube |
Certificate | ISO9001/CE/RoHS/CE |
Storing Temperature | -40℃ to +70℃ |
Application | Duct/Aerial |
Product Keywords | duct fiber fiber cable,cable outdoor fiber optic,armored 48 core fiber optic cable 2km |
▌Standards
model | Number of cores | external diameter(mm) | weight kg/km | Allowable tensile force long term / short term | Allowable flattening force long term / short term |
GYTA53 | 8 | 13.2 | 183 | 1000N/3000N | 1000N/3000N |
12 | 13.6 | 189 | 1000N/3000N | 1000N/3000N | |
16 | 13.6 | 191 | 1000N/3000N | 1000N/3000N | |
24 | 13.6 | 195 | 1000N/3000N | 1000N/3000N | |
36 | 13.8 | 198 | 1000N/3000N | 1000N/3000N | |
48 | 14.4 | 201 | 1000N/3000N | 1000N/3000N |
▌Technical Specification
Parameter | Unit | Life Cycle | 2-24F | 36F | 48F | 72F | 96F |
Minimum Tensile Strength | N | short term | 3000 | 3000 | 3000 | 3000 | 3000 |
long term | 1000 | 1000 | 1000 | 1000 | 1000 | ||
Minimum Crush Load | N/100mm | short term | 3000 | 3000 | 3000 | 3000 | 3000 |
long term | 1000 | 1000 | 1000 | 1000 | 1000 | ||
Minimum Bending Radius | N/100mm | short term | 20D | 20D | 20D | 20D | 20D |
long term | 10D | 10D | 10D | 10D | 10D | ||
Storage Temperature | ℃ | -40 to +60 |
▌Optical Characteristic
Parameter | Unit | G.652 | 62.5/125µm | 50/125µm | |||
Attenuation | dB/km | 1310nm | ≤0.36 | 850nm | ≤3.0 | 850nm | ≤3.0 |
1550nm | ≤0.22 | 1310nm | ≤1.0 | 1310nm | ≤1.0 | ||
Bandwidth | MHz·km | - | - | 850nm | ≥600 | 850nm | ≥200 |
- | - | 1300nm | ≥1200 | 1300nm | ≥600 | ||
Numerical Aperture | NA | - | 0.275±0.015 | 0.200±0.015 | |||
Cable Cut-off Wavelength | λcc(nm) | ≤1260 | - | - |
▌Order Information
Fiber Count | Part Number | Application | Cable Diameter | Weight (kg/km) |
(mm) | ||||
Singlemode 9/125 OS2 | ||||
2F | GYTA53-OS2-2F | Direct Buried | 12.5 | 200 |
4F | GYTA53-OS2-4F | Direct Buried | 12.5 | 200 |
6F | GYTA53-OS2-6F | Direct Buried | 12.5 | 200 |
8F | GYTA53-OS2-8F | Direct Buried | 12.5 | 200 |
12F | GYTA53-OS2-12F | Direct Buried | 12.5 | 200 |
24F | GYTA53-OS2-24F | Direct Buried | 12.5 | 200 |
36F | GYTA53-OS2-36F | Direct Buried | 12.5 | 200 |
48F | GYTA53-OS2-48F | Direct Buried | 12.5 | 210 |
72F | GYTA53-OS2-72F | Direct Buried | 14 | 210 |
96F | GYTA53-OS2-96F | Direct Buried | 14.5 | 230 |
Multimode 62.5/125 OM1 | ||||
2F | GYTA53-OM1-2F | Direct Buried | 12.5 | 200 |
4F | GYTA53-OM1-4F | Direct Buried | 12.5 | 200 |
6F | GYTA53-OM1-6F | Direct Buried | 12.5 | 200 |
8F | GYTA53-OM1-8F | Direct Buried | 12.5 | 200 |
12F | GYTA53-OM1-12F | Direct Buried | 12.5 | 200 |
24F | GYTA53-OM1-24F | Direct Buried | 12.5 | 200 |
36F | GYTA53-OM1-36F | Direct Buried | 12.5 | 200 |
48F | GYTA53-OM1-48F | Direct Buried | 12.5 | 210 |
72F | GYTA53-OM1-72F | Direct Buried | 14 | 210 |
96F | GYTA53-OM1-96F | Direct Buried | 14.5 | 230 |
Multimode 50/125 OM2 | ||||
2F | GYTA53-OM2-2F | Direct Buried | 12.5 | 200 |
4F | GYTA53-OM2-4F | Direct Buried | 12.5 | 200 |
6F | GYTA53-OM2-6F | Direct Buried | 12.5 | 200 |
8F | GYTA53-OM2-8F | Direct Buried | 12.5 | 200 |
12F | GYTA53-OM2-12F | Direct Buried | 12.5 | 200 |
24F | GYTA53-OM2-24F | Direct Buried | 12.5 | 200 |
36F | GYTA53-OM2-36F | Direct Buried | 12.5 | 200 |
48F | GYTA53-OM2-48F | Direct Buried | 12.5 | 210 |
72F | GYTA53-OM2-72F | Direct Buried | 14 | 210 |
96F | GYTA53-OM2-96F | Direct Buried | 14.5 | 230 |

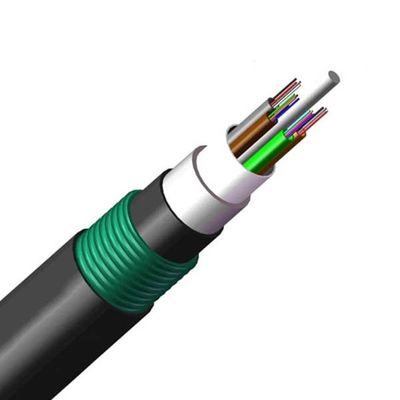

▌Product diagram
▌Packaging
Number of cores | packaging | volume | Packing weight | |||||
diameter | height | Middle hole diameter | ||||||
2 | wood | 650 | 1100 | 400 | 50 | |||
4 | wood | 650 | 1100 | 400 | 50 | |||
6 | wood | 650 | 1100 | 400 | 50 | |||
8 | wood | 650 | 1100 | 400 | 50 | |||
12 | wood | 650 | 1100 | 400 | 50 | |||
24 | wood | 650 | 1100 | 400 | 50 | |||
36 | wood | 650 | 1200 | 450 | 65 | |||
48 | wood | 650 | 1200 | 450 | 65 | |||
72 | wood | 650 | 1300 | 450 | 80 | |||
84 | wood | 650 | 1300 | 450 | 80 | |||
96 | Wood + steel frame | 800 | 1400 | 750 | 90 | |||
144 | Wood + steel frame | 800 | 1600 | 750 | 95 | |||
288 | Wood + steel frame | 800 | 1600 | 750 | 95 |
