1 Core GJYXCH Black FTTH Fiber Optic Cable Bow Type Drop Cable

10KM
MOQ
Negotiate
Price
1 Core GJYXCH Black FTTH Fiber Optic Cable Bow Type Drop Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: ISO9001,ISO9001/CE/RoHS
Product Name: 1 Core GJYXCH FTTH Drop Cable
Fiber Type: G657A2,G652D
Application: FTTH FTTB FTTX Network,indoor/outdoor,Telecom
Fiber Count: Capacity 1-4fibers
Material: LSZH Jacket
Color: Black/white
Type: Butterfly Drop
High Light:

GJYXCH FTTH Fiber Optic Cable

,

FTTH Fiber Optic Cable Bow Type

,

GJYXCH Bow Type Drop Cable
Basic Infomation
Place of Origin: China
Brand Name: Aitong
Model Number: GJYXCH
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5-8 Days
Payment Terms: L/C, D/A, D/P, T/T, T/T
Supply Ability: 100KM/Day
Product Description

1 core GJYXCH bow-type drop cable Black FTTH Fiber Optic Cable



Description

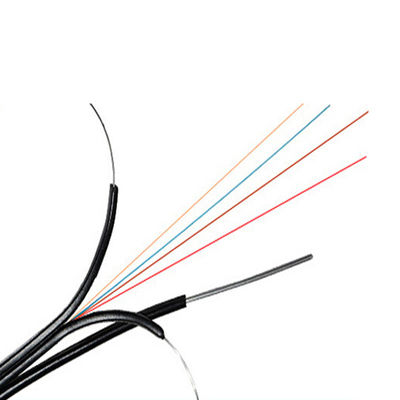

The GJYXCH FTTH optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.

Characteristics

1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3. Single steel wire as the additional strength member ensures good performance of tensile strengh.
4. Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
6. Low smoke,zero halogen and flame retardant sheath.


Features



1. Compact structure of protable, convenient for indoor wiring.

2. Excellent resistance to lateral pressure protection design.

3. Soft, flexible, easy to splice, and high practicability.

4. Environmental protection. Low smoke, zero alogen and flame retardant sheath.



Applications



1. Used in indoor outdoor cabling,especially used for FTTH.
2. Used as access building cable.



Cable Parametres

Model No. Fiber count (core) Cable diametre (mm) Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N) Bending Radius
Static/Dynamic
(mm)
GJYXCH 1 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 4 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30



Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5



1 Core GJYXCH Black FTTH Fiber Optic Cable Bow Type Drop Cable





We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14
