4P Twisted Pair Blue Cat6 Shielded Cable 305m Indoor 0.52mm To 0.58mm

50 box
MOQ
Negotiable
Price
4P Twisted Pair Blue Cat6 Shielded Cable 305m Indoor 0.52mm To 0.58mm
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Conductors: 8
Insulation: PVC PE HDPE
Conductor Material: Bare Copper / Copper Clad Aluminum
Cable Length: As Customer's Request
Item: CAT6 Lan Cable
Package: 305meters Per Box
Packing: Pull Spool ,37*37*30CM
Length: 305m/Pull Box
High Light:

Blue cat6 shielded cable 305m

,

cat 6 indoor cable 0.52mm

,

305m cat 6 cable 0.58mm

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: Unilever/ROSH/CE/ANATEL/ISO/CPR/ETL
Model Number: UTP CAT6
Payment & Shipping Terms
Packaging Details: 42cm*42cm*22cm
Delivery Time: about 7 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 box /Day
Product Description
UTP cat6 CAT6a 0.57mmBC 23AWG Blue 305m Indoor UTP network cable
Indoor 4P Twisted Pair 0.57mm Cat6 LAN Cable Blue 0.52-0.58mm Copper 305m/Pull Box
Product Details

Not all Ethernet cable is created equally. What's the difference, and how do you know which you should use? Let's look at the technical and physical differences in Ethernet cable categories to help us decide.

Ethernet cables are grouped into sequentially numbered categories (“ cat ”) based on different specifications; sometimes the category is updated with further clarification or testing standards (eg 5e, 6a). These categories are how we can easily know what type of cable we need for a specific application. Manufacturers are required to adhere to the standards, which makes our lives easier.

What are the differences between the categories and how can you know when to use unshielded, shielded, stranded, or solid cable? Keep reading f or “cat”-like enlightenment.



Cat6 network cable
Category Cat6,
Specifications 4 pairs
Conductor 0.57mm(23AWG),
Material Bare copper, Standard copper, CCA, CCS
Shield UTP(Unshielded Twisted Pair), FTP(Shielded Foil Twisted Pair), SFTP(Shielded Foil Twisted Pair)
Jacket PVC, LSZH
Color Grey, Blue,Negotiation
Meters 305mtr, 1000ft
Application PC, ADSL, network Module Plate, Wall Socket, etc

Technical differences
As the category number gets higher, so does the speed and Mhz of the wire. This is not a coincidence, because each category brings more stringent testing for eliminating crosstalk (XT) and adding isolation between the wires.

This does not mean your experiences have been the same. Physically you can use Cat-5 cable for 1 Gb speeds, and I have personally used cable longer than 100 meters, but because the standard has not been tested for it, you'll probably have mixed results. Just because you have Cat-6 cable, doesn't mean you have 1 Gb network speeds either. Every connection in your network needs to support the 1 Gb speed and in some cases, the connection will need to be told in software to use the available speed.

Category 5 cable was revised, and mostly replaced with, Category 5 Enhanced (Cat-5e) cable which did not change anything physically in the cable, but instead applied more stringent testing standards for crosstalk.

Category 6 was revised with Augmented Category 6 (Cat-6a) which provided testing for 500 Mhz communication (compared to Cat-6's 250 Mhz). The higher communication frequency eliminated alien crosstalk (AXT) which allows for longer range at 10 Gb/s .





Factory Common production specifications:(PAST 90m Fluke TEST)

Conductor: 0.52mm|0.54mm|0.56mm|0.57mm|0.574mm|0.58mm

Insulation:0.98mm|1.02mm|1.02mm|1.12mm

Diameter:

6.3mm(U/UTP)

6.7mm(F/UTP)|7.0mm|7.4mm

7.5mm(SF/UTP)|7.8mm

6.2*13mm(U/UTP Duplex)

7.0*14.5mm(F/UTPDuplex)

6.3*2.5mm(U/UTP Self Support)



Application
Mainly used in the wiring system betweenwork area correspondence leading-out terminal and distribution wiring frames connection.As well as used in the housing synthesis wiring system between user correspondence leading out terminal and patch pannel.

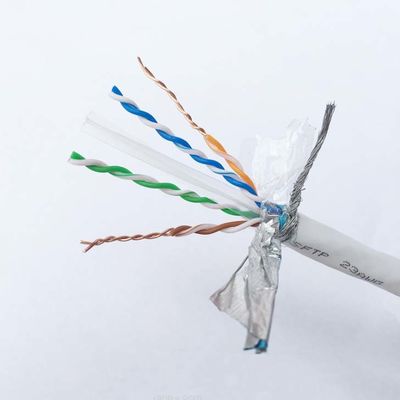

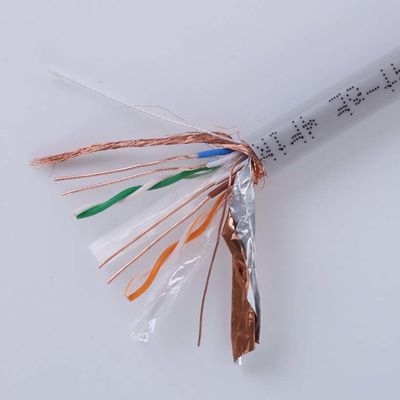

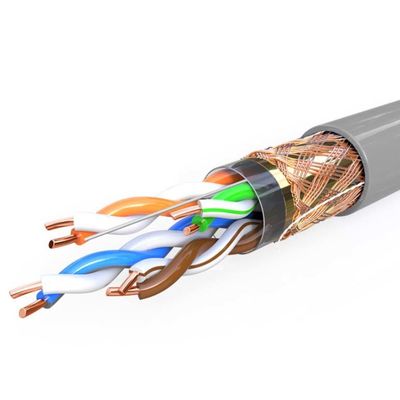

4P Twisted Pair Blue Cat6 Shielded Cable 305m Indoor 0.52mm To 0.58mm4P Twisted Pair Blue Cat6 Shielded Cable 305m Indoor 0.52mm To 0.58mm4P Twisted Pair Blue Cat6 Shielded Cable 305m Indoor 0.52mm To 0.58mm
