Description:
100% CERTIFIED SOLID BARE COPPER CONDUCTOR: With a higher conductivity and tensile strength -- 23AWG Solid Copper Conductors transmit faster while lasting the distance. For heavy traffic networks, and as a solid gaming ethernet cable cat6 - it just makes perfect sense.

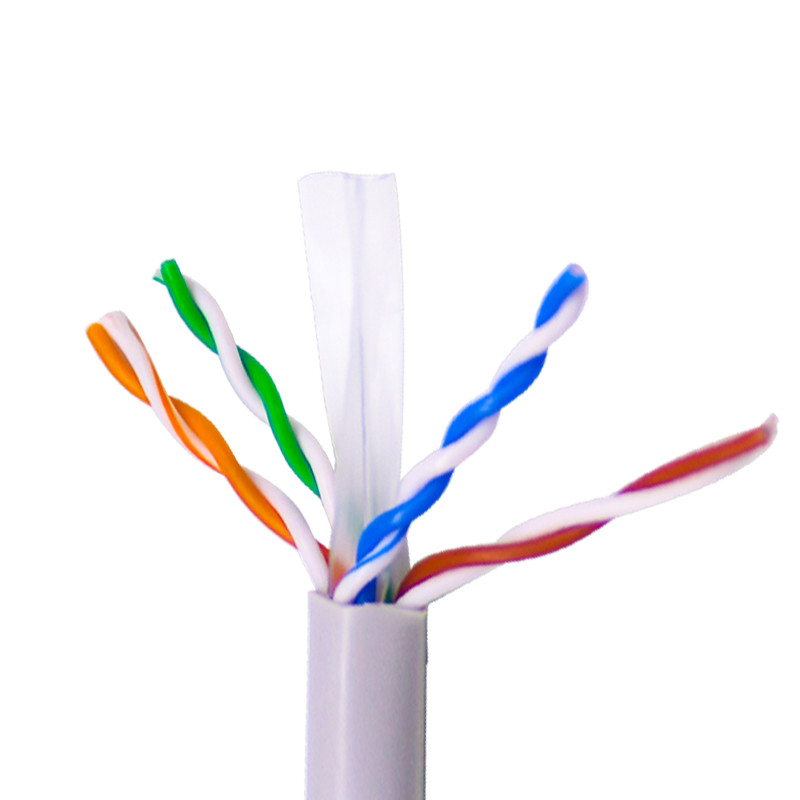

REDUCED CROSSTALK: Four twisted pairs with a PVC Cross Separator reduces noise for clean uninterrupted connection. This cross flexi-core makes for a more durable cable that won’t bend or break.
PERFORMANCE: While many Cat6 ethernet cables still max out at 250MHZ. AITONG Cable performs up to speeds of 550MHZ. It’s a 10 Gigabit Ethernet Cat 6 cable. The box performs well too! Rigid with splash proof coating, your ethernet cord is safe, tidy and damage free.
Specification:
Wire Core Material: Bare Copper Wire
Conductor Type: Solid
Conductor Size: 23AWG(0.54mm to 0.58mm)
Insulation Material: HDPE
Structure: 4 Unshielded Twisted Pair
Filling Compound: Non / Gel filled / Water blocking tap(Optional)
Shield Structure: Aluminium Foil Overall(Optional)
Sheath Material: PVC / LDPE / LSZH (customize)
Material Shape: Round Wire
Model: F/UTP, S/FTP, U/UTP (Optional)
Electrical characteristics:
Communicate rate: 83%
Insulated Resistance: ≥5000MΏ.km
Working temperatures: -20-75°C
Impedance: 93.8 ±15%Ω at 1 to 100MHz
Transmission Characteristic: Reference YD/T322-1996
Reference standard: YD/t1019-2001; UL758; UL1581; UL444; TIA/EIA-568; CSA C22.2 ;
ISO/IEC11801; (Performance and superior to the above standards)
| Item | Structure (mm) | Insulation thickness (mm) | Approx overall dia. (mm) |
| UTP CAT5E | 4x0.48 | 0.90 | 5.2 |
| UTP CAT5E | 4x0.50 | 0.91 | 5.3 |
| UTP CAT5E | 4x0.52 | 0.93 | 5.3 |
| FTP CAT5E | 4x0.48 | 0.92 | 6.4 |
| FTP CAT5E | 4x0.50 | 0.94 | 6.5 |
| FTP CAT5E | 4x0.52 | 0.96 | 6.5 |
| UTP CAT6 | 4x0.50 | 0.96 | 6.3 |
| UTP CAT6 | 4x0.55 | 1.01 | 6.4 |
| UTP CAT6 | 4x0.57 | 1.03 | 6.4 |
| FTP CAT6 | 4x0.50 | 0.98 | 7.3 |
| FTP CAT6 | 4x0.55 | 1.03 | 7.4 |
| FTP CAT6 | 4x0.57 | 1.05 | 7.4 |
