Customize Size 42U Server Rack Network Cabinet Ce Equipment Wall Mount

Negotiable
MOQ
Negotiable
Price
Customize Size 42U Server Rack Network Cabinet Ce Equipment Wall Mount
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Telecommunication
Color: Customized,Black
Material: High-quality Cold Rolled Steel
Warranty: 1 Year
Loading Capacity: Static Loading: 800kg(on The Adjustable Feet)
Surface Finish: Degreasing,Pickling,Phosphating,Powder Coated
High Light:

42u server cabinet

,

42u server rack Cabinet

,

42u server rack Wall Mount

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: Iso9001
Model Number: 4-42U
Payment & Shipping Terms
Packaging Details: Customized
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100
Product Description

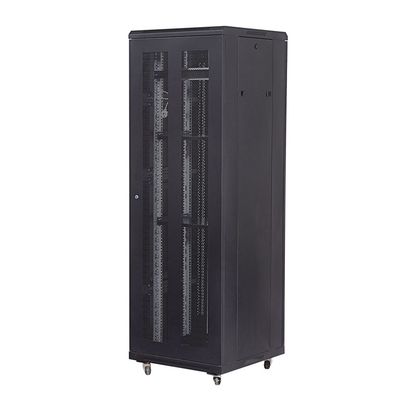

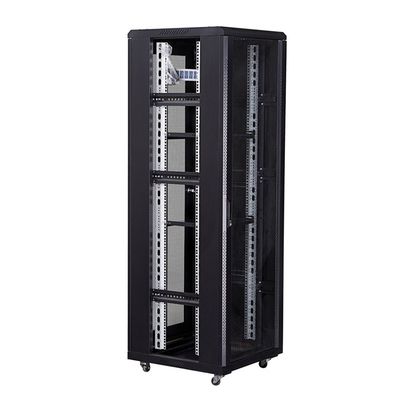

Customize Size 42 U Server Rack Network Cabinet Ce Equipment  Computer Cabinet Wall Mount



1. Aluminum profiled frame server cabinet, light weight and easy to transfer;

2. Tempered glass front door and vented rear door with excellent ventilation;

3. Removable side panels, with lock optional;

4. Adjustable cable entry on top and bottom cover;

5. Flat packing is available to save the container space





Main Structure



1. Steel rear doorCustomize Size 42U Server Rack Network Cabinet Ce Equipment Wall Mount

2. specer(for 800mm width)

3. Fan tray

4. Mounting profile

5. Blanking panel

6. Mounting angle

7. Bottom

8. Castor

9. Cable entry plate

10. Top

11. Side panel

12. Frame

13. Vertical Cable management

14. Front door

15. Fixed shelf

16. Feet













Main Dimension

Customize Size 42U Server Rack Network Cabinet Ce Equipment Wall Mount



Description

Product Features
Model WLG-04-42U
Material Type SPCC quality cold rolled steel
Thickness: Mounting profile 2.0mm,Others 1.2mm
Perforated Door, Glass Door for option
Loading Capacity Static loading: 800kgs(=1763lbs)
Degree of protection IP20
Dimension information 600*600*42U,600*800*42U,800*800*42U,800*1000*42U
Color Black(RAL 9004), White(RAL 7035) ,Grey(RAL 7032)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI
Standard
