Figure 8 Self Supporting Fiber Optic Cable Steel Armored Cable GYTC8S Aerial Cable

Figure 8 Self-Supporting Fiber Optic Cable Steel Armored Cable GYTC8S Aerial Cable

Description

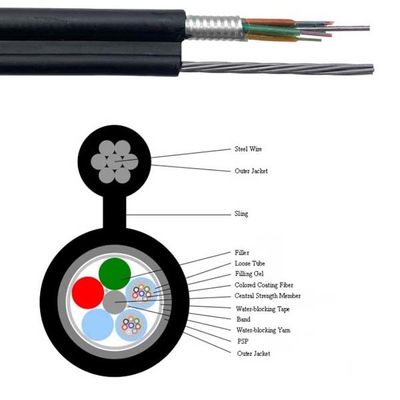

The structure of GYTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core (also non-metallic, such as FRP, etc.), and the loose tube (and filler rope) is twisted around the central reinforced core to form a compact circular cable core. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.

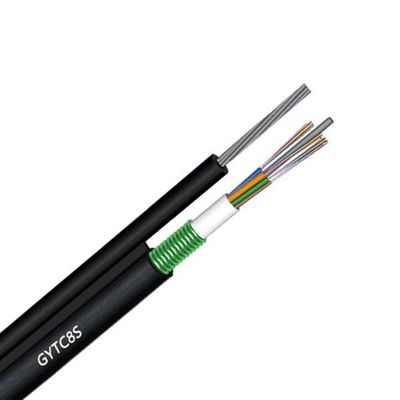

GYTC8S is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance. Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.

Product Standards

GYTC8S optical cable complies with YD/T1155-2011 and IEC60794-1 standards.

Features

1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit

2. Stable fiber excess length control

3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change

4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃

Technical data

Details

	Fiber Core 1. Corning/YOFC/FiberHome/Fujikura Fiber Core Options   2. Single Mode/Muli Mode Options   3. 12 different Colors Option, can do as your request
Armored PSP/APL Armored,.Plastic coated steel strip Increase the mechanical strength of the GYTC8S cable   Improve corrosion resistance   7*1.0mm Steel for Overhead, Aerial
	PE Outer Jacket Material High Quality New PE Material   1. Smooth appearance   2.Flame retardant   3.Corrosion protection   4.Long service life
