12Core Self Supporting Single Mode G657/G652D Armored Fiber Optic Cable With Two Steel
Description

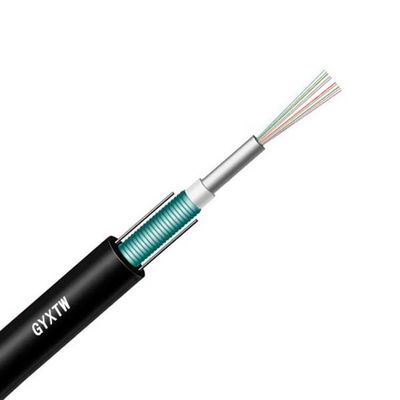

The 12core self supporting optic fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Performance characteristics
1. Excellent water blocking layer, with good anti-seepage ability
2. The outer sheath of steel tape is bonded with metal reinforcement, and the tensile performance is excellent
3. The central design of the beam tube minimizes the influence of the optical fiber on the anti-lateral force of the optical cable.
Application Scope
1. Adapted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Technical data
|
No. of cable
|
2~8
|
10~12
|
14~24
|
||
|
Fiber Model
|
G.652D
|
||||
|
Strength Member
|
Material
|
Steel Wire
|
|||
|
|
Diameter(±0.05)mm
|
0.5
|
0.5
|
0.5
|
|
|
Loose Tube
|
Material
|
PBT
|
|||
|
|
Diameter(±0.06)mm
|
2.1
|
2.4
|
2.8
|
|
|
|
Thickness(±0.03)mm
|
0.32
|
0.35
|
0.4
|
|
|
|
The Max.Core NO./Tube
|
8
|
12
|
24
|
|
|
Water Blocking layer(Material)
|
Water Blocking Tape
|
||||
|
Armoring
|
Material
|
Steel Strip
|
|||
|
|
Thickness(±0.03)mm
|
0.25
|
|||
|
Outer Sheath
|
Material
|
MDPE
|
|||
|
|
Thickness(±0.2)mm
|
2.0
|
|||
|
Cable Diameter(±0.2)mm
|
7.9
|
8.1
|
8.5
|
||
|
Cable Weight(±5)kg/km
|
60
|
63
|
68
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable -φ
|
|||
|
|
Under Maximum Tension
|
20.0×Cable -φ
|
|||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|||
|
|
Transport&Storage
|
-40~+70
|
|||
|
|
Operation
|
-40~+70
|
|||
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
Fiber : G652D
Structure
Workshop and Quality Test
Packing and Delivery
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
