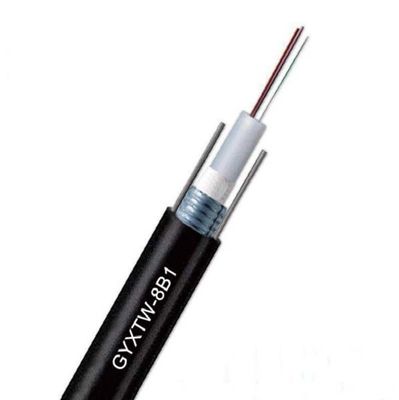

GYXTW 4 Strand Singlemode Armored Black Fiber Optic Cable for outdoor use
Description
Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.
Product Construction
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Armor:
Corrugated steel tape
Strength Member:
Embedded steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
Product Characteristics
1. Material of loose tube has good mechanical properties and temperature characteristics
2. Material of loose tube has good hydrolysis resistance and high strength
3. The tube is filled with special filler to provide critical protection for the fiber
4. Good lateral pressure resistance and softness
5. Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
6. The two parallel steel wires provides enough tensile strength
7. Small diameter, light weight, easy for laying
Features
Uni-tube gel-filled construction for superior fiber protection.
CST armorto protect cable from rodentattack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and moisture-resistantdesign
Applications
Installed in duct, direct burial.
FTTx.
Cable structure and parameter
| Fiber count |
Tube diameter |
Steel wire diameter |
Sheath thickness (nominal*) |
Overall diameter (nominal**) |
Weight (approx.) |
| mm | mm | mm | mm | kg/km | |
| 6 | 2.5 | 1.0 | 2.3 | 8.4 | 73 |
| 12 | 3.0 | 1.0 | 2.3 | 8.9 | 81 |
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
| Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
| Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
Application temperature range
| Operating temperature range | -40℃ to +60℃ |
| Storage / Transport temperature range | -40℃ to +60℃ |
| Installation temperature range | -20℃ to +50℃ |
