HDPE Air Blowing Fiber Optics Cables GCYFY 8 Core Microduct Fiber Cable

10KM
MOQ
Negotiate
Price
HDPE Air Blowing Fiber Optics Cables GCYFY 8 Core Microduct Fiber Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8cores GCYFY
Application: OUTDOOR
Certification: ISO9001
Number Of Conductors: ≥ 10
Fiber Type: G652D,G657A2,G657
Color: Usually Black Color,blue Or Others
Fiber Count: 2/4/6/8/12 Core
Length: 2KM
High Light:

HDPE Fiber Optics Cables

,

8Cores Fiber Optics Cables

,

8Cores Microduct Fiber Cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: GCYFY
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5-8 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100KM/Day
Product Description

GCYFY 8Cores HDPE Micro Duct Fully dry Air Blowing Fiber Optic Cable





Description



GCYFY layer twisted non-metallic cable is a loose tube made of high-modulus material made of 250μm single-mode or multi-mode fiber. The casing is filled with non-toxic and harmless waterproof compound. The center of the cable core is a non-metallic reinforcing core (FRP), and the loose tube (or filling rope) is formed around the center reinforcing core to form a compact circular core. A water-blocking yarn is placed outside the reinforcing core, and a black or colored high-density polyethylene (HDPE) sheath is formed into a cable.





Applications

Utilizing micro-tube resources, it is especially suitable for backbone networks, access networks, and fiber-to-the-home.



Features



1. Non-metallic structural design to prevent RF interference and electromagnetic interference

2. Especially designed tight cable structure to prevent casing retraction

3. The loose tube is filled with special grease to ensure the waterproof performance of the cable.

4. Has good softness

5. High fiber assembly density, small cable diameter and lightweight make it the best choice for air blowing





Technical data:



Fiber count Structure Fibers per tube Loose tube diameter(mm) CSM diameter/pad diameter(mm) The thickness of outer jacket(mm) Cable diameter(mm) Cable weight(kg/km)
2 1+5 2 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 20
4 1+5 4 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 20
6 1+5 6 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 20
8 1+5 4 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 20
12 1+5 6 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 20
18 1+5 6 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 21
24 1+5 6 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 21
30 1+5 6 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 21
36 1+6 6 1.4±0.1 1.5/1.5 0.55±0.1 5.4±0.5 25
48 1+5 12 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 22
60 1+5 12 1.4±0.1 1.2/1.2 0.55±0.1 5.1±0.5 22
72 1+6 12 1.4±0.1 1.8/1.8 0.55±0.1 5.7±0.5 29
84 1+7 12 1.4±0.1 2.2/2.2 0.55±0.1 6.1±0.5 34
96 1+8 12 1.4±0.1 2.3/2.3 0.55±0.1 6.2±0.5 37
108 1+9 12 1.4±0.1 2.0/2.9 0.55±0.1 6.8±0.5 41
120 1+10 12 1.4±0.1 2.0/3.4 0.55±0.1 7.3±0.5 47
132 1+11 12 1.4±0.1 2.0/3.7 0.55±0.1 7.6±0.5 51
144 1+12 12 1.4±0.1 2.0/4.2 0.55±0.1 8.1±0.5 57

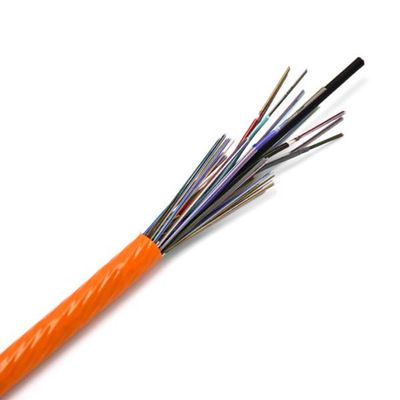

HDPE Air Blowing Fiber Optics Cables GCYFY 8 Core Microduct Fiber Cable



HDPE Air Blowing Fiber Optics Cables GCYFY 8 Core Microduct Fiber Cable HDPE Air Blowing Fiber Optics Cables GCYFY 8 Core Microduct Fiber Cable



Packaging & Shipping



Package Details:

Iron-wooden drum or fumugated wooden drum,normal wooden drum

Drum size can be designed,details will calculation for suitable for containers



Package:

Standard Wooden Drum With Protection
Standard reel length:2/3/4/5km/reel,other length is also available





FAQ



Q1: Is it all right to make customer's own brand name?
A: Yes,we accept OEM order.
Q2: Are you a manufactuer or trading company?
A: We are an old brand cable manufacturer with more than 31 years experience.
Q3: Can you do the design for us?
A: Yes,we can design cable according to your requirement.
Q4: How can I get a sample to check your quality?
A: We supply free sample for customers.
Q5: How long can I expect to get the sample?
A: Accoridng to your country.Usually we will sent out the sample within 5 days.
Q6: What are your main products?
A: Optical fiber, indoor and outdoor fiber optic cable, fiber optic equipment and accessories, and network cable.
Q7: What is your terms of delivery?
A: FOB, CIF.
Q8: What's the MOQ for your production?
A: 10km. But we accetp small trail order.
Q9: What's your payment term?
A: T/T, 30% in advance, the balance before delivery.
Q10: When can I get the price?
A: Within 24 hours.
Q11: Where is your company?
A: Located in Sichuan, Chian.
