CAT5e FTP Lan Cable Oxygen Free Copper Conductor Indoor PVC Jacket
▌ Product description
The outer layer of the FTP CAT5e shielded twisted pair is wrapped with aluminum to reduce radiation, but it cannot completely eliminate radiation. Shielded twisted pair cables are relatively more expensive and more difficult to install than unshielded twisted pair cables. Similar to coaxial cable, it must be equipped with special connectors and corresponding installation techniques that support the shielding function.
However, it has a higher transmission rate, which can reach 155mbps within 100m, which is higher than the corresponding UTP. FTP network cables usually support Ethernet LANs.

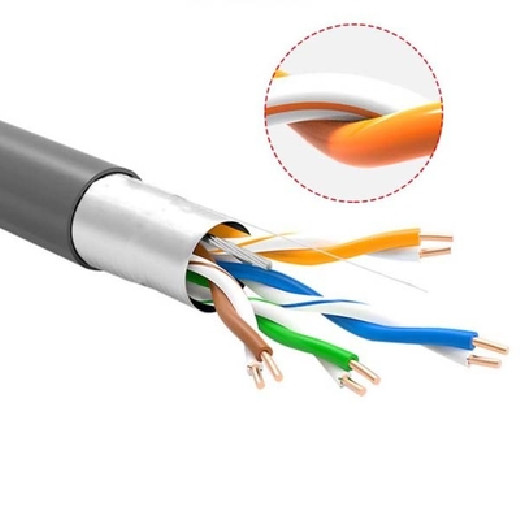

Cables are designed and manufactured with twisted-pair or multi-pair core wires with an integral foil shield wrapped around the assembly. Wrapping the core wires together and covering them with a foil shield helps reduce crosstalk and EMI.
▌Construction
| Installation resistance | >5000MΩ*Km |
| Rated temp | 75°C |
| DC Resistance unbalance (%) | max 2.5 |
| Pair to ground Capacitance Unbalance | 330 (pF/100m) |
| Impedance | 1-100MHz 100±15 (ohms) |
| CPR Rating | ECa |
| Dielectric strength | DC 2500V 2S |
| DC Resistance 20°C | ≤ 110 (Ohms/Km) |
▌Appliacation
▌Parameter
| STRUCTURE AWG | AWG | 24# (1/24) | |
| CONDUCTORS | Material | 24 | Solid Bare Copper |
| INSULATION | Material | ---- | HDPE |
| Diameter | mm | Ø 0.97+/-0.05 | |
| Average Thickness | mm | 0.25+/-0.05 | |
| SHIELDING 1 | Type | ---- | |
| ASSEMBLY | Direction | ---- | S |
| No. of Insulations | Pair | 4 | |
| SHIELDING 2 | Material | ---- | Al-Foil Screened |
| DRAIN WIRE | Shield | ---- | 0.40±0.008mm TC |
| JACKET | Material | ---- | PVC |
| Diameter | mm | Ø 5.3+/-0.3 | |
| Average Thickness | mm | 0.6+/-0.1 |
| FREQUENCY | RL (MIN) | IL (MAX) | DOP (MAX) | DELAY SKEW (MAX) | NEXT (MIN) | PSNEXT (MIN) | ACR-F (MIN) | PSACR-F (MIN) |
| (MHZ) | (dB) | (dB/100m) | (ns/100m) | (ns/100m) | (dB) | (dB) | (dB/100m) | (dB/100m) |
| 1 | 20.0 | 2.0 | 570 | 45 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 23.0 | 4.1 | 552 | 45 | 56.3 | 53.3 | 51.8 | 48.8 |
| 10 | 25.0 | 6.5 | 545 | 45 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 25.0 | 8.2 | 543 | 45 | 47.2 | 44.2 | 39.7 | 36.7 |
| 20 | 25.0 | 9.3 | 542 | 45 | 45.8 | 42.8 | 37.8 | 34.8 |
| 31.25 | 23.6 | 11.6 | 540 | 45 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 538 | 45 | 38.4 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22.0 | 537 | 45 | 35.3 | 32.3 | 32.3 | 20.8 |
▌Product mix
 |
|
▌Panking
| |
|
Cable weight | Gross weight | |||||
| 9.3kg | 10kg | |||||||
| Box size (CM) | Specifications | |||||||
| 21.5×35×35 | 305m/box | |||||||
▌Application scenario
|
|
|
|
| Network TV | Desktop computer | Notebook computer | Printer |
|
|
|
|
| Router | Set top box | Cabinet | Camera |
▌Frequently asked question (FAQ)
Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.
Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and quantity.
Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight fee.
Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.
Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.
Q: How long is the lead time?
— Usually it’s about 10-14 days.
