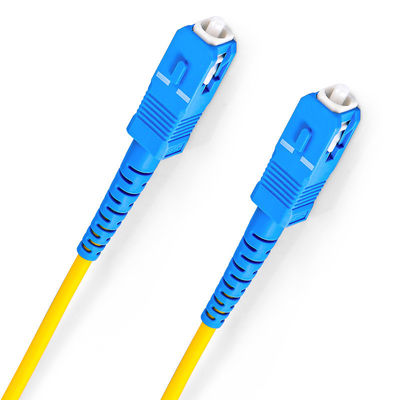

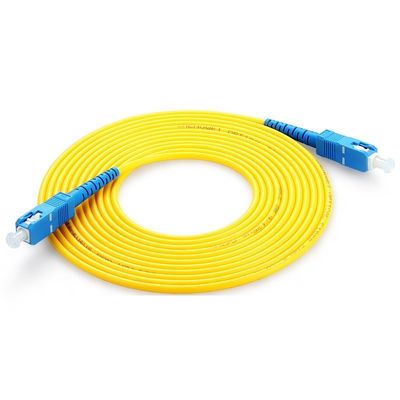

SC/FC Single Mode Fiber Jumpers 1 Core Fiber Tail 3 Meters
▌Product description
Optical fiber jumper patch cord (also known as optical fiber connector) refers to the fact that both ends of the optical cable are equipped with connector plugs, which are used to realize the active connection of the optical path; the plug with one end is called pigtail. Optical fiber patch cord (Optical Fiber Patch Cord / Cable) is similar to coaxial cable, except that there is no mesh shield. At the center is a glass core for light propagation. In multimode fiber, the diameter of the core is 50μm ~ 65μm, which is roughly equivalent to the thickness of human hair. The diameter of single-mode fiber core is 8μm ~ 10μm. The outside of the core is surrounded by a glass coating with a lower refractive index than the core to keep the optical fiber in the core. Outside is a thin layer of plastic jacket to protect the coating.
▌Feature
▌Applications
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
>40dB
|
>50dB
|
>60dB
|
/
|
|
Exchange
|
≤0.2dB
|
|||
|
Repeatability
|
≤0.2dB
|
|||
|
Service life
|
>1000times
|
|||
|
Tensile strength
|
>10kg
|
|||
|
Temperature range
|
-40℃ to +85℃
|
|||
|
Fiber Mode
|
Connector1Type
|
Connector2Type
|
Cable Type
|
Length of Fiber/Cable
|
|
S=Single mode
M=Multimode
P=PM fiber
X=others
|
SC=SC/PC
FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others |
SC=SC/PC
FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others |
1=0.9mm
2=2mm 3=3mm x=Others |
01=1.0m
02=2.0m 03=3.0m 04=4..0m xx=others |
▌Fiber optic connectors summary
 |
All standard connectors (SC, FC, LC, ST, SMA, E2000, MU) are available. Those connectors can be put on patchords, pigtails or components with single-mode (SM), multi-mode (MM), polarization maintaining (PM), polarized (PZ), Photonic-crystal (PCF), hollow-core (HC) or micro-structured fibers. A wide range of coating materials, with different dimensions (900 µm, 3 mm…) and cladding (stainless steel (SST), PVC, coated fiberglass…) is available. Optical fibers are supplied with special coating materials (aluminium, polyimide, gold,…) when they are intended to be used in a harsh or specific environment. The company also realizes fiber optic connectors testing. IDIL fibres Optiques proposes specific and high quality customized solutions. Do not hesitate to contact the company. |
▌Scene
|
|
|
| LAN |
Monitoring equipment |
Fiber to home |
|
|
|
| Communication products | Cable TV | Optical fiber Machine room allocation |
