Indoor generic cabling unshielded (UTP) category 305m CCA line 24awg standard Ethernet
▌ Product description
Cat 5e UTP CCA Cable is designed for high speed LANs including Gigabit Ethernet applications. The Cca LSZH sheath offers
excellent fire performance making this the ideal choice in public buildings and other high risk locations, exceeding the requirements of
BS6701:2016+A1:2017 for installation cables. When used with Cat5e panels and modules it gives the exceptional performance required for
transmission over all four pairs.
▌Construction
Connectix Cat Economically priced, unshielded multi-twisted pair cable used in Computer Networking & data transmission applications.

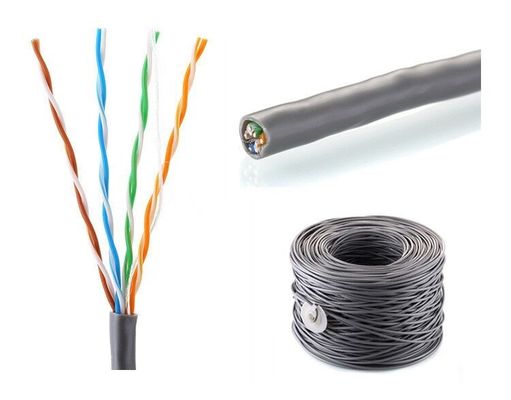

The cable consists of 4 pair Solid CCA insulated conductors, 0.50mm (24AWG), with PVC outer jacket in Grey.
▌Appliacation
▌Parameter
| Construction | Indoor Wiring Unshielded (UTP) 305m CCA Wire 24awg Standard |
| Impedance | 100 MHz +/- 15 Ω |
| Operating temperature (T-T) | -20˚C to +70˚C |
| Conforms to | IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC |
| Fire Rating | Cca s1a , d1 , a1 |
| Inner Conductor | 24 AWG plain copper |
| Insulation | High density polyethylene |
| Colour Code | Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White |
| Jacket | FR-LSZH |
| Overall Diameter | 5.4 +/- 0.4 mm |
| Min. Bending Radius Installation | 44mm |
| Min. Bending Radius Installed | 22mm |
| DC Resistance | < 9.4 Ω/100 m |
| Velocity Ratio | 69% |
| Installation temperature (T-T) | 0˚C to +50˚C |
| DC Resistance | < 9.4 Ω /100 m |
| Velocity Ratio | 69% |
| Operating Temperature Range | -20 ̊C to +70 ̊C |
| Installation Temperature Range | 0 ̊C to +50 ̊C |
| Transfer Impedance (mΩ/m) | 1 MHz 10 MHz 30 MHz 1 00MHz |
Product Specifications
| Conforms to | IEEE 802.3:1OBase-T.1OOBase-T, 10OO Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC, Cenelec EN5O173 |
| Fire Rating | 24 AWG plain copper |
| lnner Conductor | High density polyethylene |
| Construction | 4 twisted pairs cabled together |
| Colour Code | Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White |
| Sheath | FR-LSZH |
| RAL Colour | Green -6018 |
| Overall Diameter | 5.4+/-0.4 mm |
| Min. BendingRadius lnstallation | 44 mm |
| Min. BendingRadius Installed | 22 mm |
▌Product mix
 |
|
▌Panking
| |
|
Cable weight | Gross weight | |||||
| 9.3kg | 10kg | |||||||
| Box size (CM) | Specifications | |||||||
| 21.5×35×35 | 305m/box | |||||||
▌Application scenario
|
|
|
|
| Network TV | Desktop computer | Notebook computer | Printer |
|
|
|
|
| Router | Set top box | Cabinet | Camera |
▌Frequently asked question (FAQ)
Q:Are you a cable and wire manufacturer?
—Yes, we are a professional wire and cable manufacturer.
Q: Can you offer a discount on cables?
—The price is negotiable according to the specification and quantity.
Q: Can you offer FREE samples?
—Yes,FREE samples are available, you just take care of the freight fee.
Q: What about your MOQ?
—Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.
Q: Do you accept customize cables?
—Yes, we are more than happy to make OEM and ODM for you.
Q:How long is the lead time?
—Usually it’s about 10-14 days.
