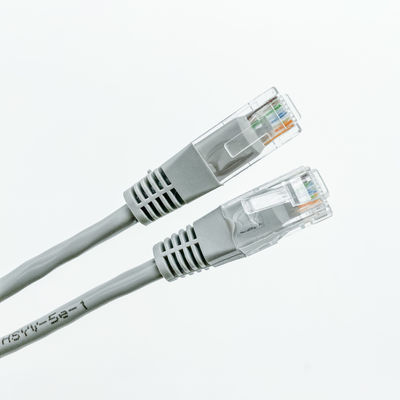

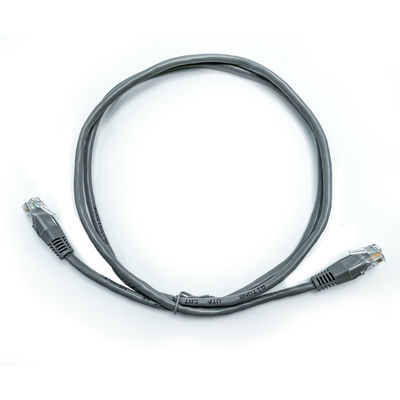

UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable

Communication
MOQ
Communication
Price
UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Networking
Shielding Type: OEM/ODM
Cable Type: CAT 5E
Certification: FLUKE/CE/RoHS/ISO9001/Reach
Color: Black White Customized
Conductor: 24AWG
Connect: RJ45 8P8C
Model Number: CAT 5E UTP
Length: 5m/customized
Number Of Conductors: 8
Place Of Origin: Sichuan, China
ShieldShielding Type: UTP
High Light:

CCA CAT5e Patch Cord

,

5M 350 mhz ethernet cable

,

350mhz patch cord 5m

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: CAT 5E-UTP-Patch cord
Payment & Shipping Terms
Packaging Details: 20X20X10cm Bagged
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 piece day
Product Description

Cat.5E UTP CCA 24AWG 5M Patch Cord cat5e patch cord



▌ Product introduction



When Cat-5e super class 5 network cable Ethernet uses twisted pair as the transmission medium, it only needs 2 pairs (4-core) wires to complete the signal transmission and reception. There are three standards in Fast Ethernet using twisted pair as transmission medium: 100base TX, 100base-t2 and 100base-t4. Among them, 100base-t4 standard requires all 4 pairs of wires for signal transmission, and the other two standards require only 2 pairs of wires. The 100base TX standard is the most popular in Fast Ethernet. In the American cable standard (AWG), category 3, category 4, category 5 and super category 5 twisted pairs are defined as 4 pairs. In Gigabit Ethernet, all 4 pairs of wires are required for communication. Therefore, there should be 4 pairs of wires in the standard category 5 cables.





characteristic



◆ Effective structure can reduce interference

◆ Gold plated contacts provide high connection quality

◆ Plug with twisted protective pin, ultra-thin snake free design

◆ Tensile release, standard test

◆ F / UTP certification up to 350 MHz, EIA / TIA 4 compliant





parameter



Type CAT5E UTP patch Ethernet LAN Cable
Data transfer rate 100Mbps
Conductor material oxygen-free copper
Transmission frequencies 100MHz
Facing material PVC
length 0.5m~40m/OEM
Standard ANSI/EIA/TIA-568B
Overall Outside Diameter 6.0mm
Shielding UTP
Operating temperature -20℃~+60℃
AWG 24/26AWG strand wire
Bending radius 4 times cable diameter



Item No 1 2
Cable type UTP CAT5E FTP CAT5E
Conductor Diameter(mm) 0.505±0.005 0.515±0.005
Material Bare Copper/CCA Bare copper /CCA
Type Solid Solid
Dielectric(Insulation) Diameter(mm) 0.91±0.01 1.00±0.02
Material PE PE
colors -
Pair 1 : Blue,White / Blue
Pair 2 : Orange,White / Orange
Pair 3 : Green,White / Green
Pair 4 : Brown,White / Brown
Shielding Material - Aluminium+ foil +Tinned copper drain wire
Coverage - 100%
Jacket(sheath) Diameter(mm) 5.1±0.2 5.6±0.2
Thickness(mm) 0.55±0.05 0.55±0.05
Material Flame retardant PVC/PE PE/PVC
colors CUSTOMIZED CUSTOMIZED
Number of Pairs 4pairs 4pairs
Length(m) 305 305
package 305M/Roll in Box 305M/Roll in Box
Dimensions Box Size(mm) 34x34x21 42x42x21
CBM/Box 0.024 0.038
Net Weight (kgs/box) 9 12
Gross Weight (kgs/box) 10 13
Electrical characteristics
Attenuation (100MHz dB/100m) ≤22.0 ≤22.0
NEXT (100MHz dB/100m) ≥35.3 ≥35.3
ELFEXT (100MHz dB/100m) ≥23.8 ≥23.8
RL (100MHz dB/100m) ≥20.11 ≥20.11
Impedance (ohms ) 100±15 100±15
Operating Temperature Range(℃) -20 to 75 -20 to 70



Application scenario



CAT5e network jumper is mainly used for data transmission at 1000Mbps rate. It has the characteristics of small attenuation, less crosstalk and smaller delay error. The fast (FS) CAT5e network jumper can support the transmission rate of up to 10Gbps Ethernet when the external crosstalk is very small. It can be used for network connection, cabling engineering, termination between equipment or horizontal subsystems, and connection between equipment port and modular jumper system. Such as LAN interface between telecom broadband ADSL modem and wireless router, router, switch, hub, firewall and other equipment, network card interface of computer, etc.







UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable



Application scenario



Cat 5 network cable is composed of multiple pairs of twisted pairs and a plastic sheath. With small attenuation and less crosstalk,It has higher anti attenuation ability and greatly improves the performance. Many performance parameters. Near end crosstalk, attenuation crosstalk ratio and return loss are improved.It can be used for network connection, cabling engineering, termination between equipment or horizontal subsystems, and connection between equipment ports and modular jumper system. Such as LAN interface between telecom broadband ADSL modem and wireless router, router, switch, hub, firewall and other equipment, computer network card interface, etc.





UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable

 UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable  UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable  UTP CCA 24AWG CAT5e Patch Cord 5M 350 Mhz Ethernet Cable
office Family Internet Bar The server





Special note



In the whole network wiring, a kind of wiring method is used, but both ends have RJ-45 plug network connection, whether it is the end connection mode A, or the end connection mode B, in the network all are common. The order of twisted pair is corresponding to the pin number of the RJ45 head.
10M Ethernet wiring uses 1, 2, 3, 6-numbered cores to transmit data, and 100M Ethernet wiring uses 4, 5, 7, 8-numbered cores to transmit data. Why do we now use 4 pairs of (8 core) twisted pair? This is mainly to adapt to more scope of use, without changing the infrastructure, can meet a wide range of user equipment under the premise of the network wiring requirements. For example, we can use one pair of twisted pair to achieve voice communication.
The provisions of 100BASE-T4 RJ-45 for twisted pair wire netting are as follows:
1, 2 for sending, 3, 6 for reception, 4, 5, 7 and 8 are two-way lines.
The 1 and 2 lines must be twisted pair, 3, 6 twisted pair, 4, 5 twisted pair, 7 and 8 twisted pairs.

There are two standards for the net crystal head, the standards are TIA/EIA 568B and TIA/EIA 568A respectively. First, the crystal head will have the crystal head with the side of the card downward, the side of copper face upward, one side of the open side toward their own body, from left to right to sort to 12345678, the following is TIA/EIA 568B and TIA/EIA 568Av line sequence (priority selection 568B line connection):
TIA/EIA-568B: 1, white orange, 2, orange, 3, white green, 4, blue, 5, white, blue, 6, green, 7, white brown, 8, brown.
TIA/EIA-568A: 1, white green, 2, green, 3, white orange, 4, blue, 5, white, blue, 6, orange, 7, white brown, 8, brown.
