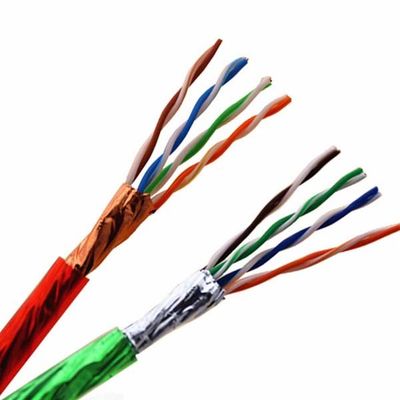

Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed

100 winding box
MOQ
Communication
Price
Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Bare Copper Core PE / PVC Sheathed Outdoor 305m FTP CAT5e LAN Cable
Model Number: CAT5e-FTP-4P
Number Of Conductors: 8
Conductor Dimension:: 24AWG
Jacket Color: Blue / Black / Custom
Certification: ISO9001
Packing Details: 305 M / Winding Box
Term Of Payment: Letter Of Credit, Telegraphic Transfer
Supply Capacity: 50000 M / Day
High Light:

PVC FTP LAN Cable 305m

,

FTP LAN Cable CAT5e

,

305m FTP LAN Cable

Basic Infomation
Place of Origin: China
Brand Name: Aitong
Certification: ISO9001
Model Number: cat-5e-UTP
Payment & Shipping Terms
Packaging Details: 425mm*425mm*225mm
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 winding box day
Product Description

Bare copper core PE / PVC sheathed outdoor 305m FTP CAT5e LAN cable



 Product description



CAT5e of FTP type is mainly used for the wiring between the work area communication outgoing end and the distribution frame in the handover room in the building communication generic cabling system, and the wiring from the user communication outgoing end of the residential generic cabling system to the distribution frame. OEM customized production according to the requirements of different customers. Shape, PVC, color, conductor diameter, tightness, logo design, internal and external packaging design can meet all the following requirements.





Construction

  • Conductor: solid oxygen free copper, Φ 0.5mm ± 0.01mm.
  • Insulation: new HDPE, Φ 0.91 ± 0.05mm.
  • Shielding layer: overall shielding (aluminum foil).
  • Outer sheath: brand new PVC or LSZH fuel with low smoke and halogen-free resistance.
  • Line pair chromatography: White / Blue & Blue White / Orange & Orange White / Green & Green White / Brown & Brown.
  • Pairs of wires: 8-core 4-Pair twisted pair.



Appliacation

  • Ethernet;10 Base-TX;ATM; Trunk Cabling;
  • Widely apply to network wiring structure and transmission media,such as audio,video,digital comm unication, message .
  • It commonly uses for connecting computers with other Ethernet devicessuch as, DSL/Cable Modem hubs, switches, routers, Etc​





▌Parameter



  STRUCTURE AWG AWG 24# (1/24)
CONDUCTORS Material 24 Solid Bare Copper
INSULATION Material ---- HDPE
Diameter mm Ø 0.97+/-0.05
Average Thickness mm 0.25+/-0.05
SHIELDING 1 Type ----
ASSEMBLY Direction ---- S
No. of Insulations Pair 4
SHIELDING 2 Material ---- Al-Foil Screened
DRAIN WIRE Shield ---- 0.40±0.008mm TC
JACKET Material ---- PVC
Diameter mm Ø 5.3+/-0.3
Average Thickness mm 0.6+/-0.1



FREQUENCY RL (MIN) IL (MAX) DOP (MAX) DELAY SKEW (MAX) NEXT (MIN) PSNEXT (MIN) ACR-F (MIN) PSACR-F (MIN)
(MHZ) (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2.0 570 45 65.3 62.3 63.8 60.8
4 23.0 4.1 552 45 56.3 53.3 51.8 48.8
10 25.0 6.5 545 45 50.3 47.3 43.8 40.8
16 25.0 8.2 543 45 47.2 44.2 39.7 36.7
20 25.0 9.3 542 45 45.8 42.8 37.8 34.8
31.25 23.6 11.6 540 45 42.9 39.9 33.9 30.9
62.5 21.5 17.0 538 45 38.4 35.4 27.9 24.9
100 20.1 22.0 537 45 35.3 32.3 32.3 20.8





Product mix



Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed





Panking



 Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC SheathedBare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed  Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Cable weight Gross weight
9.3kg 10kg
Box size (CM) Specifications
21.5×35×35 305m/box



Application scenario



Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed
Network TV Desktop computer Notebook computer Printer
Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed Bare Copper Core Outdoor 305m FTP LAN Cable CAT5e PE / PVC Sheathed
Router Set top box Cabinet Camera



Frequently asked question (FAQ)



Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.

Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and quantity.

Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight fee.

Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.

Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.

Q: How long is the lead time?
— Usually it’s about 10-14 days.
