▌Description
Connectix Cat
CAT5e SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 100 Mhz. Tinned Copper gives Protection against EMI and avoid signal loss with Higher Mechanical protection.This cable well exceeds the requirements of TIA/EIA-568.C.2.
• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
• Compliant with RoHS 2.0.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
•conductor with less resistance, and better electrical properties and transmission performance.
▌Construction
Connectix Cat
Advantages:
Humanized upgrade design
Newly press the jacket to reduce the force of the thumb,soft touch, fine care of your thumb
High quality green PVC outside
Outside the use of high-quality environmentally friendly PVCmaterials, wear-resistant, anti-oil, effectively enhance the service life of wire, line soft and hard moderate, easy wiring
Fine workmanship
Precision mechanical suppression 8P8C crystal head, line body and crystal head injection molding, so that the core and contact closely fit, solid pull-pull, plus humanized shrapnel protection design, easy plug operation at the same time,effectively prevent the transparent shrapnel damage
▌Parameter
| onstruction | Indoor generic cabling (FTP) category 305m CCA line 24awg standard Ethernet Cat5e Lan cable |
| Operating temperature (T-T) | -20˚C to +70˚C |
| Conforms to | IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC |
| Fire Rating | Cca,s1.d0,a1 |
| Inner Conductor | 24 AWG plain copper |
| Insulation | High density polyethylene |
| Colour Code | Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White |
| Jacket | FR-LSZH |
| Overall Diameter | 5.4 +/- 0.4 mm |
| Min. Bending Radius Installation | 44mm |
| Min. Bending Radius Installed | 22mm |
| DC Resistance | < 9.4 Ω/100 m |
| Velocity Ratio | 69% |
| Installation temperature (T-T) | 0˚C to +50˚C |
Mechanical Properties
| Bending radius | Installation | 8 x D |
| Installed | 4 x D | |
| Temperature range | During operation | -40°C to + 85°C |
| During installation | -15°C to + 50°C | |
| Fire load | 4 pair | 515 MJ/km |
| Maximum tensile load | During operation | No load |
| During installation | 130 N |
Electrical Properties at 20°C
| DC loop resistance | £ 158 Ω/km | |
| Resistance unbalance | £ 2% | |
| Insulation resistance | (500 V) | ³ 5000 MΩxkm |
| Capacitance | at 800 Hz | Nom. 43 nF/km |
| Capacitance unbalance | (pair to ground) | £ 1500 pF/km |
| Mean Characteristic impedance | @ 100 MHz) | 100 ± 5 Ω |
| Nominal velocity of propagation | 0,75c | |
| Propagation delay | £ 450 ns/100 m | |
| Delay skew | £ 15 ns/100 m | |
| Transfer impedance | at 1 MHz | £ 10 mΩ /m |
| at 10 MHz | £ 8 mΩ /m | |
| at 30 MHz | £ 10 mΩ /m | |
| Coupling attenuation | ³ 85 dB | |
| Segregation classification | Acc. to EN 50174-2 | “D” |
▌Nominal Transmission characteristics at 20°C
|
F
(MHz) |
Attenuation
(dB/100m) |
NEXT
(dB) |
ACR
(dB/100m) |
Return loss
(dB) |
PS-NEXT
(dB) |
PS-ACR
(dB/100m) |
ELFEXT
(dB/100m) |
PS-ELFEXT
(dB/100m) |
| 1 | 2,1 | 90 | 88 | 87 | 85 | 85 | 82 | |
| 4 | 4,0 | 90 | 86 | 27 | 87 | 83 | 85 | 82 |
| 10 | 6,3 | 90 | 84 | 30 | 87 | 81 | 79 | 76 |
| 16 | 8,0 | 90 | 82 | 30 | 87 | 79 | 75 | 72 |
| 20 | 9,0 | 90 | 81 | 30 | 87 | 78 | 73 | 70 |
| 31.25 | 11,4 | 90 | 79 | 30 | 87 | 76 | 69 | 66 |
| 62.50 | 16,5 | 86 | 70 | 30 | 83 | 67 | 63 | 60 |
| 100 | 21,3 | 83 | 62 | 30 | 80 | 59 | 59 | 56 |
| 155.00 | 24,2 | 81 | 57 | 26 | 78 | 54 | 57 | 54 |
| 200.00 | 31,5 | 78 | 47 | 25 | 75 | 44 | 53 | 50 |
| 250.00 | 35,8 | 77 | 41 | 25 | 74 | 38 | 51 | 48 |
| 300.00 | 47,1 | 73 | 26 | 23 | 70 | 23 | 47 | 44 |
| 600.00 | 60,1 | 71 | 11 | 20 | 68 | 8 | 44 | 41 |
▌Product mix
|
|
▌Panking
| |
|
Cable weight | Gross weight | |||||
| 9.3kg | 10kg | |||||||

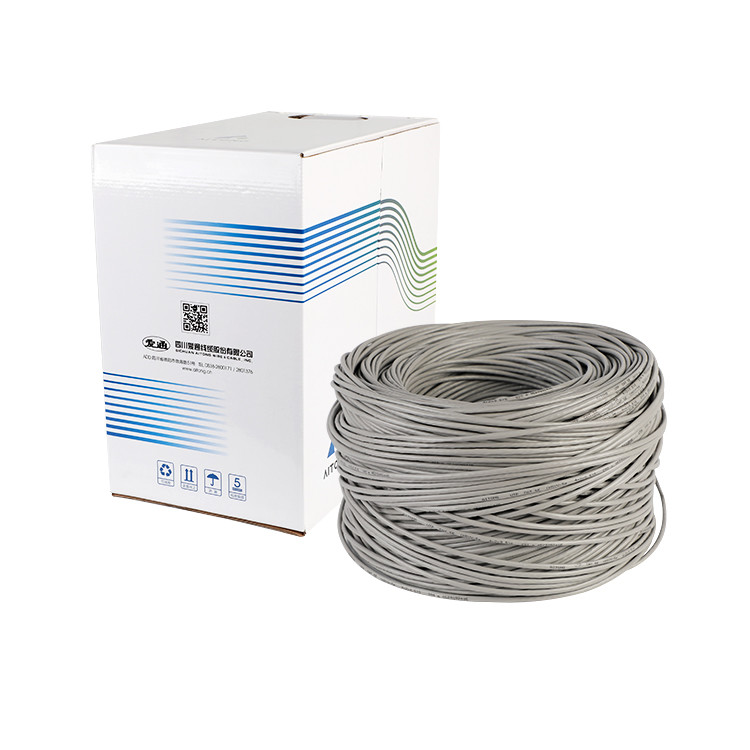

| Box size (CM) | Specifications | |||||||
| 21.5×35×35 | 305m/box | |||||||
▌Application scenario
|
|
|
|
| Network TV | Desktop computer | Notebook computer | Printer |
|
|
|
|
| Router | Set top box | Cabinet | Camera |
▌Frequently asked question (FAQ)
Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.
Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and quantity.
Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight fee.
Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.
Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.
Q: How long is the lead time?
— Usually it’s about 10-14 days.
