CAT6 unshielded Gigabit copper clad aluminum finished network cable
Features and Benefits
• Designed and engineered with precision balance to offer ultimate headroom • High-end optimized performance to support the most bandwidth-intense applications, average 1Gbps and up to 10 Gbps. • Performance guaranteed to 250 MHz, highest up to 550 MHz.
Applications
• IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T(less than 37m), POE & POE+ (up to IEEE802.3at Class 4, only for Performance Version)
• ANSI/TIA 854: 1000 BASE-TX • CDDI, Token Ring, ATM • Digital Video • Broadband and Baseband Analog Video
Standard Compliances
• ISO/IEC 11801 • TIA/EIA-568-C.2 Category 6 • ANSI/ICEA S-90-661 Category 6 • NEMA WC63.1 Category 6 • RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC
• UL 444
A new performance evaluation index is determined for Category 6 cables. Single core bare copper with specification of 23AWG is used as the conductor, polyethylene polymer material is used as the insulator, and the sheath material is flame retardant polymer material with color of gray; The twisted pair meets the requirements of international specifications (ISO / IEC), and its electrical characteristics exceed the requirements of class VI (cat. 6) international specifications. The cross isolation of the cable center ensures the next performance and reasonable construction bending radius. LSZH: stands for "low smoke zero halogen". Low smoke halogen-free material can meet the requirements of safety and environmental protection.
Parameter
|
Specifications
|
Performance Version
|
Regular Version
|
|
Conductor
|
24AWG
(Customizable)
|
24AWG
(Customizable)
|
|
Conductor Structure
|
Stranded
|
Stranded
|
|
Conductor Material
|
99.997% Bare Copper
|
CCA
|
|
Shield
|
U/UTP (F/UTP or S/FTP)
|
|
|
Insulation
|
High Density Polyethylene (HDPE)
|
|
|
Color Code
|
• Pair 1: Blue-White/Blue
• Pair 2: Orange-White/Orange
• Pair 3: Green-White/Green
• Pair 4: Brown-White/Brown
|
|
|
Separator
|
Cross-web (High Density Polyethylene)
|
|
|
Rip Cord
|
Applied longitudinally under jacket
|
|
|
Jacket
|
Flame Resistant PVC (PE or LSZH)
|
|
|
Connector
|
RJ45 UTP Gold-plated Contact
|
|
|
Conector Color
|
Colorless transparent or Blue transparent
|
|
|
Mold Design
|
Snagless Cable Boot or Non-snagless Cable Boot without tab
|
|
|
Flame Rate
|
CM (suitable for in-wall installation)
|
|
|
Color
|
Black, White, Gray, Blue
|
|
|
Maximum Pulling Force
|
20 KG
|
18KG
|
|
Function Distance
|
0-100m
|
0-50m
|
|
Temperature Rating (˚C)
Installation
Operation
|
0 to +60
-30-75
|
|
|
Bandwidth:
Average
Maximum
|
1 Gigabit
10 Gigabit (under 37m)
|
1 Gigabit
5 Gigabit (under 10m)
|
|
Frequency:
Average
Maxinum
|
0-250 MHz
0-550 MHz
|
0-250 MHz
0-350 MHz
|

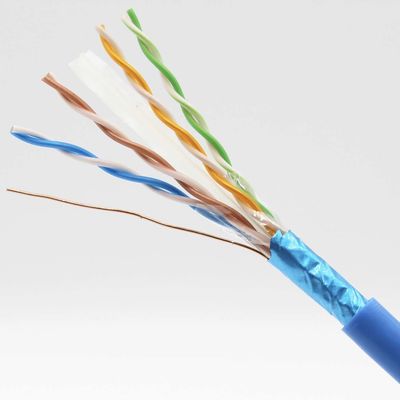

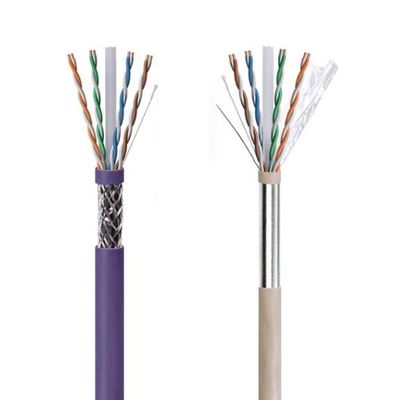

Detail Images
