GYFTA 53 Core Fiber Cable Cctv Cable Indoor Fiber Optic Cable

▌Product Description

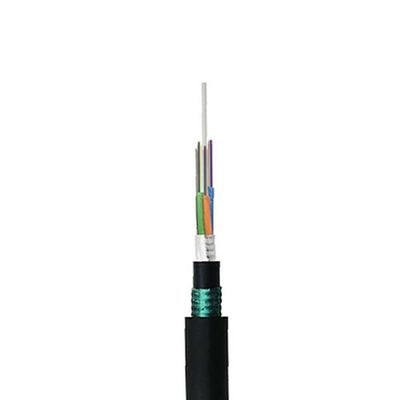

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. At the center of the cable core is a metal reinforcement core, which, for certain numbers of fibers, is coated with a layer of polyethylene. The loose casing is stranded around the central strengthening core to form a compact and circular cable core, and the gaps in the cable core are filled with water-blocking filler. After the plastic-aluminum strip is longitudinally coated, a layer of polyethylene inner sheath is extruded. After the plastic-steel strip is longitudinally coated on both sides, a polyethylene sheath is extruded to form the cable.

▌Products Features

• The center reinforcement makes the cable have good compressive performance and protects the fiber single steel wire center reinforcement core
• Low-attenuation,High flexibility
• No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.

▌Advantages

1. Strong practicability
2. High mechanical strength, anti-interference, non-conductive and anti-corrosion
3. Communication cables are reinforced with pure imported high-strength FRP fiber
4. Strong composite plastics

▌Fiber Code

▌Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥200MHZ·km
	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm





▌Application scenario







▌FAQ

1. Are you the real manufacturer? Yes. We are the real manufacturer with more than 110 staff. 2. How many years have you been in the field of fiber optics ? Since 1998. 3. Can you accept small order? Yes, small order is available .We support new project of our customers as we know business is always from small order. 4. What is your warranty period? 25 years for fiber optic cable 5. Which kind of certification you have ? ISO9001, SGS, RoHs. 6. What is your delivery time? Usually within 2-3 working days 7. What about your annual production capacity? Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM; FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year; Patch Cord/Pigtails, it is 12,400,000 Pieces per year. 8. What is your payment way? T/T, L/C, Western Union and Paypal. 9. Can you supply customized products and logo? Yes. We supply OEM&ODM service. You can send us your drawing.
