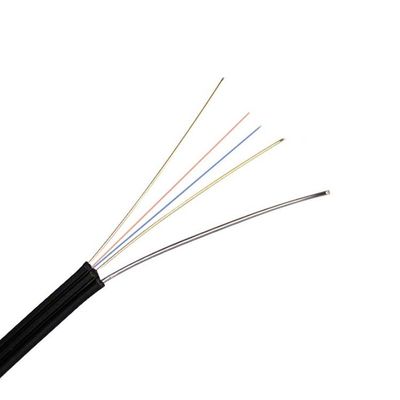

National Standard Signal Grade Optical Drop Cable 1 Core GJYXFCH-1B

10KM
MOQ
Negotiate
Price
National Standard Signal Grade Optical Drop Cable 1 Core GJYXFCH-1B
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: ISO9001,ISO9001/CE/RoHS
Product Name: 1 Core GJYXFCH-1B FTTH Drop Cable
Fiber Type: G657A2,G652D
Application: FTTH FTTB FTTX Network,indoor/outdoor,Telecom
Reinforcer: Non-metallic FRP
Material: LSZH Jacket
Color: Black/white
Type: Butterfly Drop
High Light:

National optical drop cable

,

optical drop cable 1 Core

,

National fiber optic 1 core
Basic Infomation
Place of Origin: China
Brand Name: Aitong
Model Number: GJYXFCH
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5-8 Days
Payment Terms: L/C, D/A, D/P, T/T, T/T
Supply Ability: 100KM/Day
Product Description

National Standard Signal Grade GJYXFCH-1B  Outdoor 1 Core Skin Cable Single Mode Optical Fiber Cable





Description

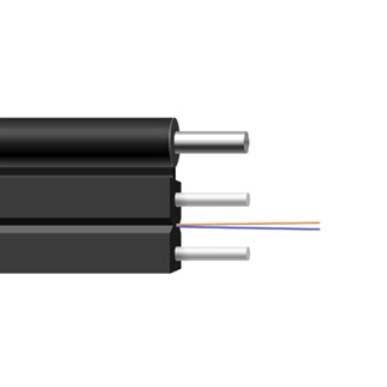

The GJYXCH FTTH optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.

Characteristics
  • Indoor metal strengthening core single core GJXH 1 b6a, indoor metal strengthening core double core b6a GJXH 2
  • Indoor single-core GJXFH 1B6a, indoor single-core GJXFH2B6a, non-metallic strengthening core
  • Messenger outdoor metal strengthening core single core 1 b6a GJYXCH, messenger outdoor metal strengthening core single core b6a GJYXCH
  • Single steel wire as additional stiffener, to ensure the good tensile strength.
  • Simple structure, light weight, strong practicability.
  • Novel groove design, easy to peel and joining together, easy installation and maintenance.
  • Low smoke, zero halogen flame retardant sheath.

Features

  • Concave groove design
  • Easy to peel, easy to connect, make the work more simple, using G652 bending fiber core, long transmission distance, good stability
  • Concave groove design, easy to peel, convenient connection


Applications



1. Used in indoor outdoor cabling,especially used for FTTH.
2. Used as access building cable.



Cable Parametres

Model No. Fiber count (core) Cable diametre (mm) Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N) Bending Radius
Static/Dynamic
(mm)
GJYXCH 1 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 4 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30



Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5



National Standard Signal Grade Optical Drop Cable 1 Core GJYXFCH-1B





We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14
